Exhaust Gas Recirculation: Testing and Inspection

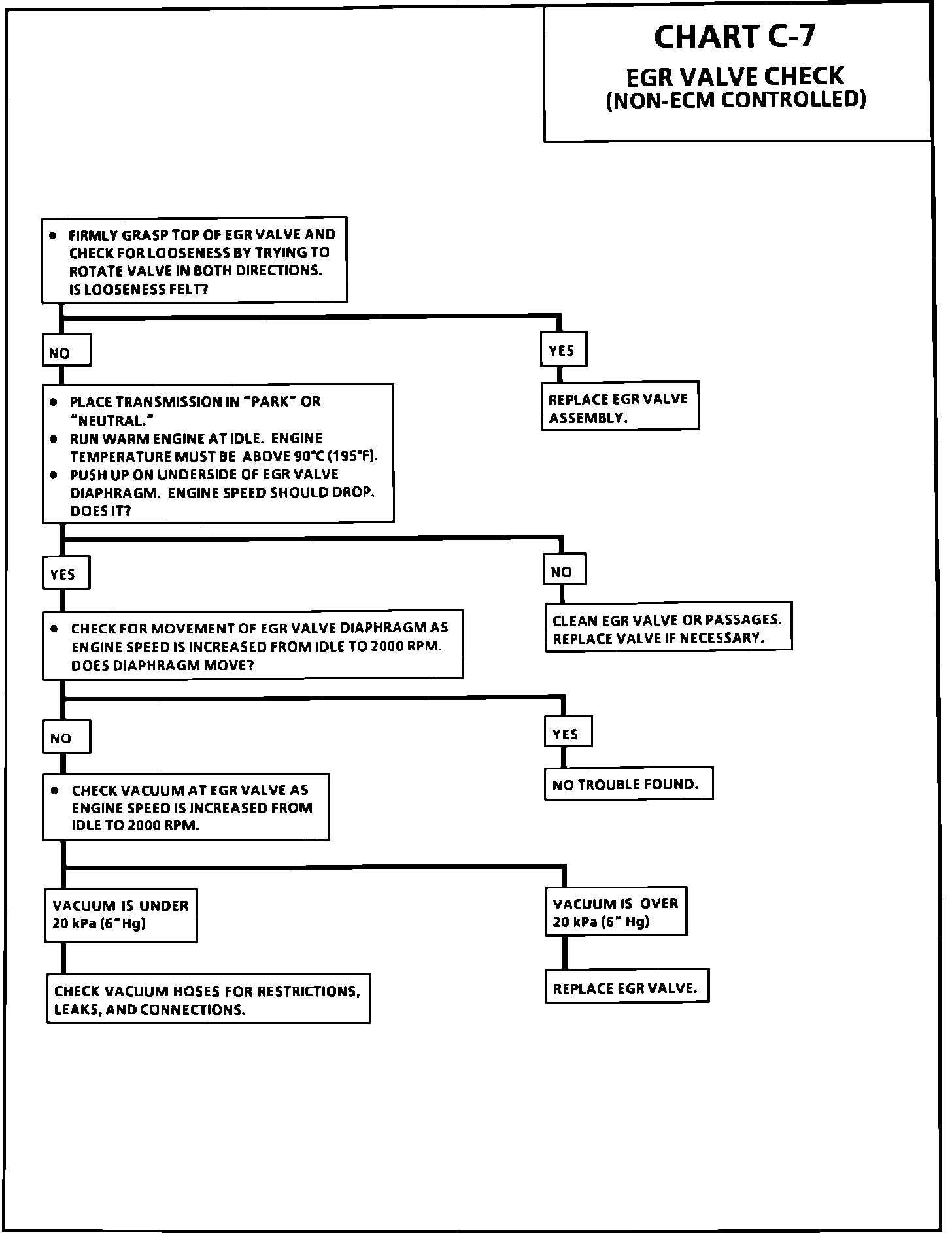

Chart C-7:

INCORRECT EGR OPERATION:

1. If too much EGR is flowing at idle, cruise, or cold operation,
any of the following conditions could exist:
a. The engine dies after cold start.
b. The engine stalls on deceleration.
c. The vehicle surges during cruise mode.
d. Rough idle.

2. If too little or no exhaust gases flow, the combustion chamber temperature may increase under acceleration or heavy load conditions. These conditions could cause:
a. Detonation (Spark Knock).
b. The engine to overheat.
c. The emissions test to fail.
