Test C: Right Rear Power Window Does Not Operate From Either Switch & Left Front Power Window Operates

If right rear power window does not operate from either switch & left front power window operates, see Fig 1 .

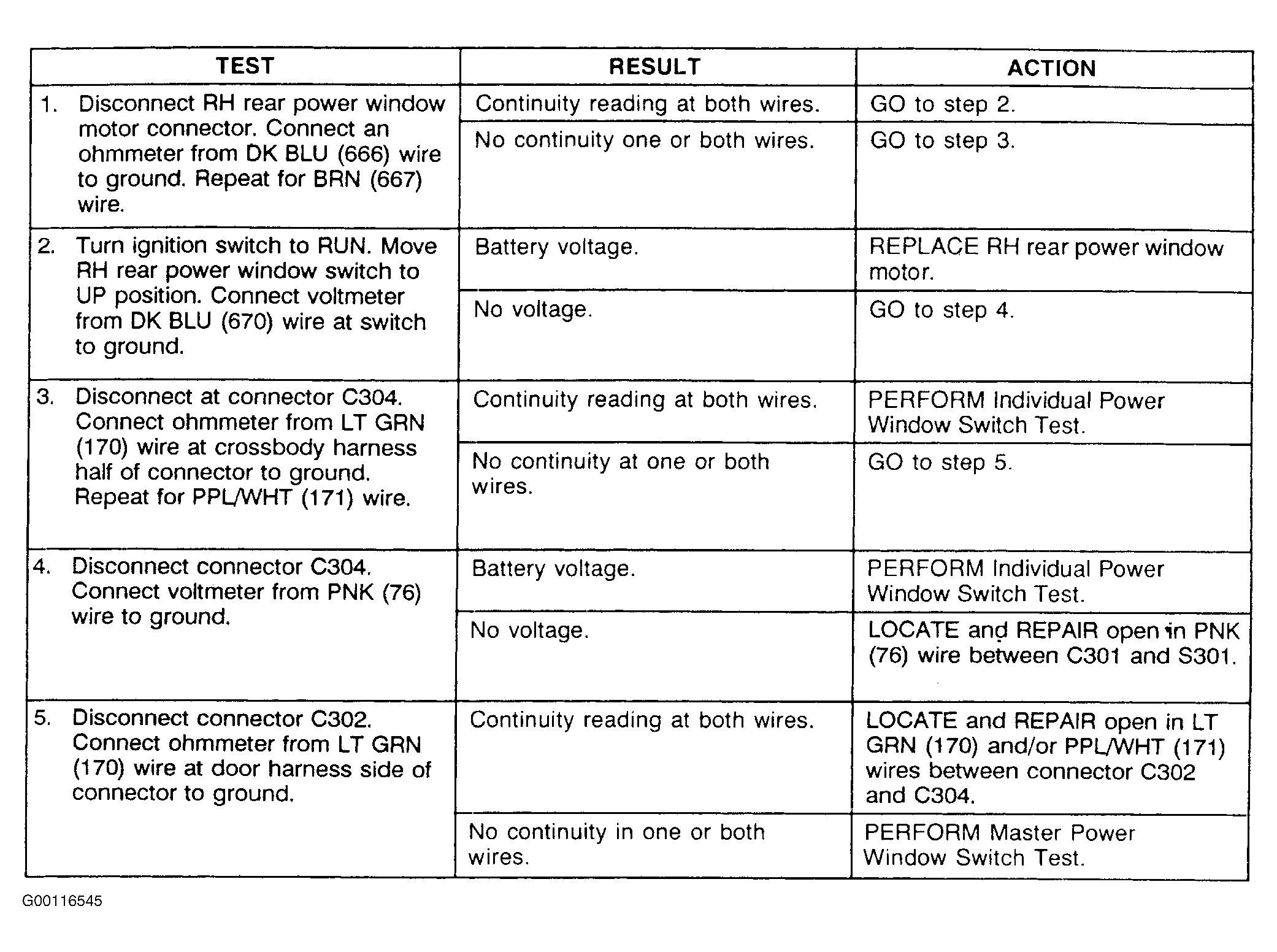

Fig 1: Test C: Right Rear Power Window Does Not Operate From Either Switch, Left Front Power Window Operates
G00116545Courtesy of GENERAL MOTORS CORP.
