System Check - Compressor Controls






^ Complete the A/C System Check as a guide to normal operation of the entire A/C System. System Check - Blower Controls

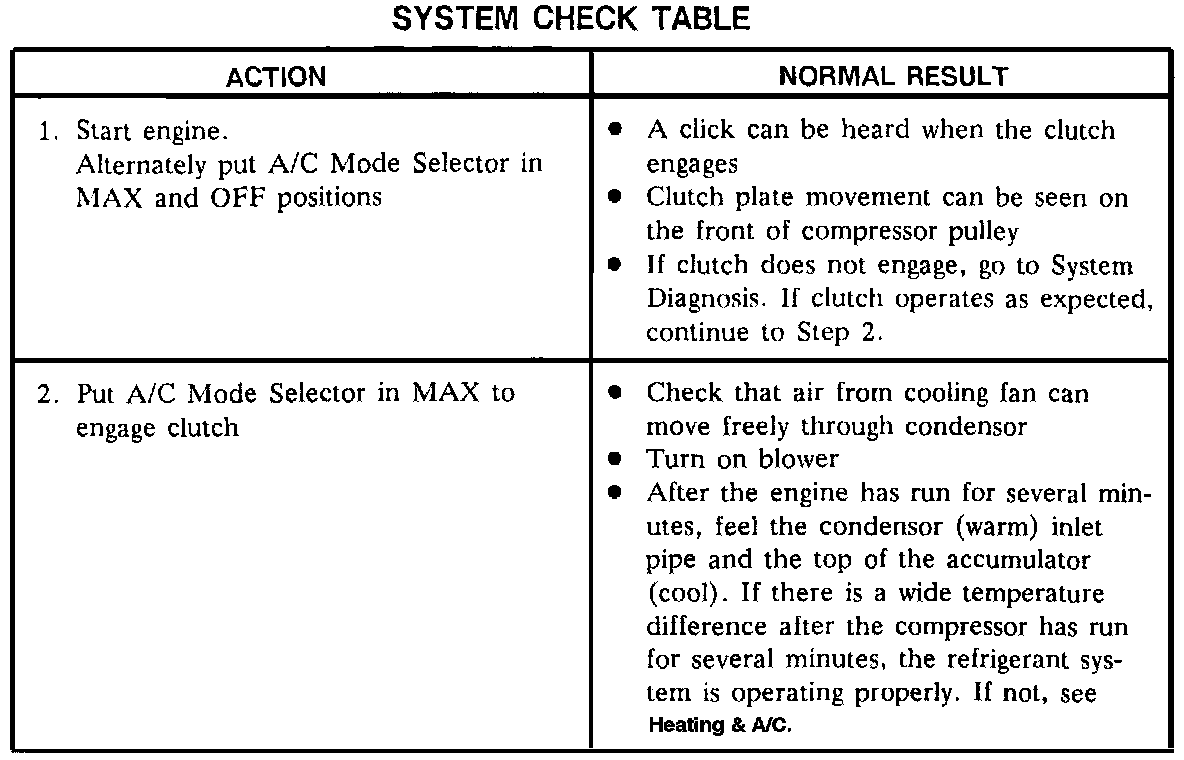

^ Use the illustrated System Check Table as a guide to normal operation of Compressor Controls.
