Electronic Brake Control Module

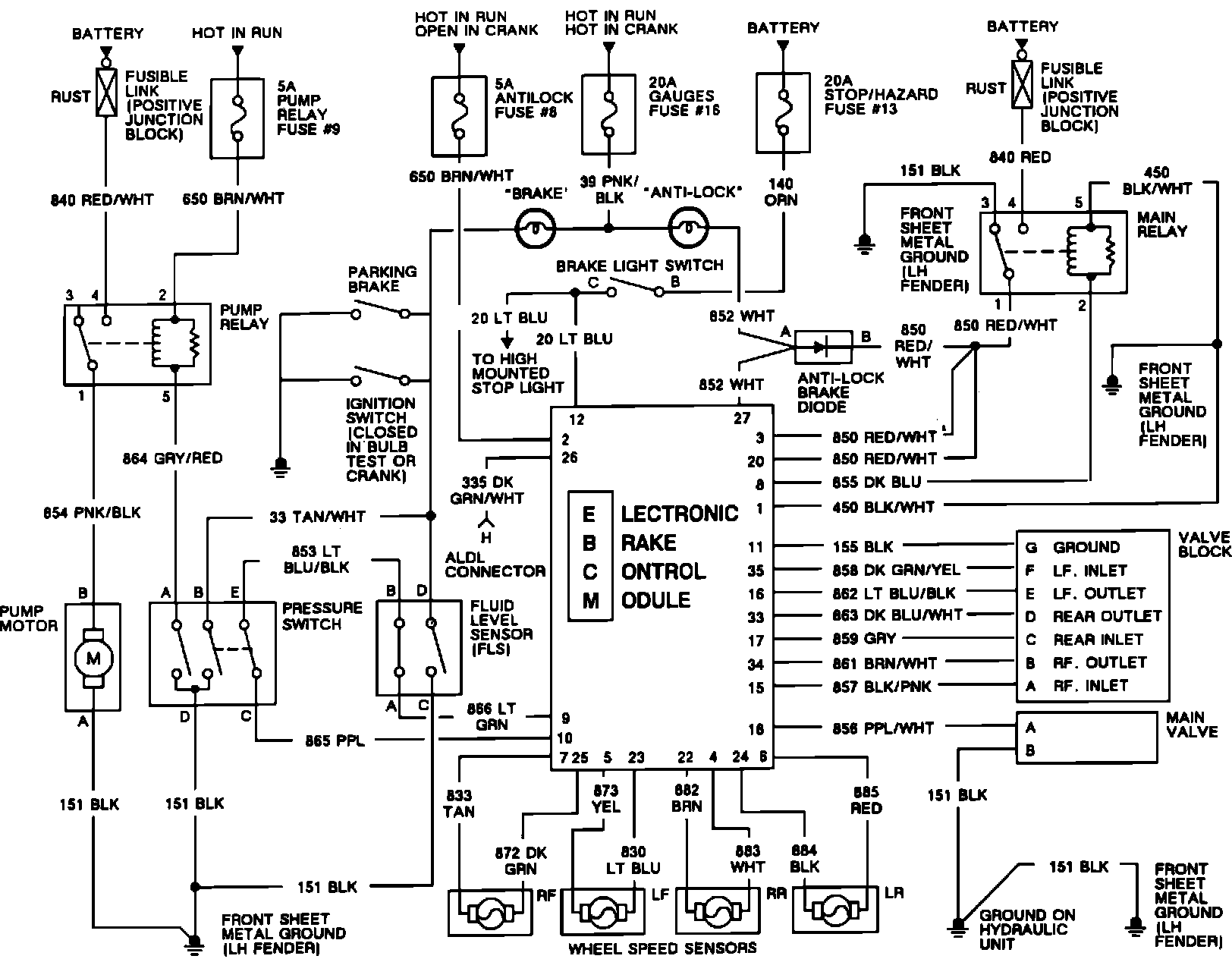

Fig. 48 Anti-Lock Brake System Wiring Schematic. 1989-90 Models Except 6000:
