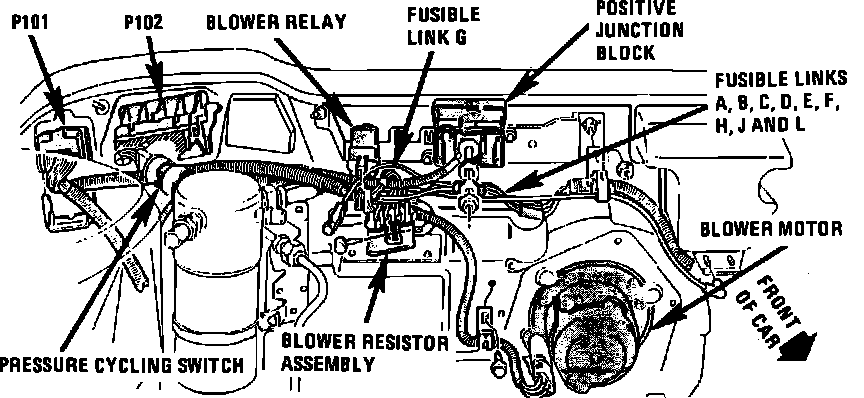

Positive Junction Block

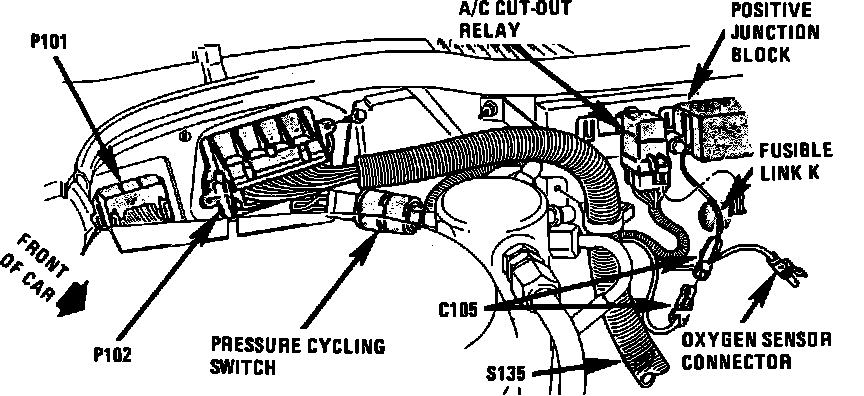

A/C Cut-Out Relay.:
Blower Relay.:
RH Front Of Dash, On Relay Bracket
Applicable to: 88 & 98
