Check Valve

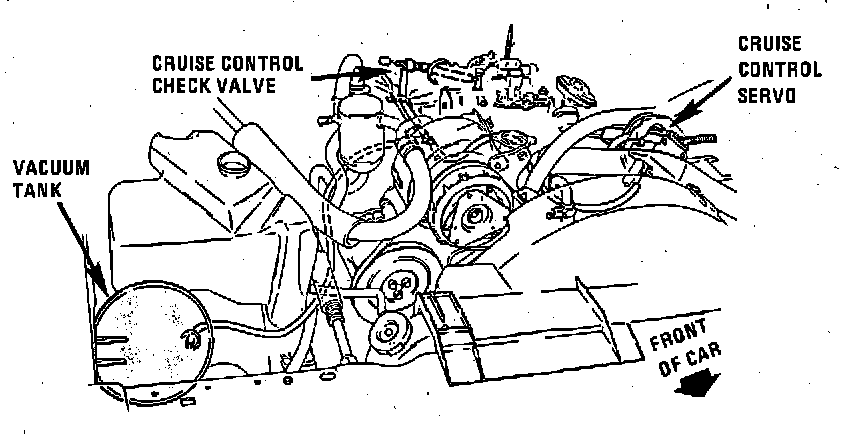

Cruise Control Components.:




Near Top Rear Of Engine

Applicable to: Custom Cruiser & Estate Wagon

Cruise Control Components.:




Near Top Rear Of Engine

Applicable to: Caprice & Safari w/V8-307/5.0L Carbureted

Vacuum Tank.:




Near Top Rear Of Engine

Applicable to: Caprice & Safari
