Note On Intermittents

If an intermittent Code B671 is being set, manipulate the related wiring while observing BCM data BD70. If the failure is induced, the reading will jump from its normal value to a reading below 3 percent.

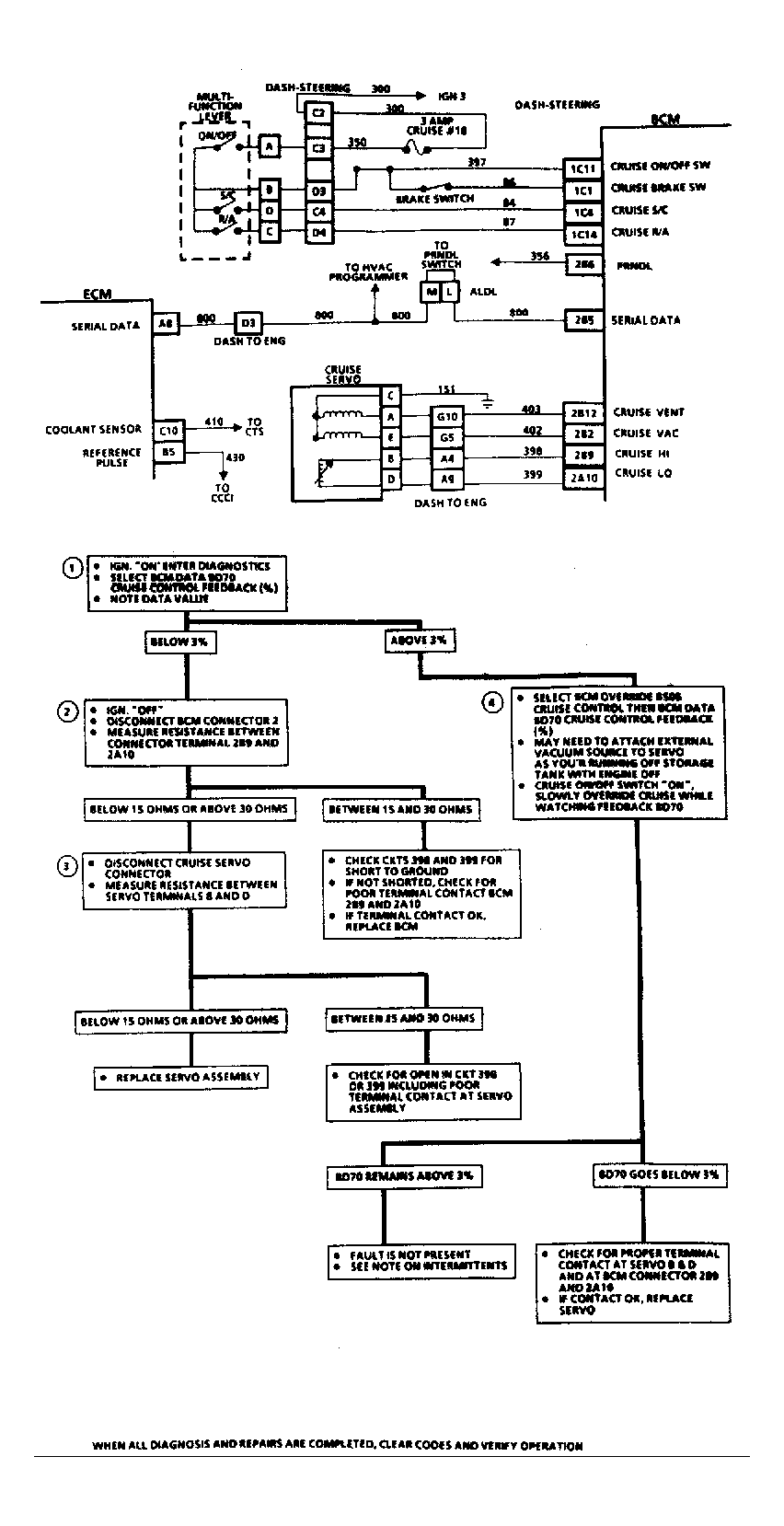

Fig 1: Cruise - Servo Position Sensor Circuit Problem
