Note On Intermittents

Since both sets of relays can cause an intermittent condition, see NOTE ON INTERMITTENTS in chart B420 (2 of 3) and (3 of 3).

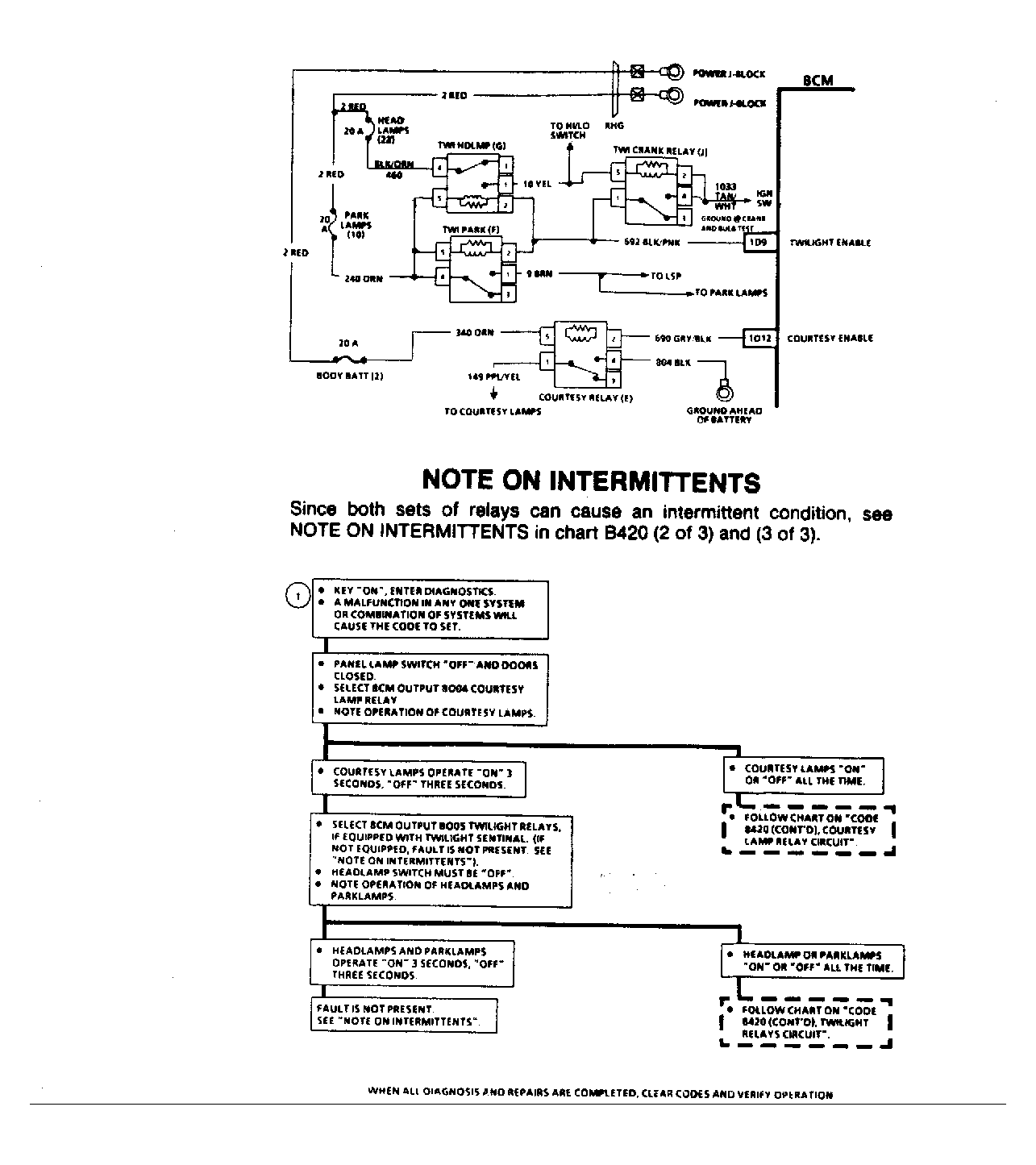

Fig 1: Code B420, Twilight Relay Circuits (1 of 3)
G57593
