Wiring Diagrams

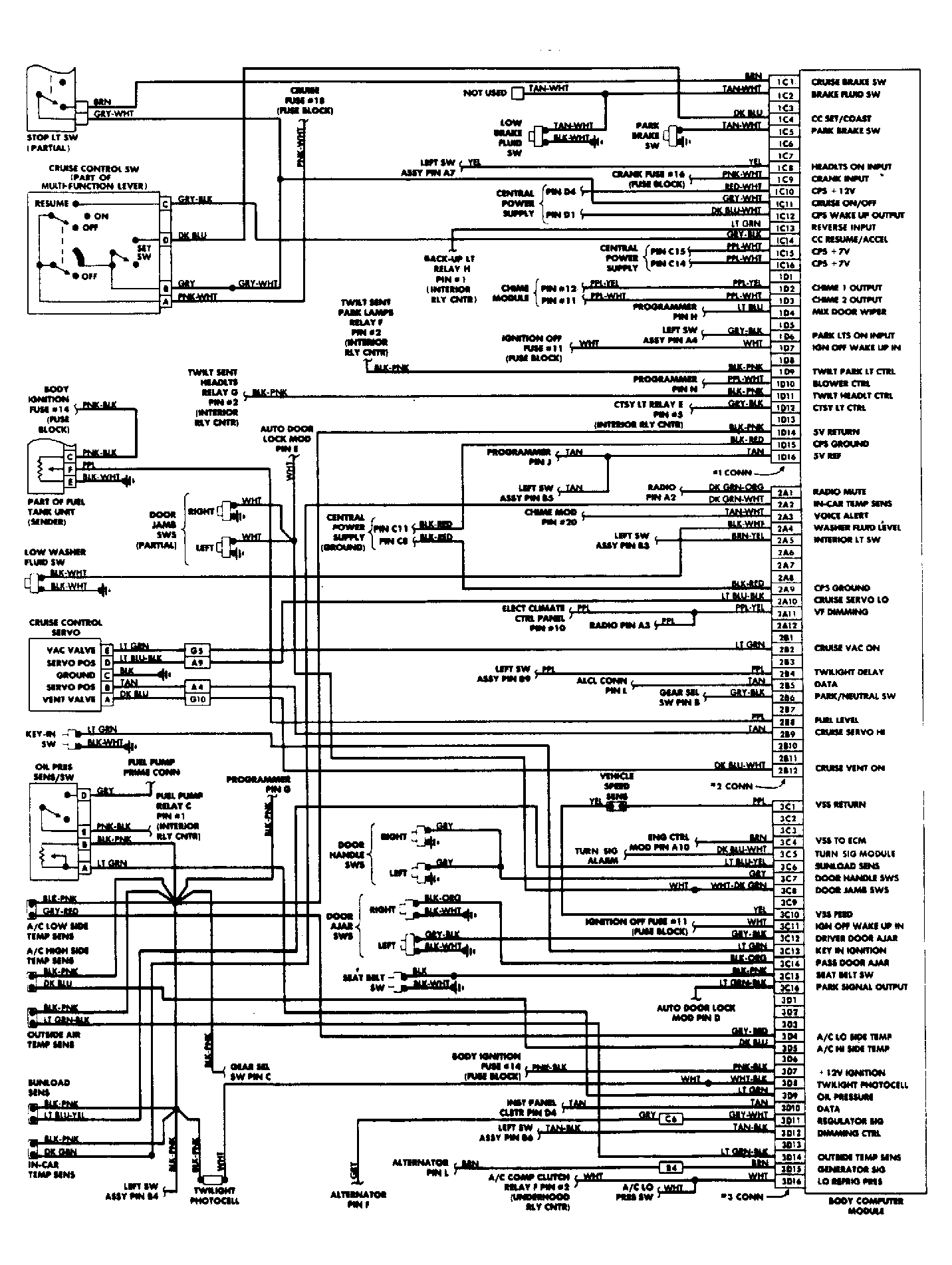

Fig 1: Toronado BCM Wiring Diagram

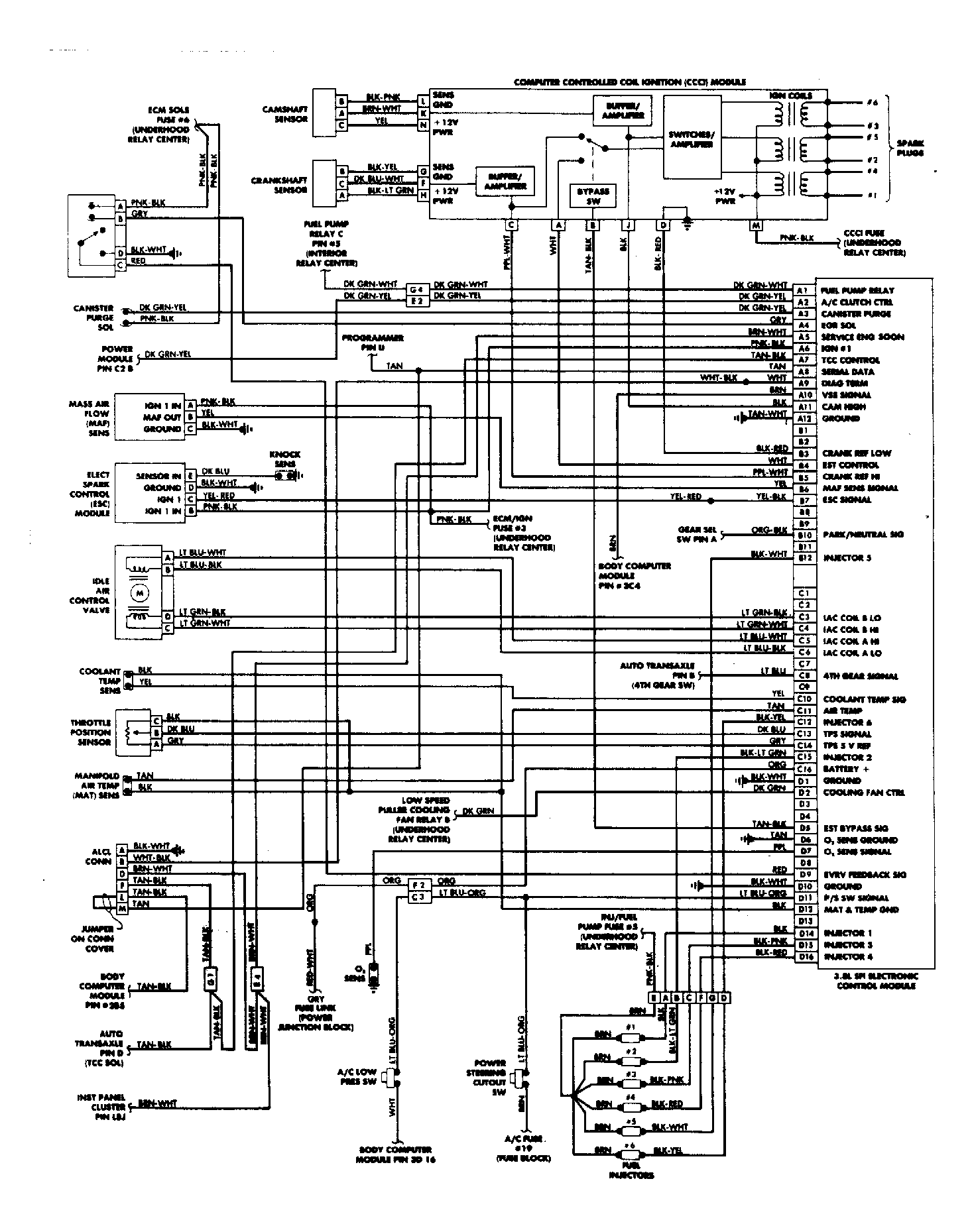

Fig 2: Toronado ECM Wiring Diagram

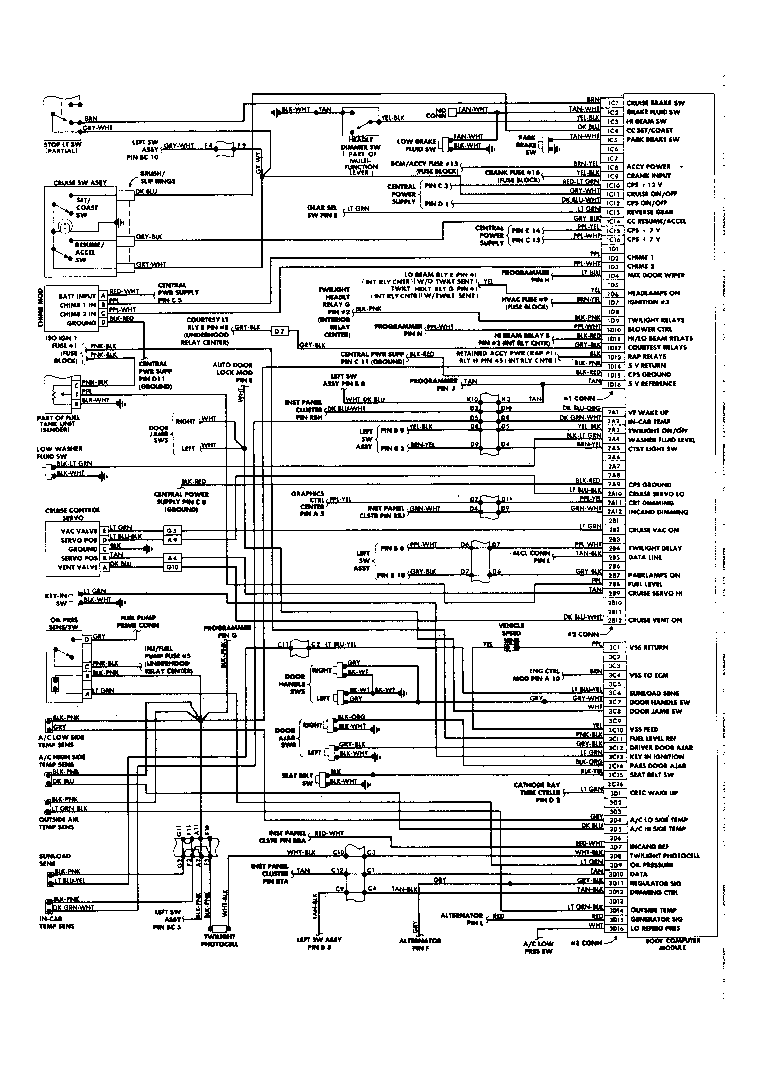

Fig 3: Riviera BCM Wiring Diagram

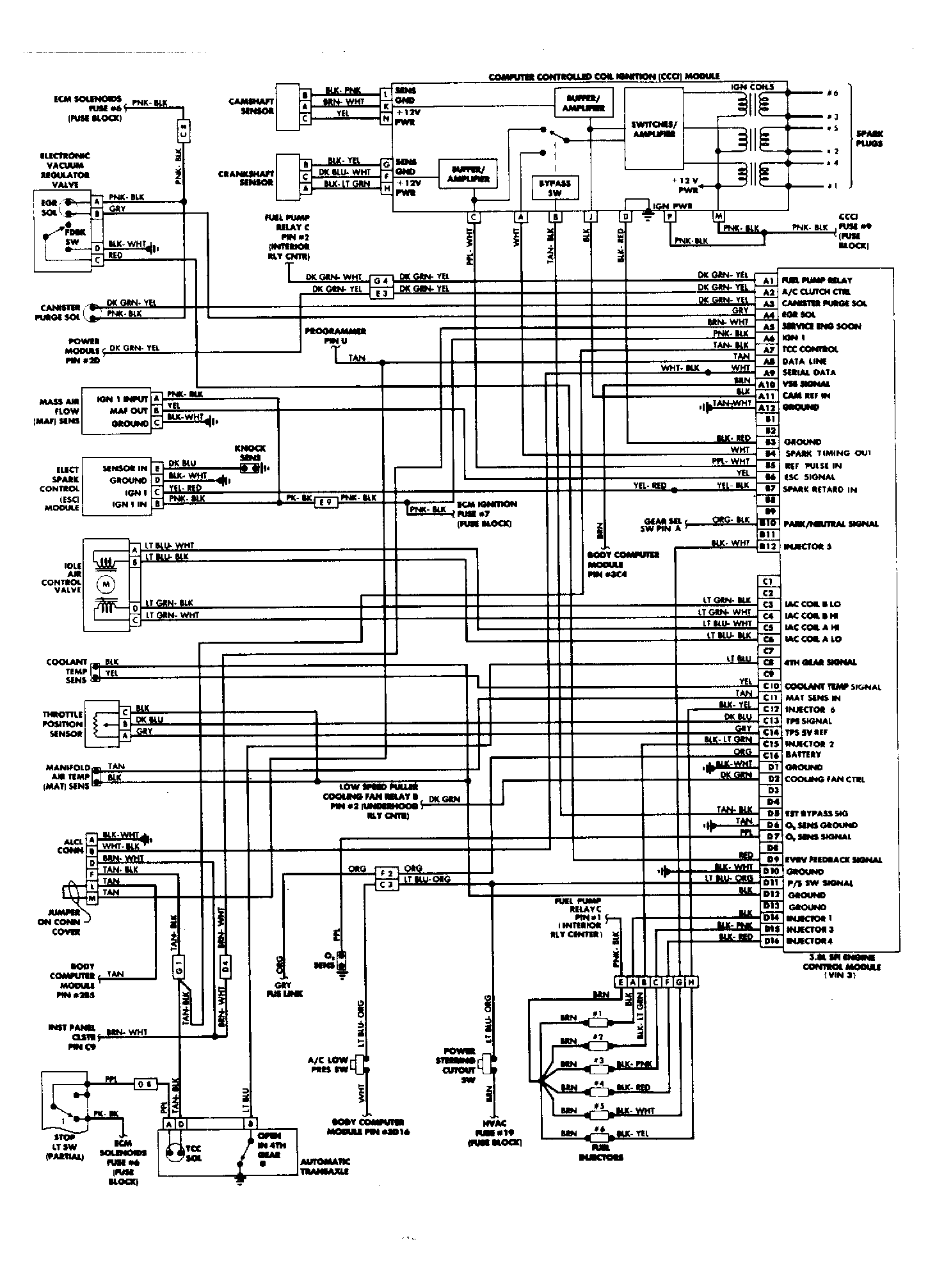

Fig 4: Riviera ECM Wiring Diagram

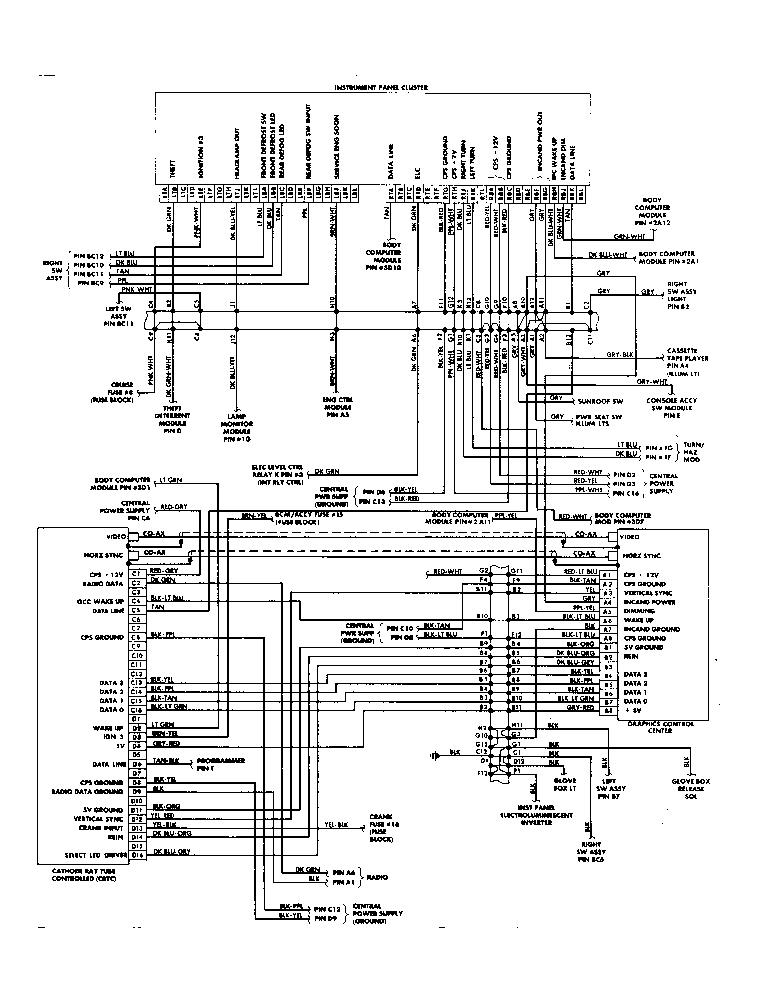

Fig 5: Riviera CRT & IP Wiring Diagram
