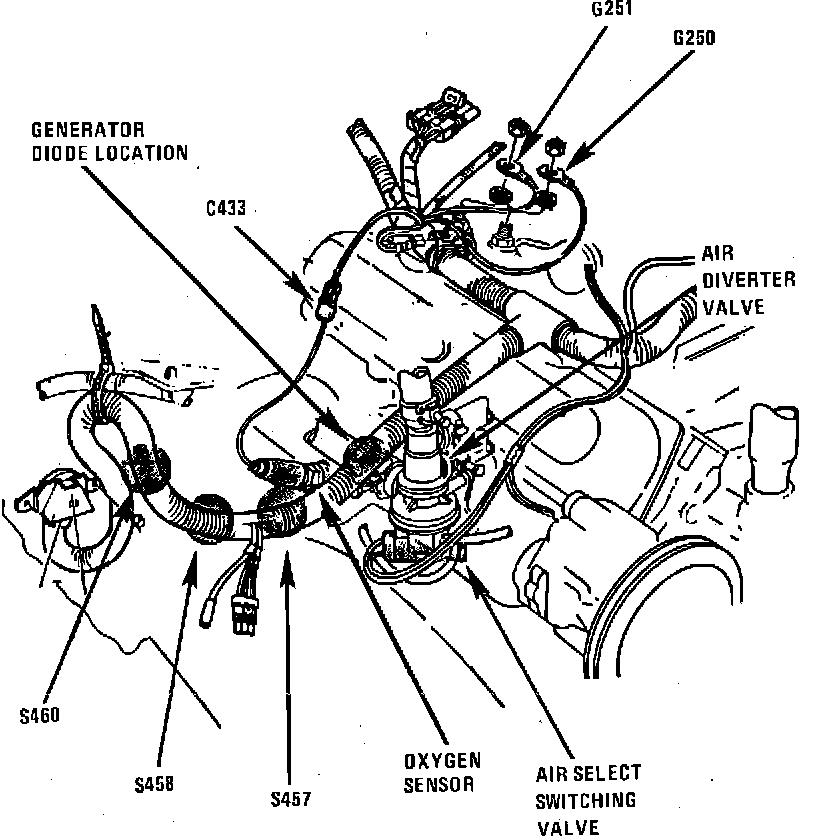

Alternator Diode

RH Side Of Engine.:




Taped To Engine Harness, Behind AIR Diverter Valve

Applicable to: 1986-87 Custom Cruiser & Estate Wagon
