ECM Terminal Id

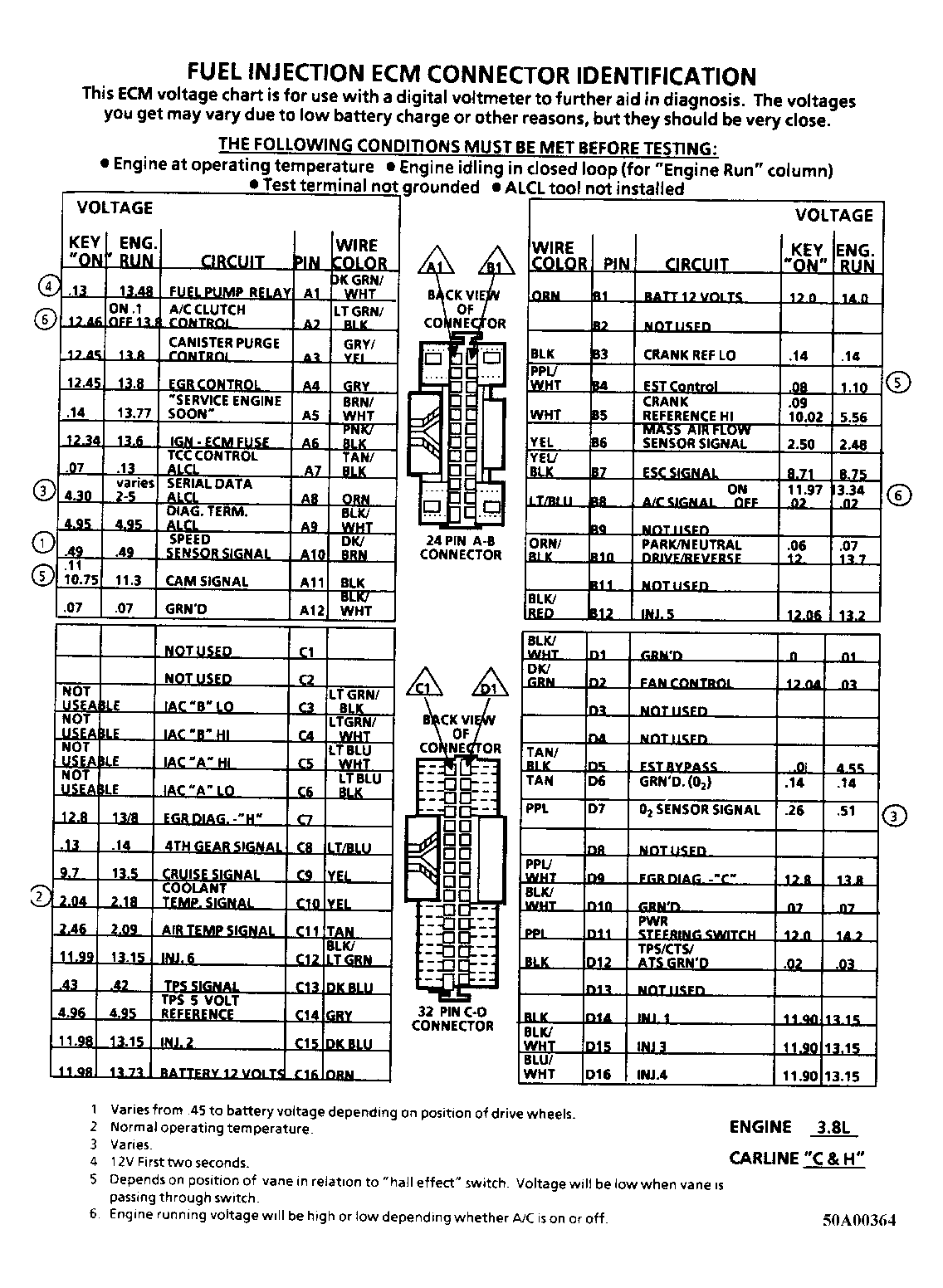

Fig 1: 3.8L PFI ECM Terminal ID ("C" & "H" Bodies)

G50A00364

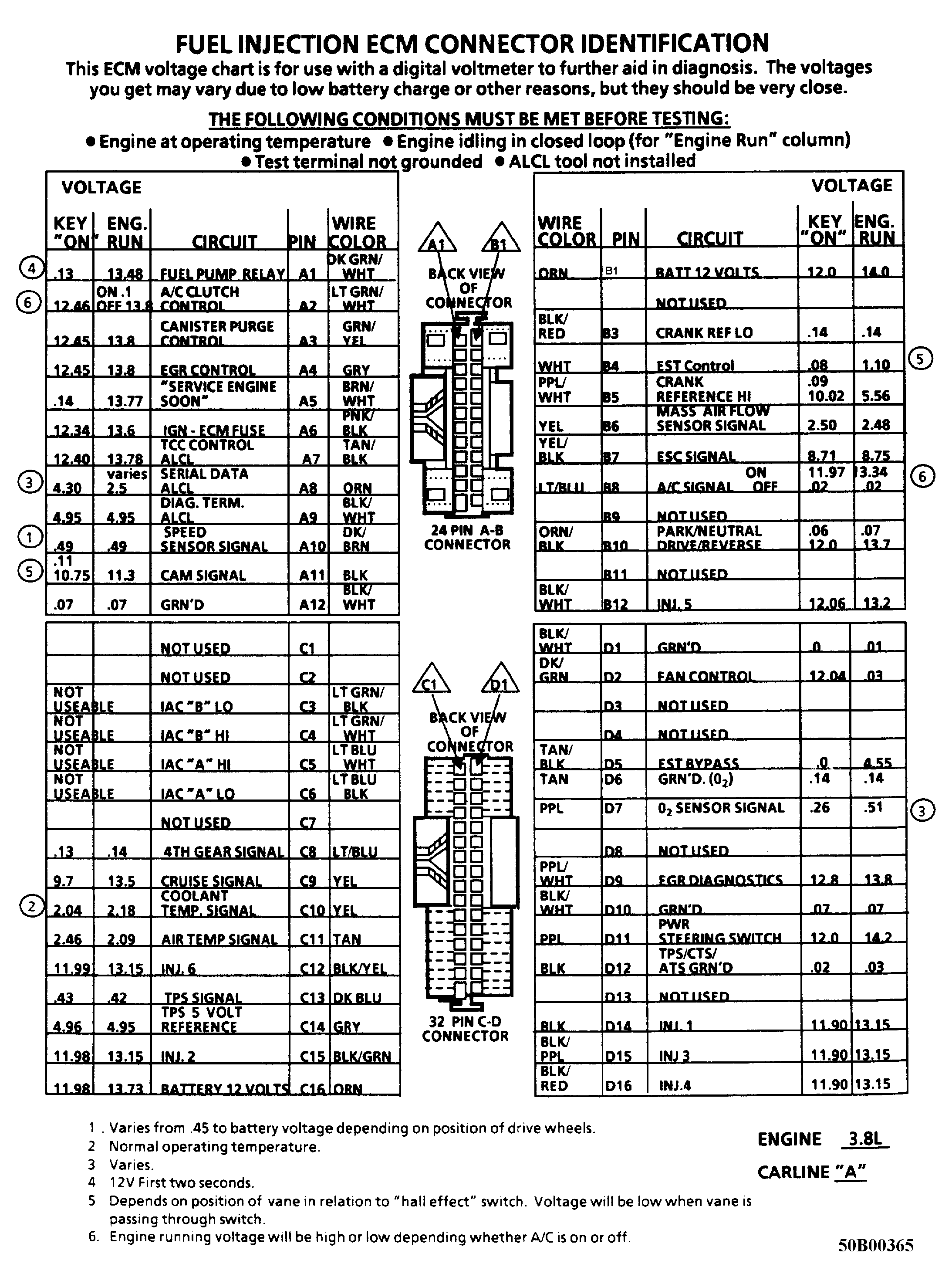

Fig 2: 3.8L PFI ECM Terminal ID ("A" Body)

G50B00365
