Engine Controls

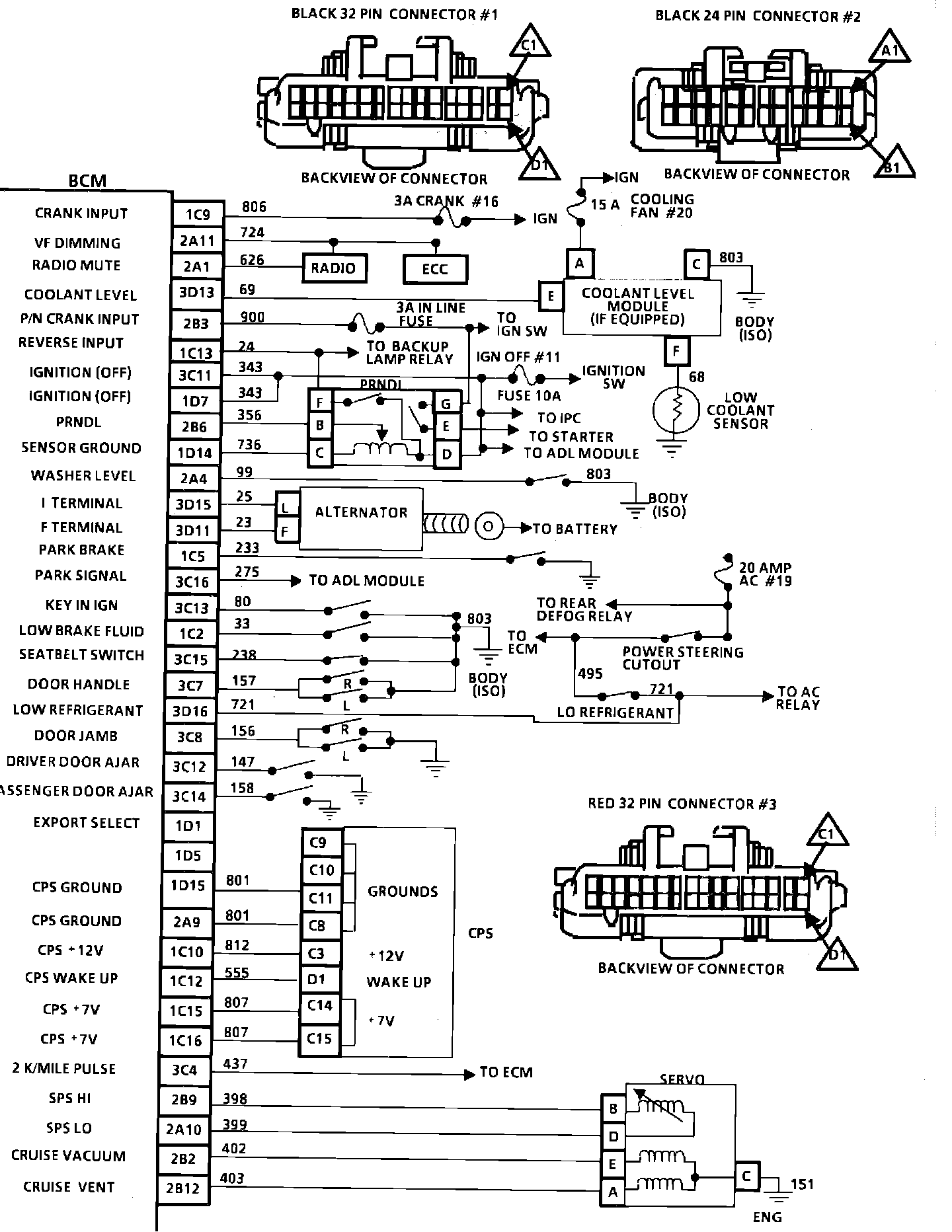

BCM Wiring Diagram (Part 1 of 2):

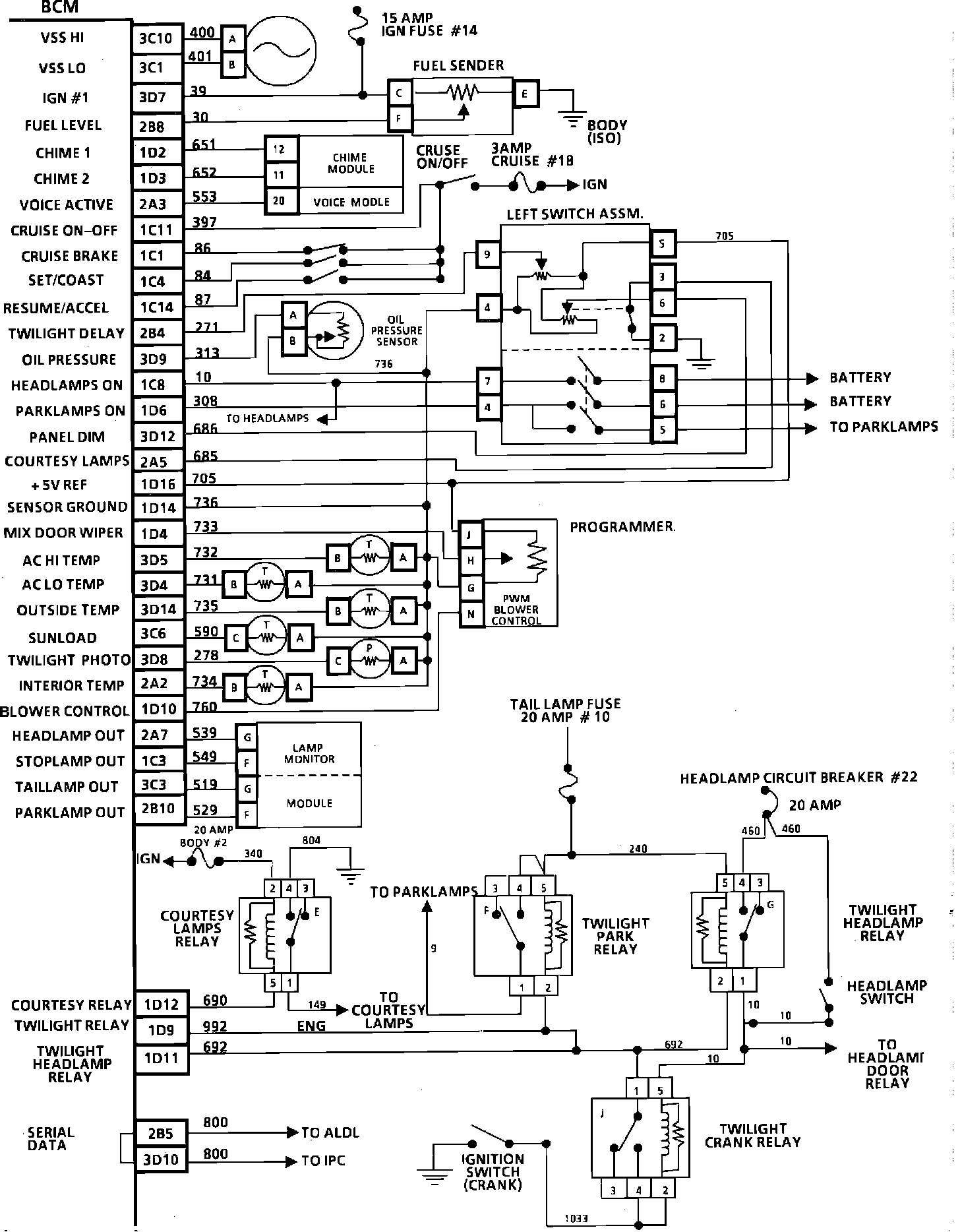

BCM Wiring Diagram (Part 2 of 2):

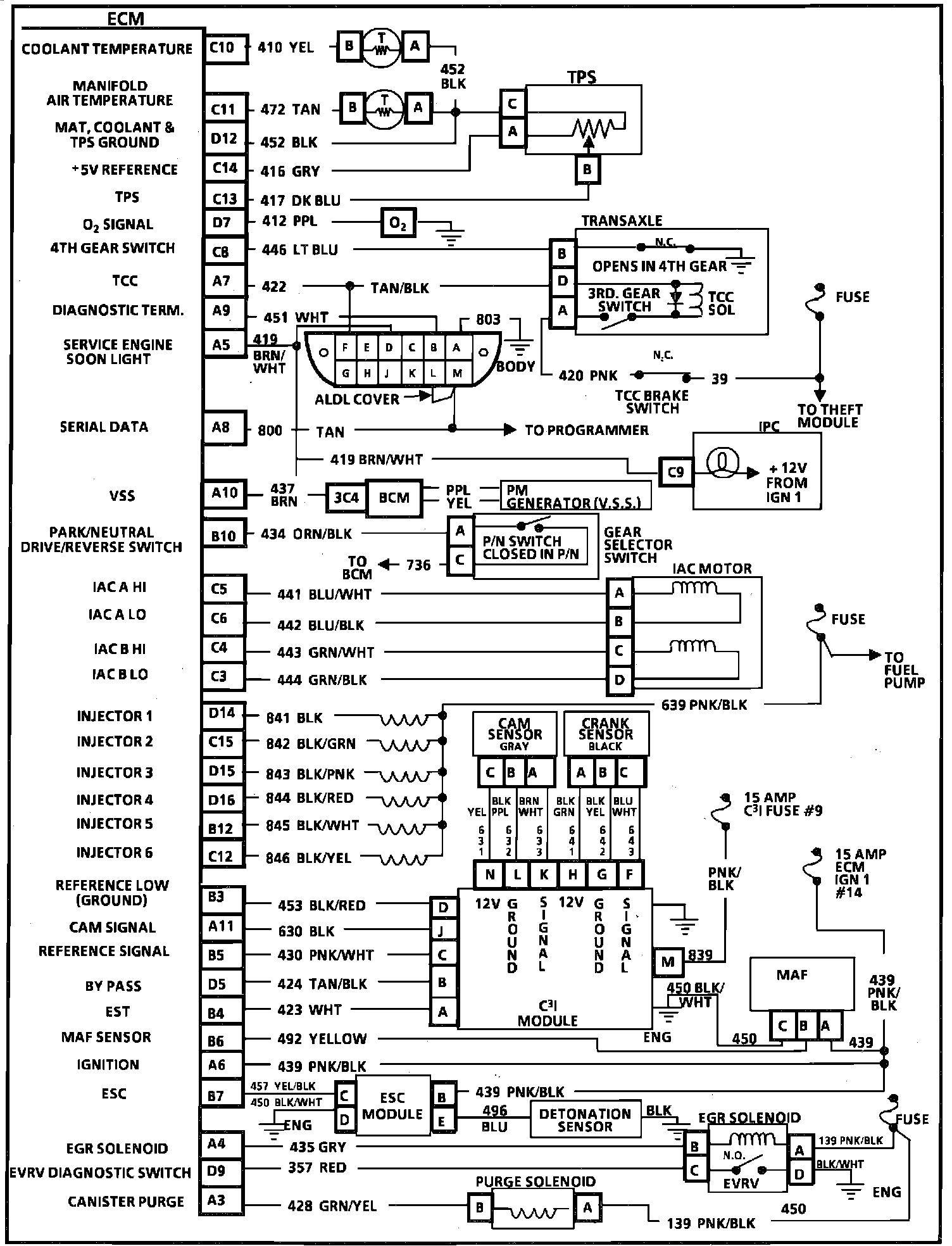

ECM Wiring Diagram (Part 1 of 2):

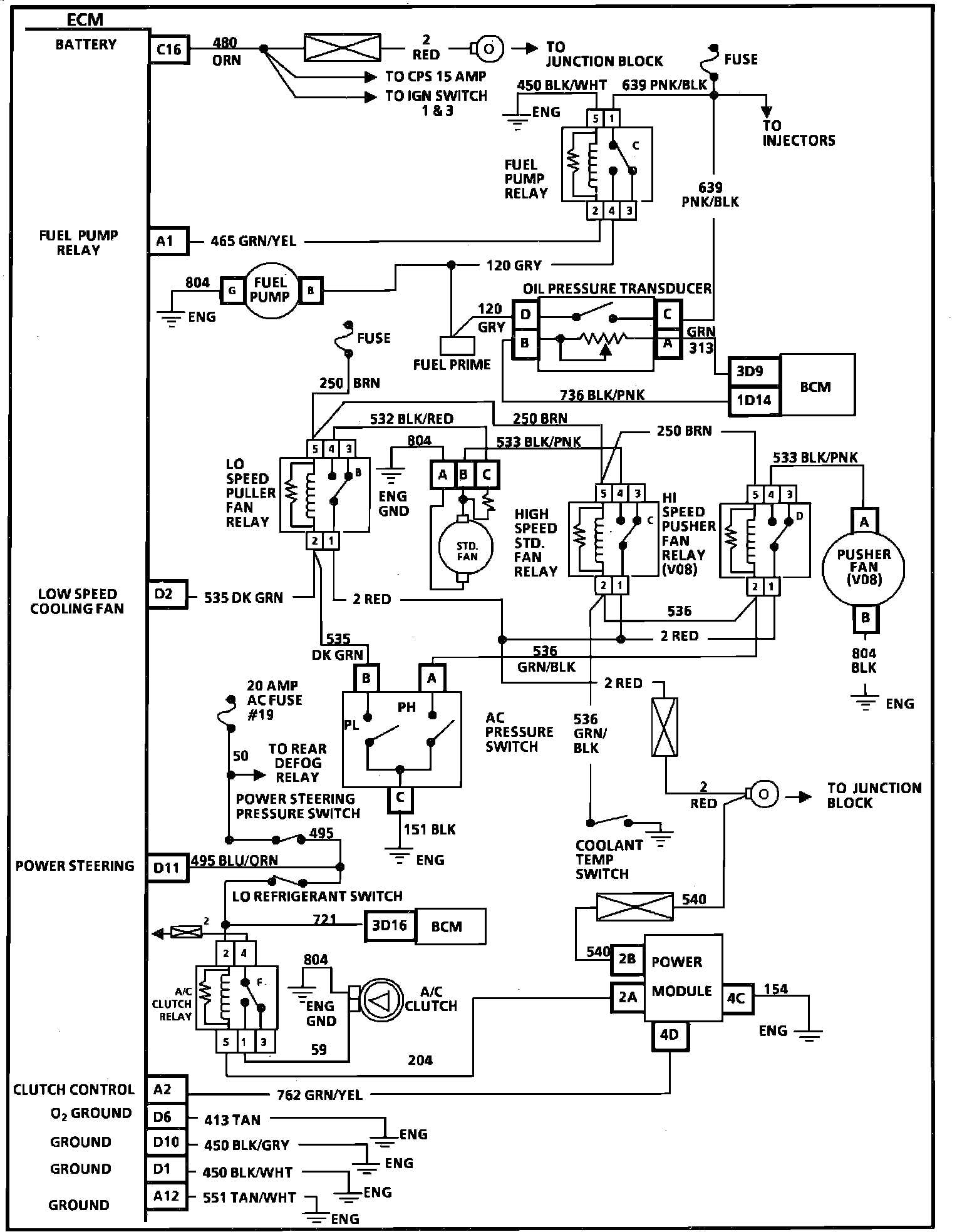

ECM Wiring Diagram (Part 2 of 2):
