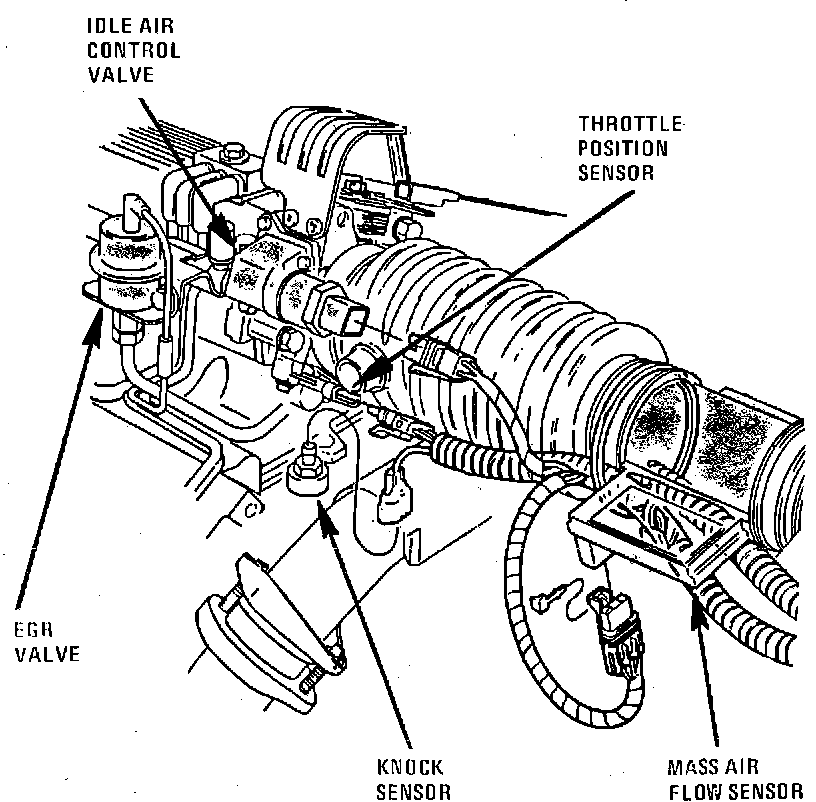

Knock Sensor

Top LH Side Of Engine:




Top LH Of Engine, Above Transaxle

Applicable to: 1986 88 & 98 w/V6-181 (3.0L) Engine
