Emission Control Systems: Locations

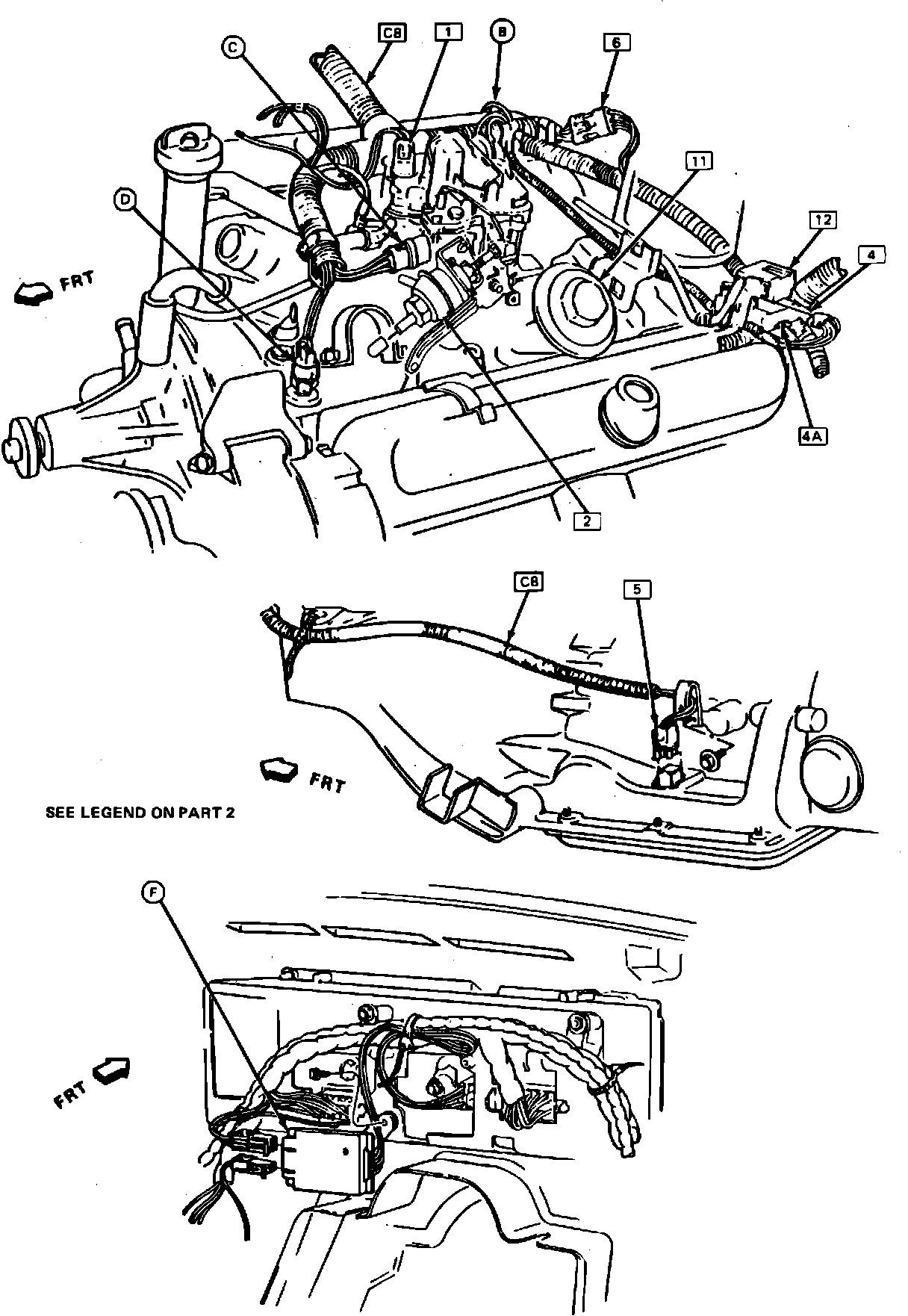

Fig. 52a Emission Component Location. 1986 Cutlass & Custom Cruiser W/V8-307/5.0L, 4 Bbl. (Part 1 of 2):

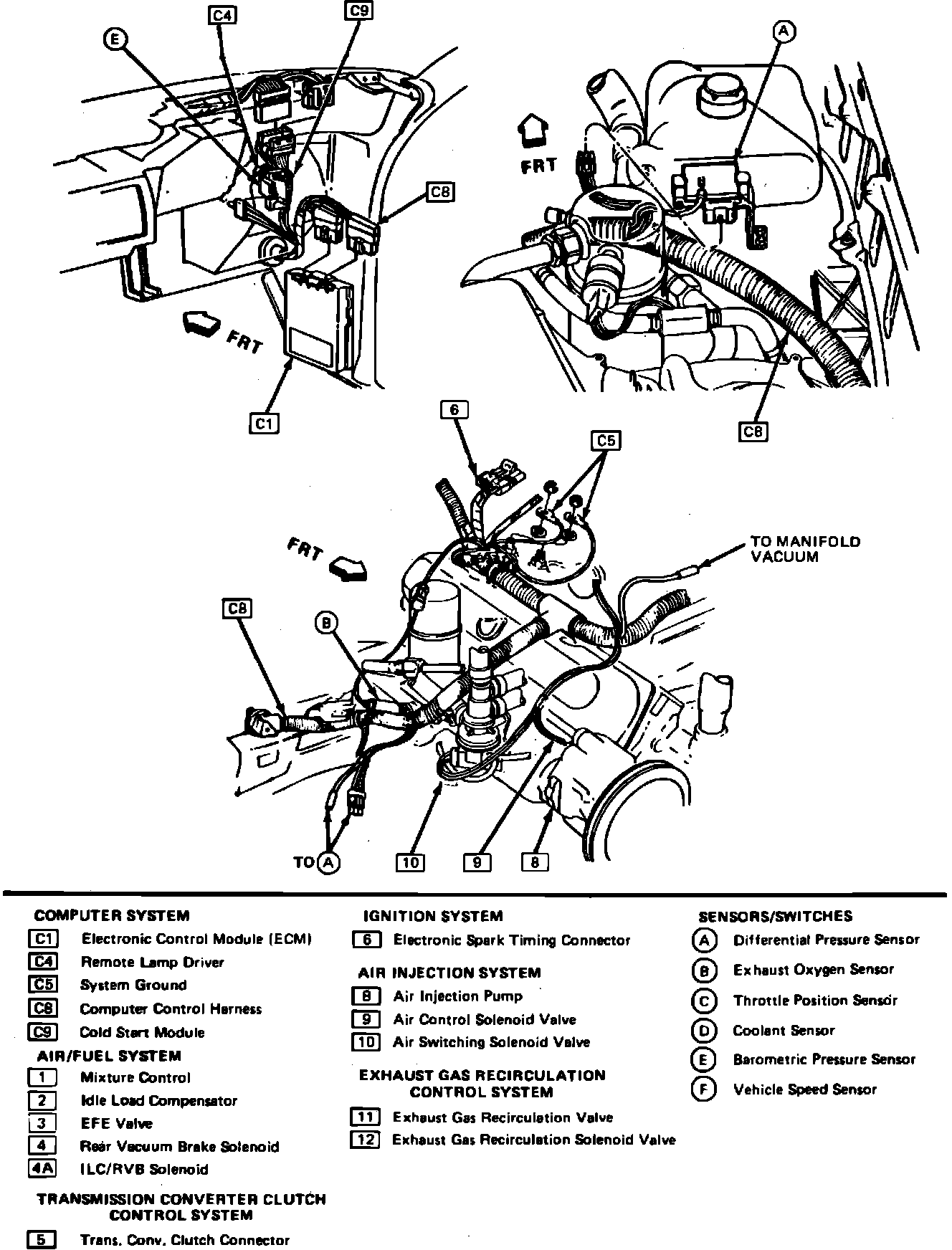

Fig. 52b Emission Component Location. 1986 Cutlass & Custom Cruiser W/V8-307/5.0L, 4 Bbl. (Part 2 of 2):
