Diode: Locations

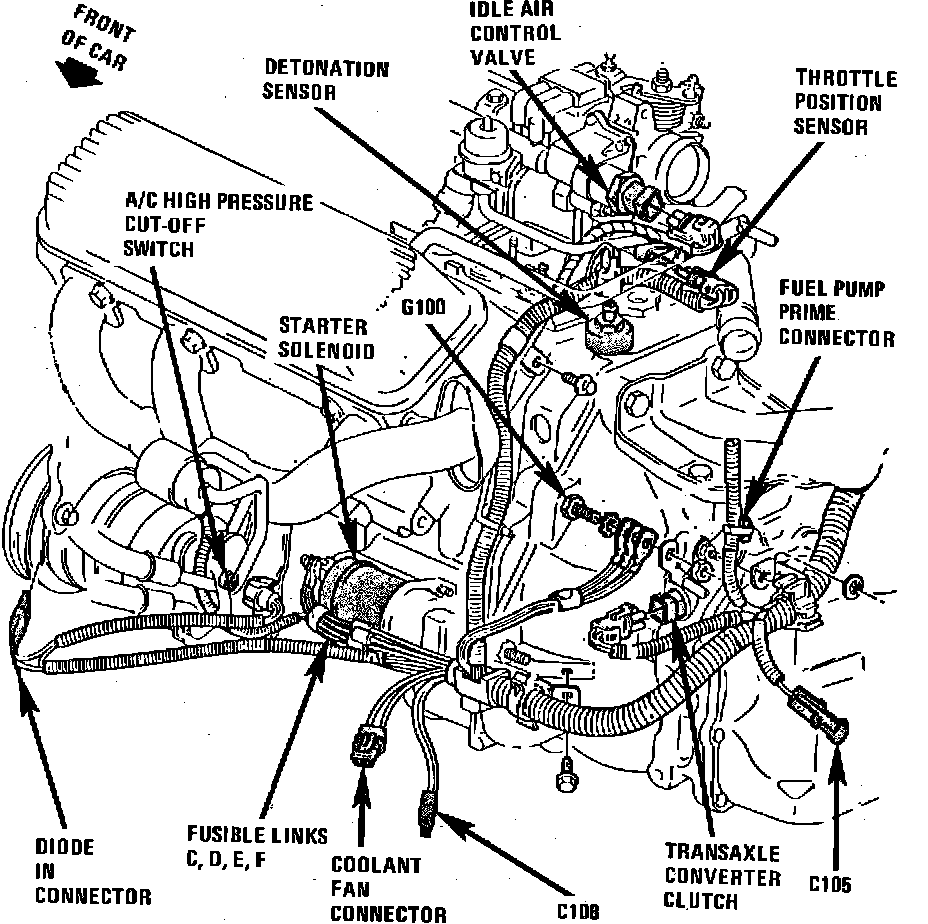

RH Front Of Engine.:




Lower RH Front Of Engine In Connector On A/C Clutch

Applicable to: 1986 Exc. Grand Am (V6-181/3.0L)
