System Specifications

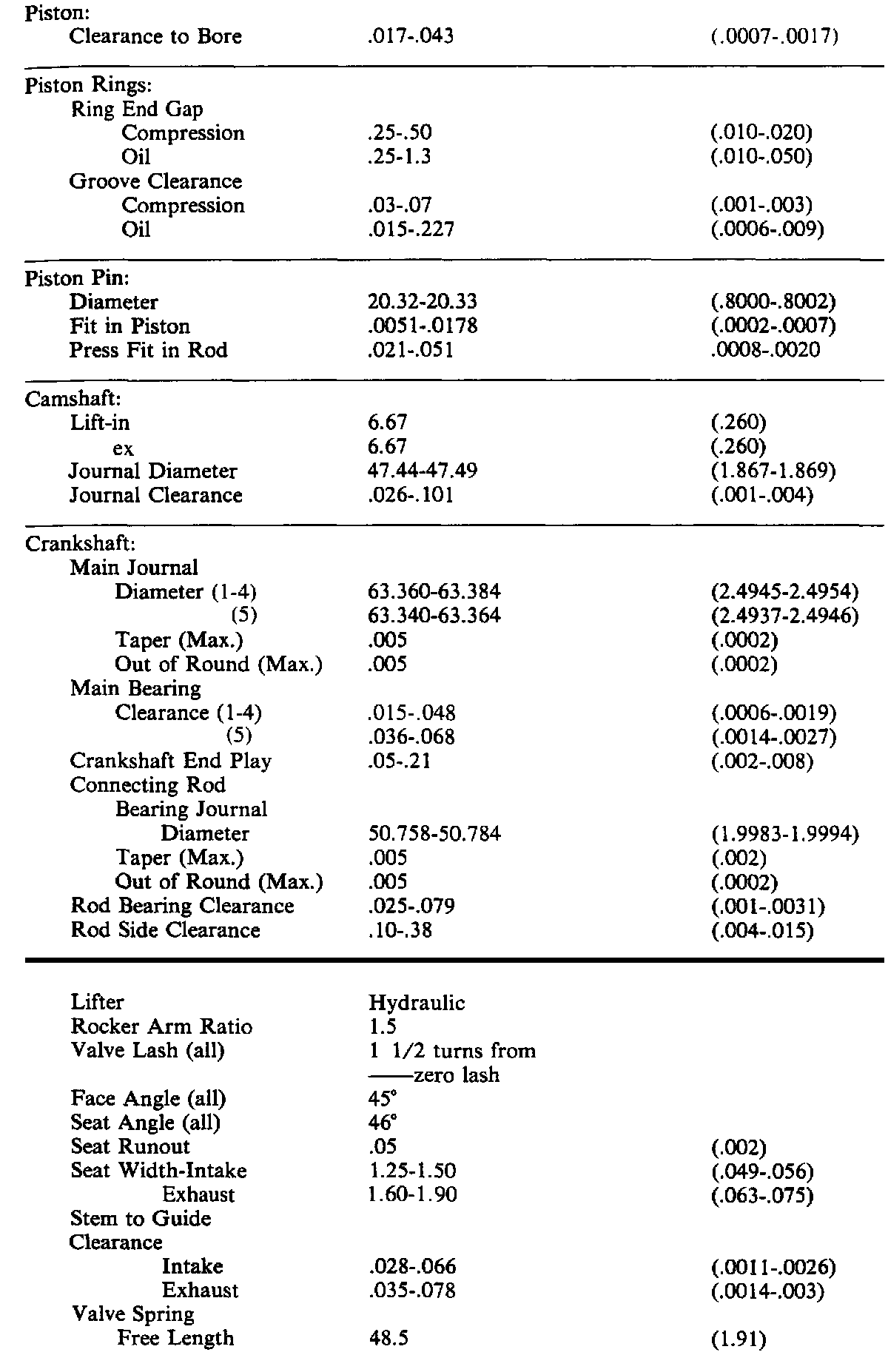

Engine Specifications:





Continued Engine Specifications:





Continued Engine Specifications:

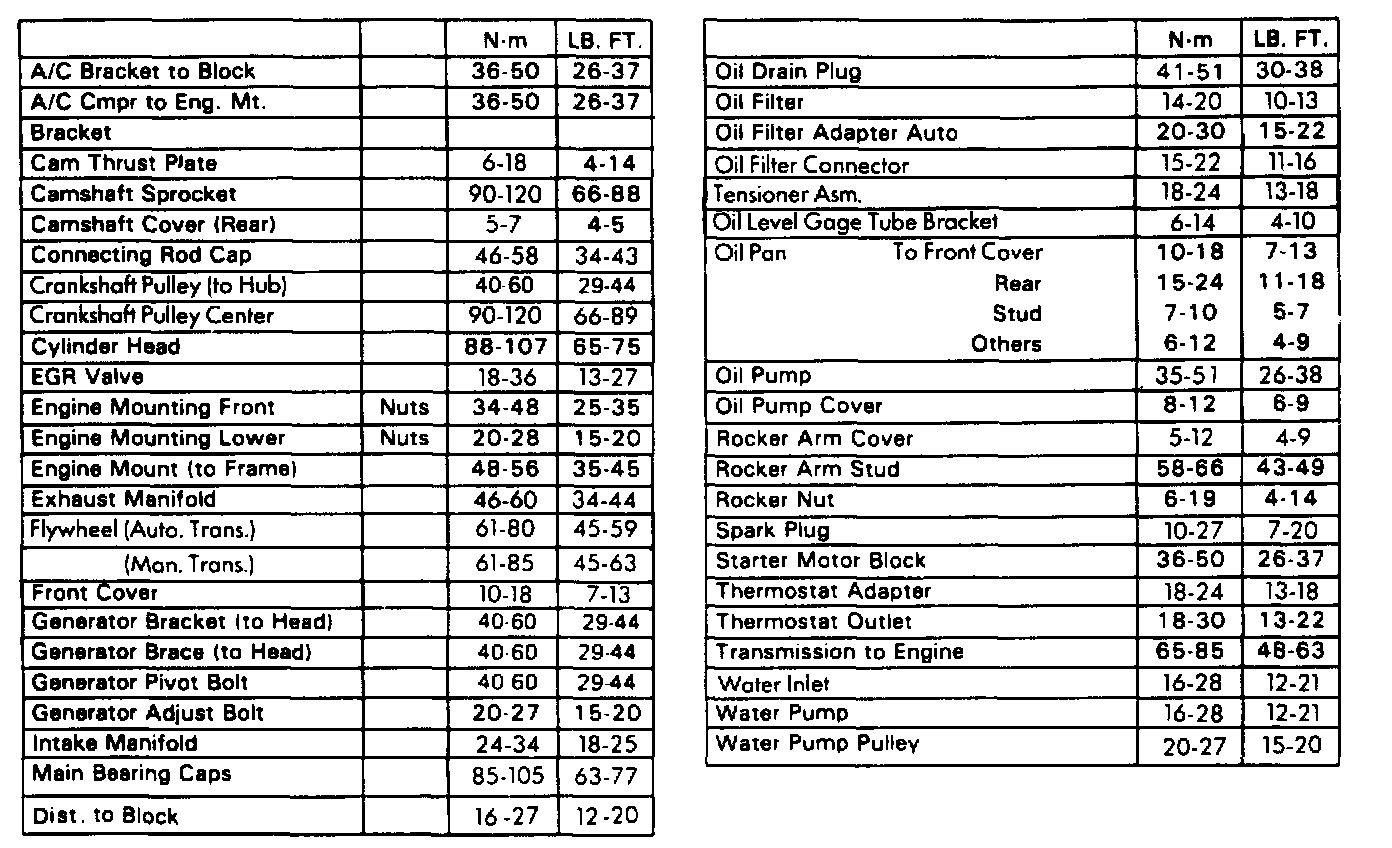

Torque Specifications:

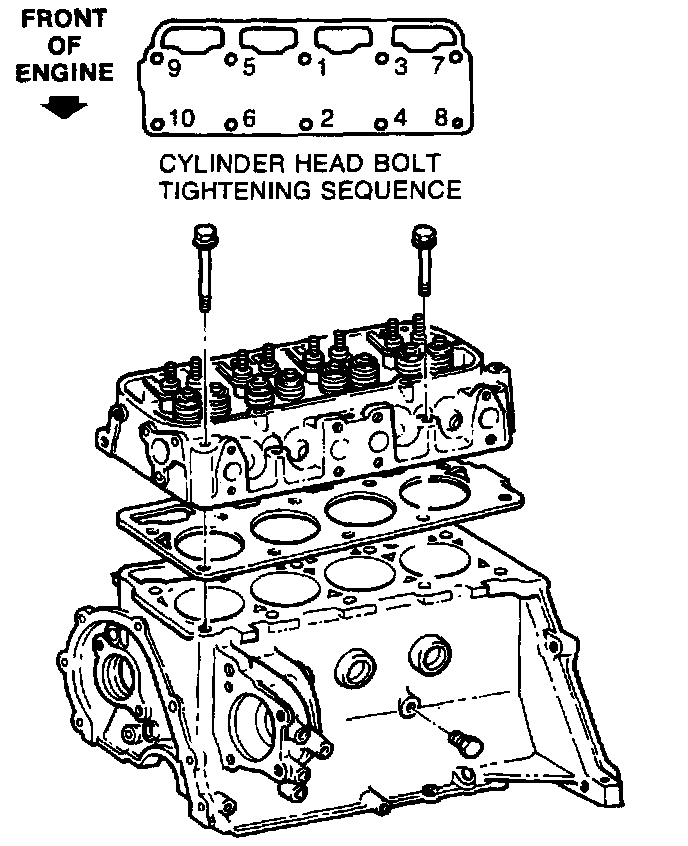

Cylinder Head Sequence:
