Idle/Throttle Speed Control Unit: Locations

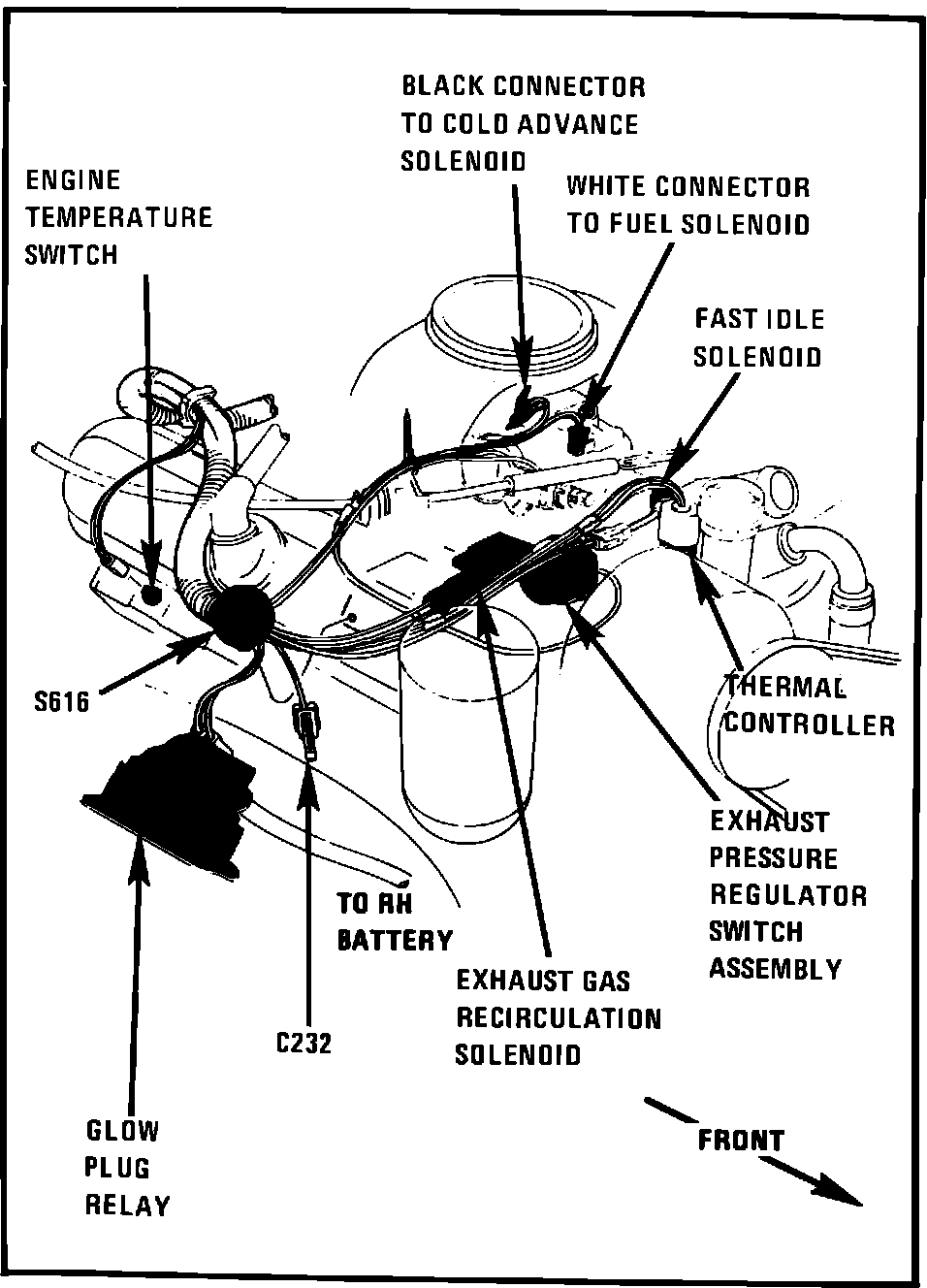

Top Front Of V6 Engine.:




Front RH Side Of Engine

Applicable to: 1984-85 Toronado
