Exploded View

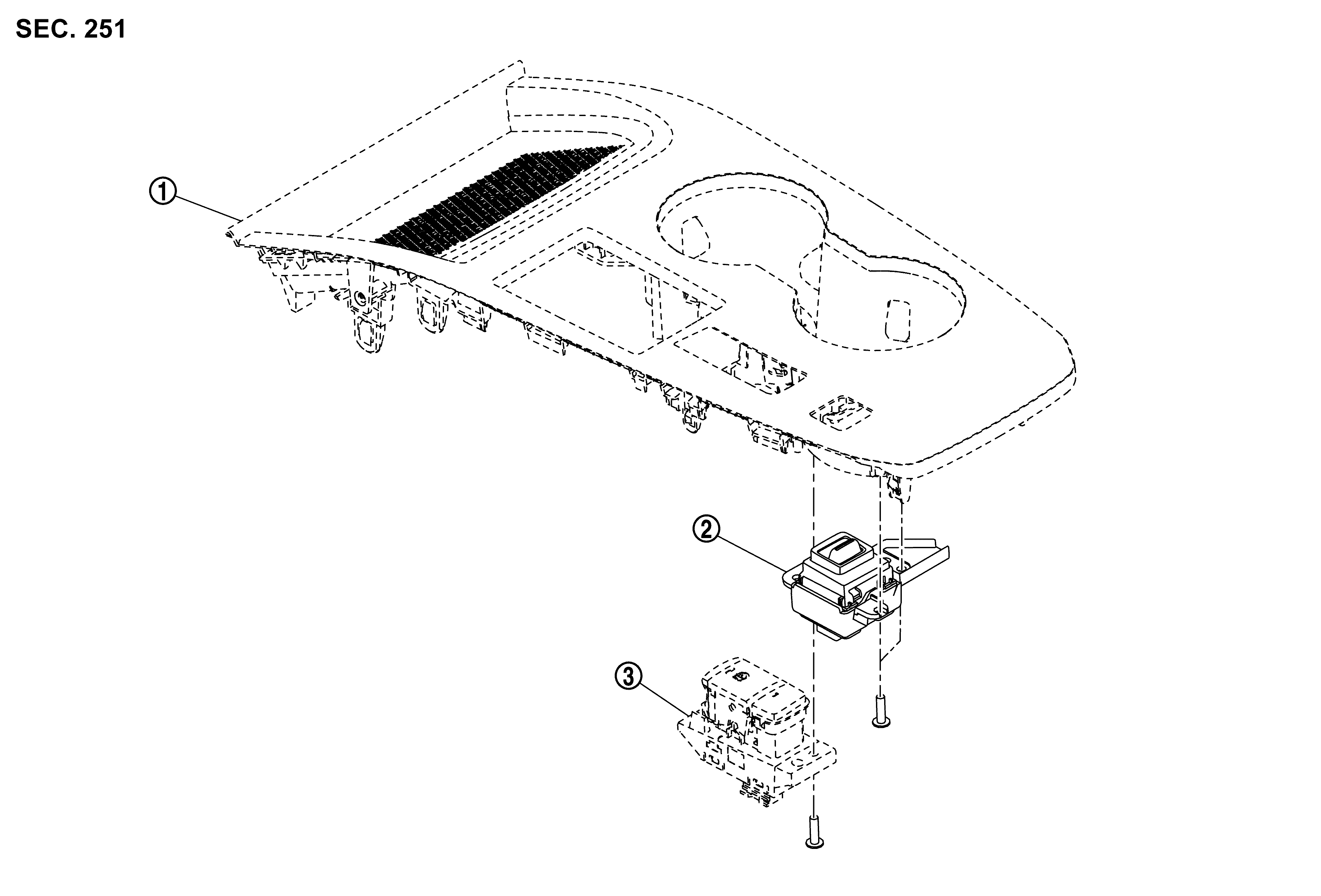

2WD MODELS

GNSDB131722Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Console finisher SYMBOL Drive mode select switch SYMBOL Parking brake switch

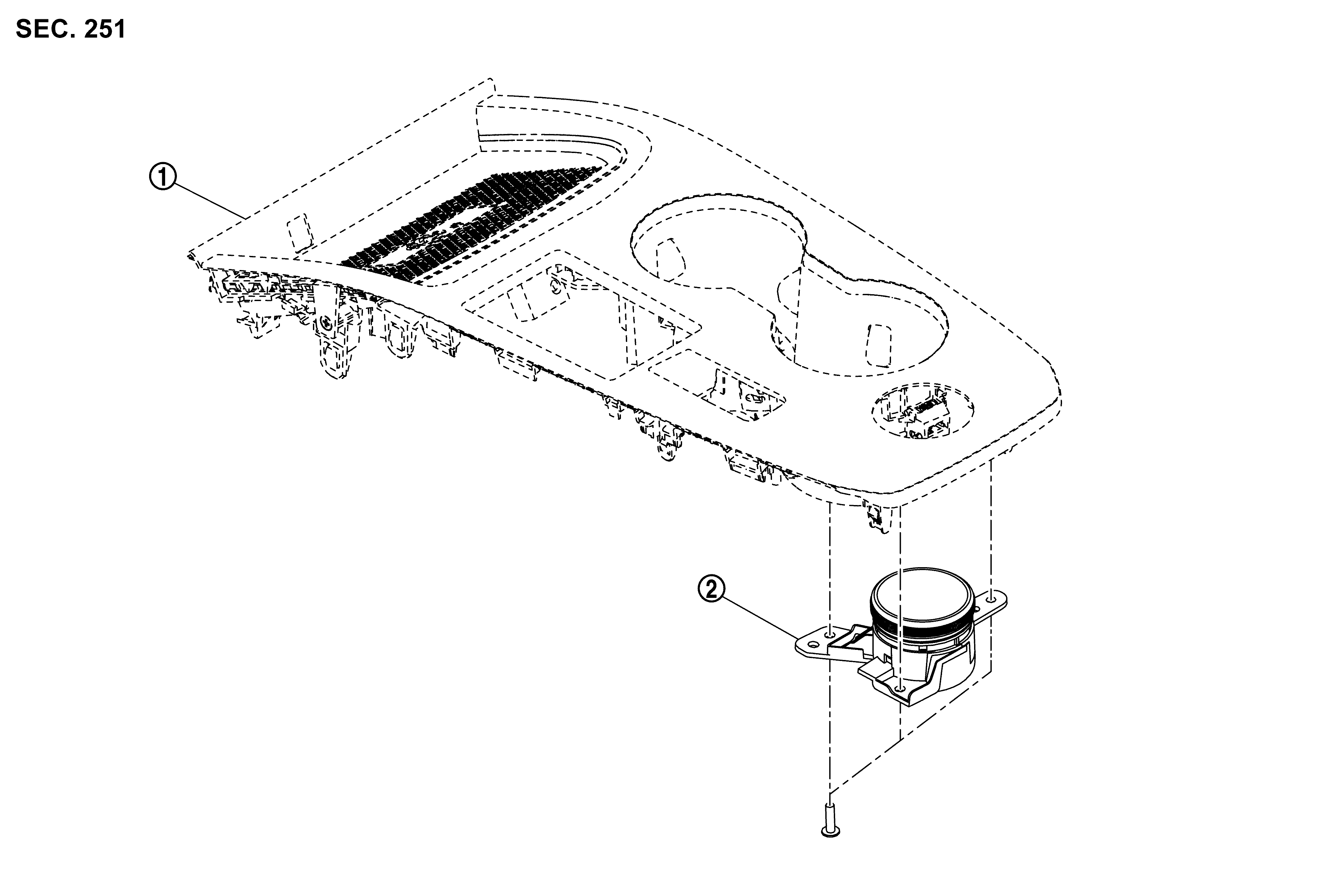

AWD MODELS

GNSDB131351Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Console finisher SYMBOL Drive mode select switch
