Exploded View

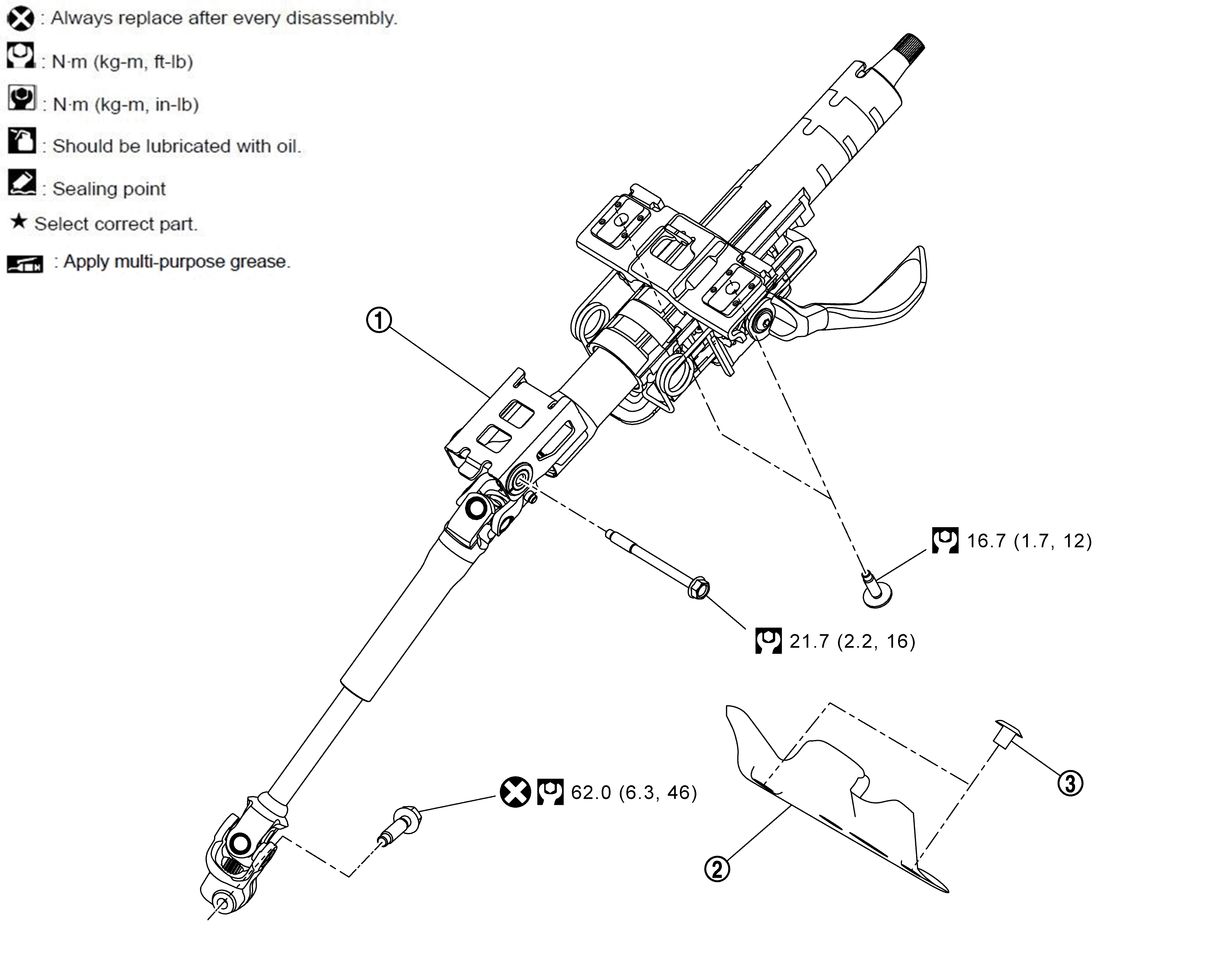

Fig 1: Steering Column With Torque Specifications
GNSDB130020Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Steering column assembly SYMBOL Steering shaft lower cover SYMBOL Clip
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : Always replace after every disassembly.
