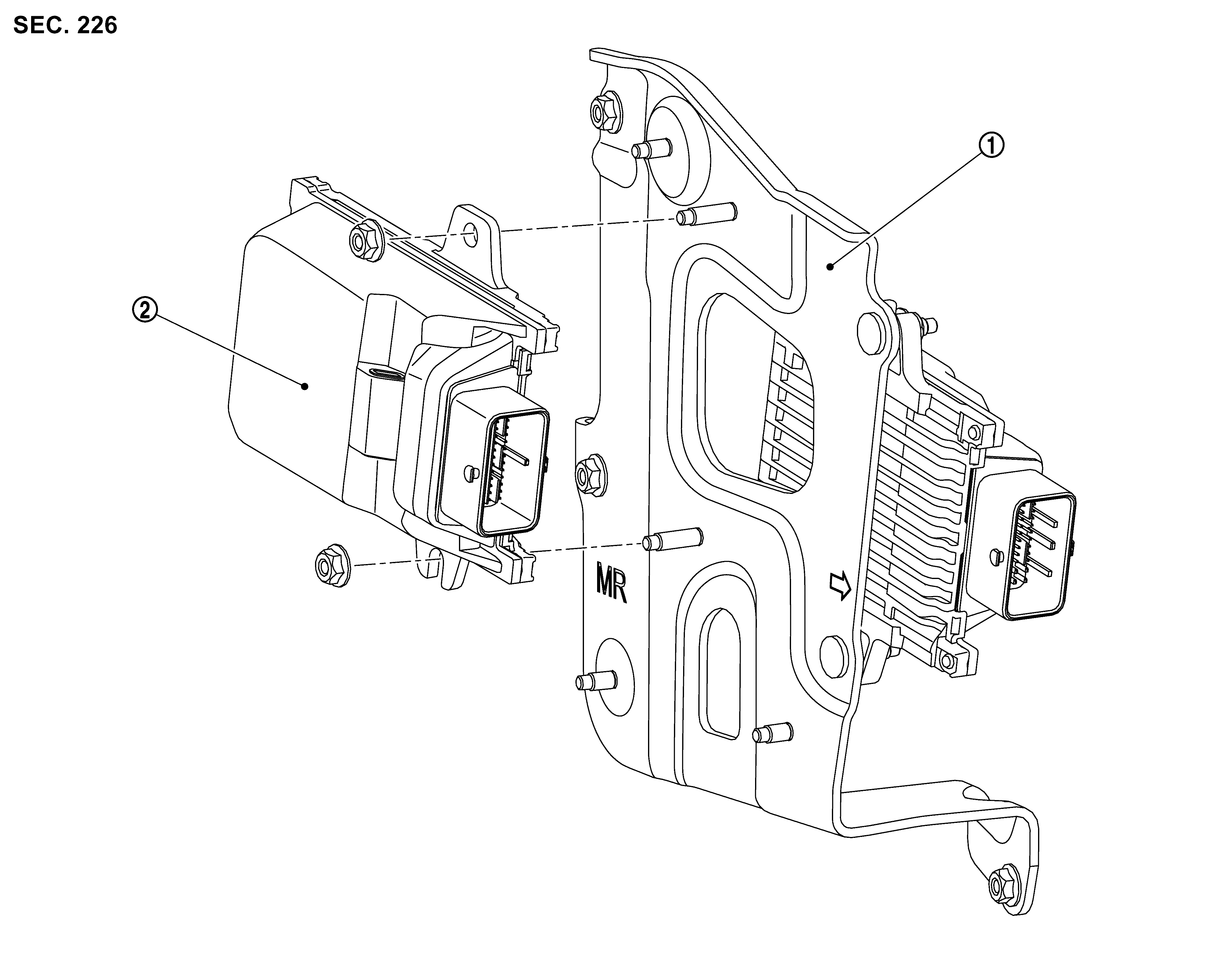

VCR CONTROL MODULE : Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Bracket
2.
VCR control module
Courtesy of NISSAN NORTH AMERICA, INC.
