Exploded View

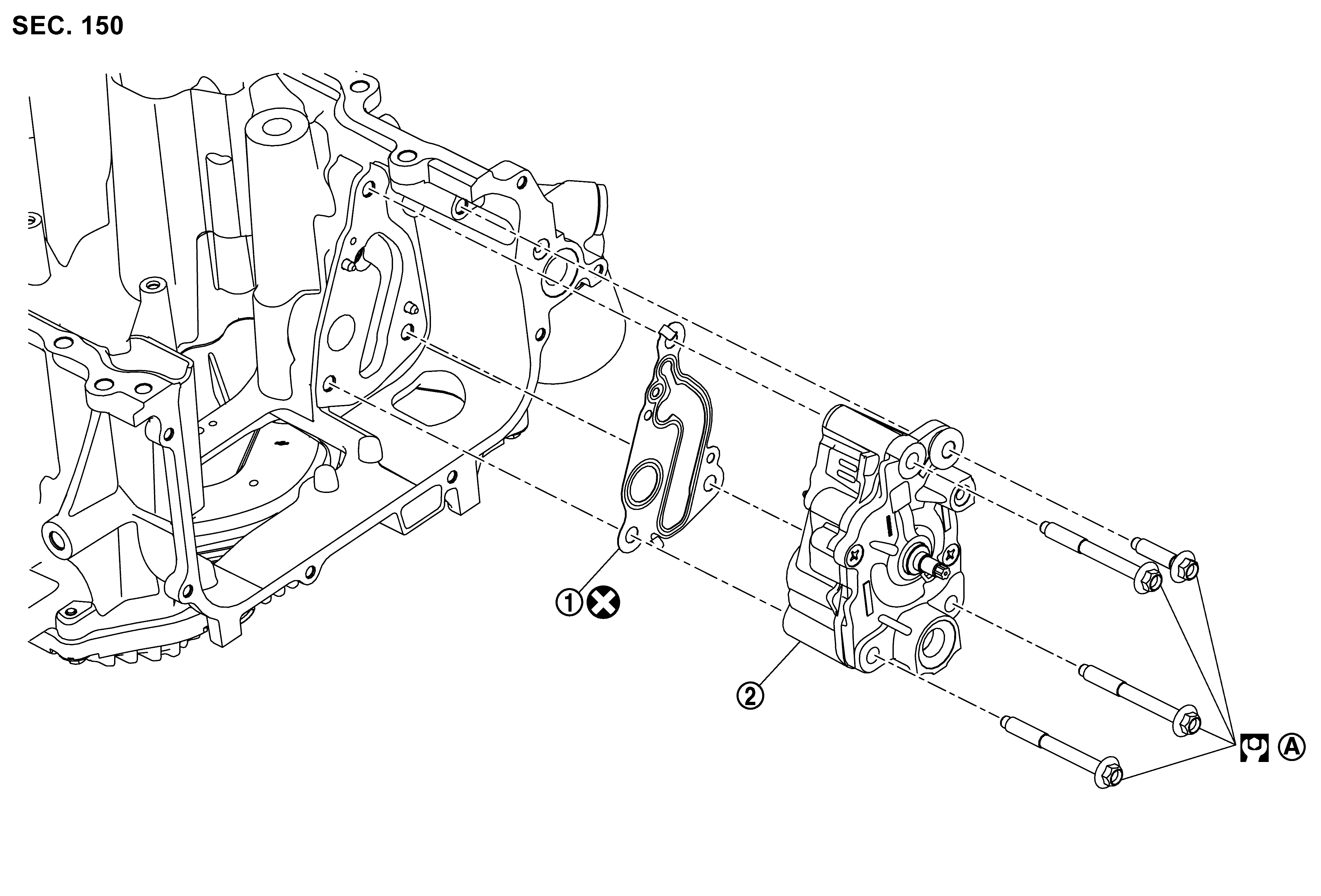

GNSDB131621Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Gasket SYMBOL Oil pump
SYMBOL Comply with the assembly procedure when tightening. Refer to Removal and Installation
SYMBOL : Always replace after every disassembly.
SYMBOL : N.m (kg-m, ft-lb)
