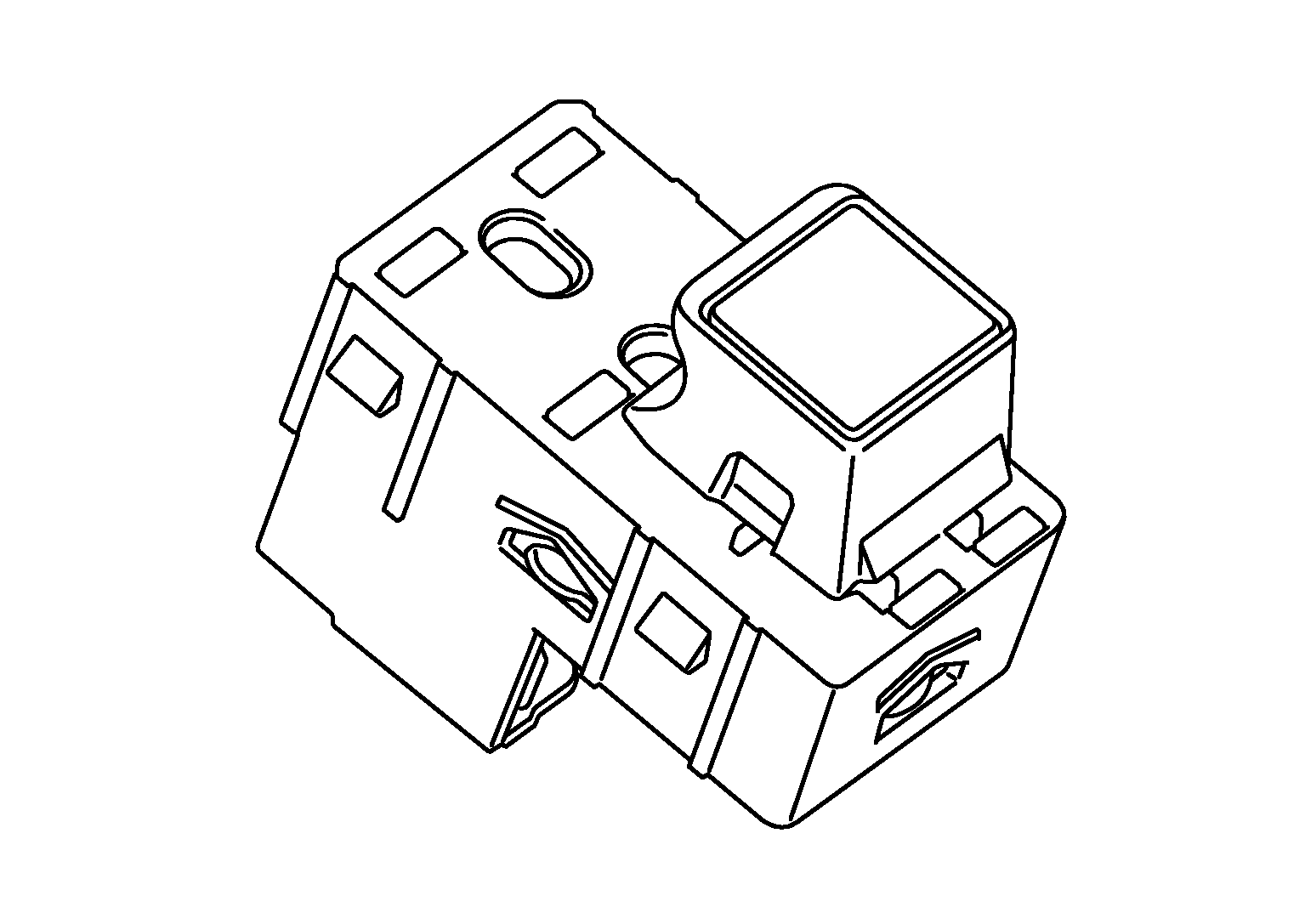

Rear Power Window Switch

Courtesy of NISSAN NORTH AMERICA, INC.

• Rear power window switch is installed to rear door finisher. Refer to Component Location .
• Rear power window switch LH/RH controls each rear power window motor.
• Transmits signal to each rear power window motor.

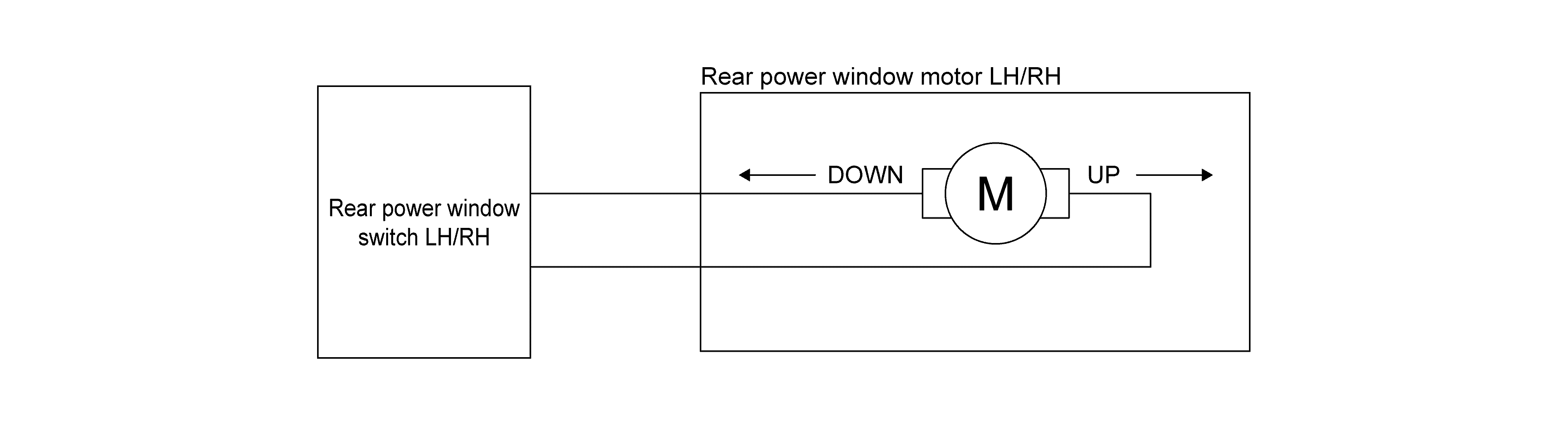

COMPONENT OPERATION

• When rear power window switch LH/RH is operated, it transmits signal to each rear power window motor.

  Courtesy of NISSAN NORTH AMERICA, INC.

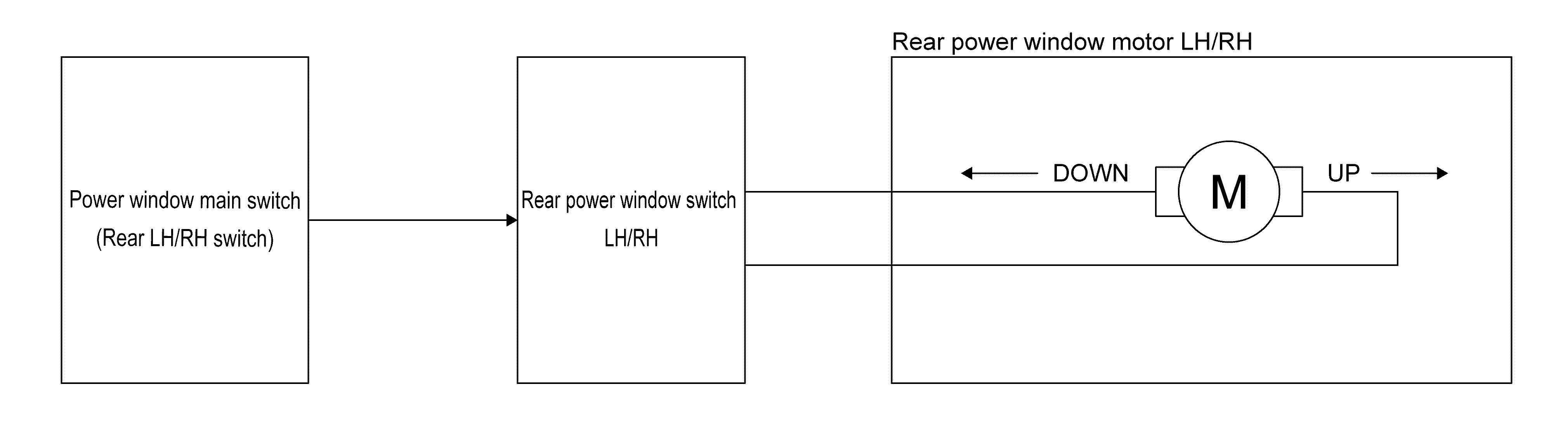

• Transmits the operation signal from power window main switch (rear LH/RH switch) to the each rear power window motor.

  Courtesy of NISSAN NORTH AMERICA, INC.
