Component Location

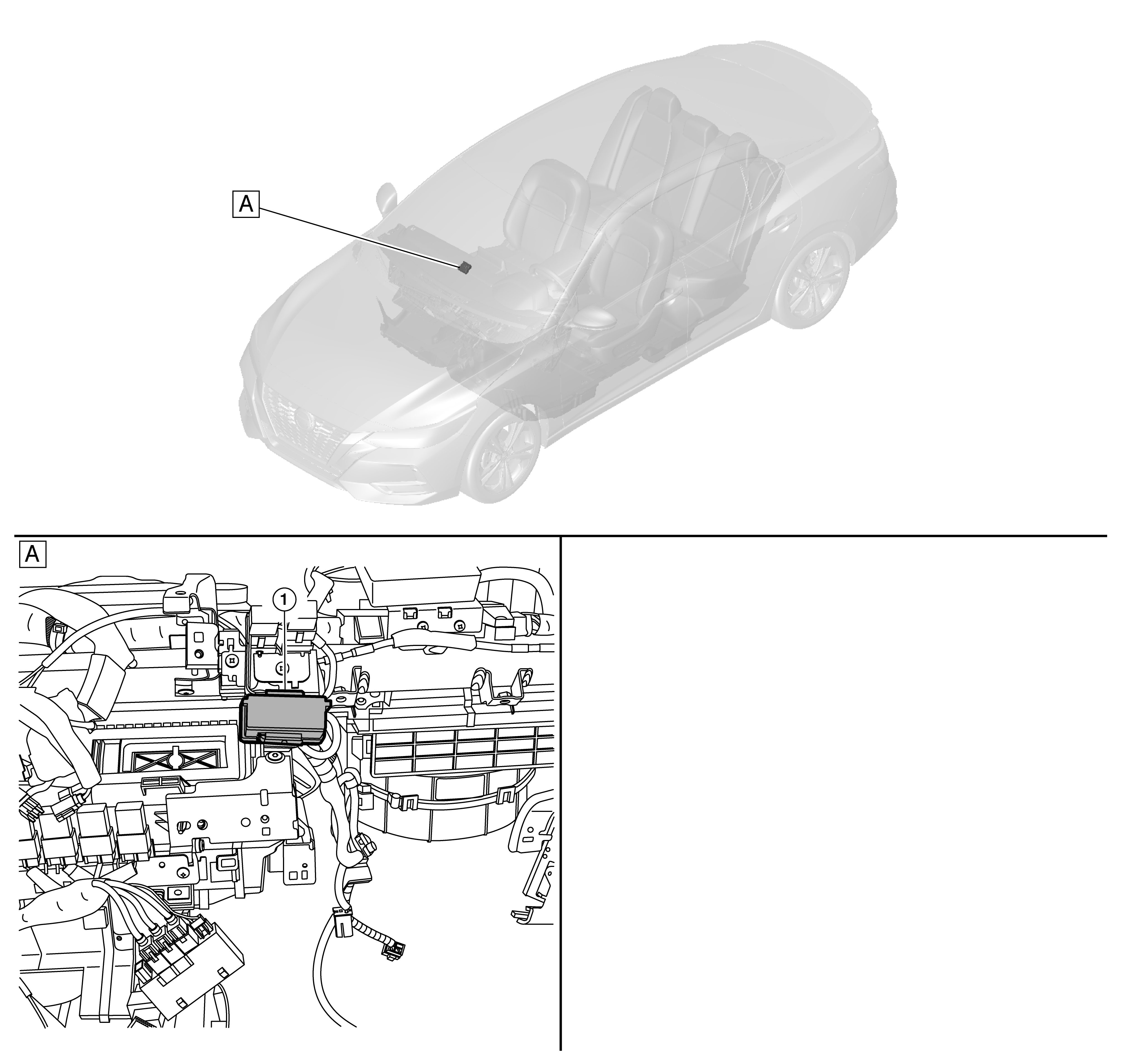

GNSDB133232Courtesy of NISSAN NORTH AMERICA, INC.
A. Instrument panel center area (view with instrument panel removed)
No. Component Function
1. ADAS (Advanced Driver Assistance System) control unit 2 Refer to ADAS Control Unit 2 .
