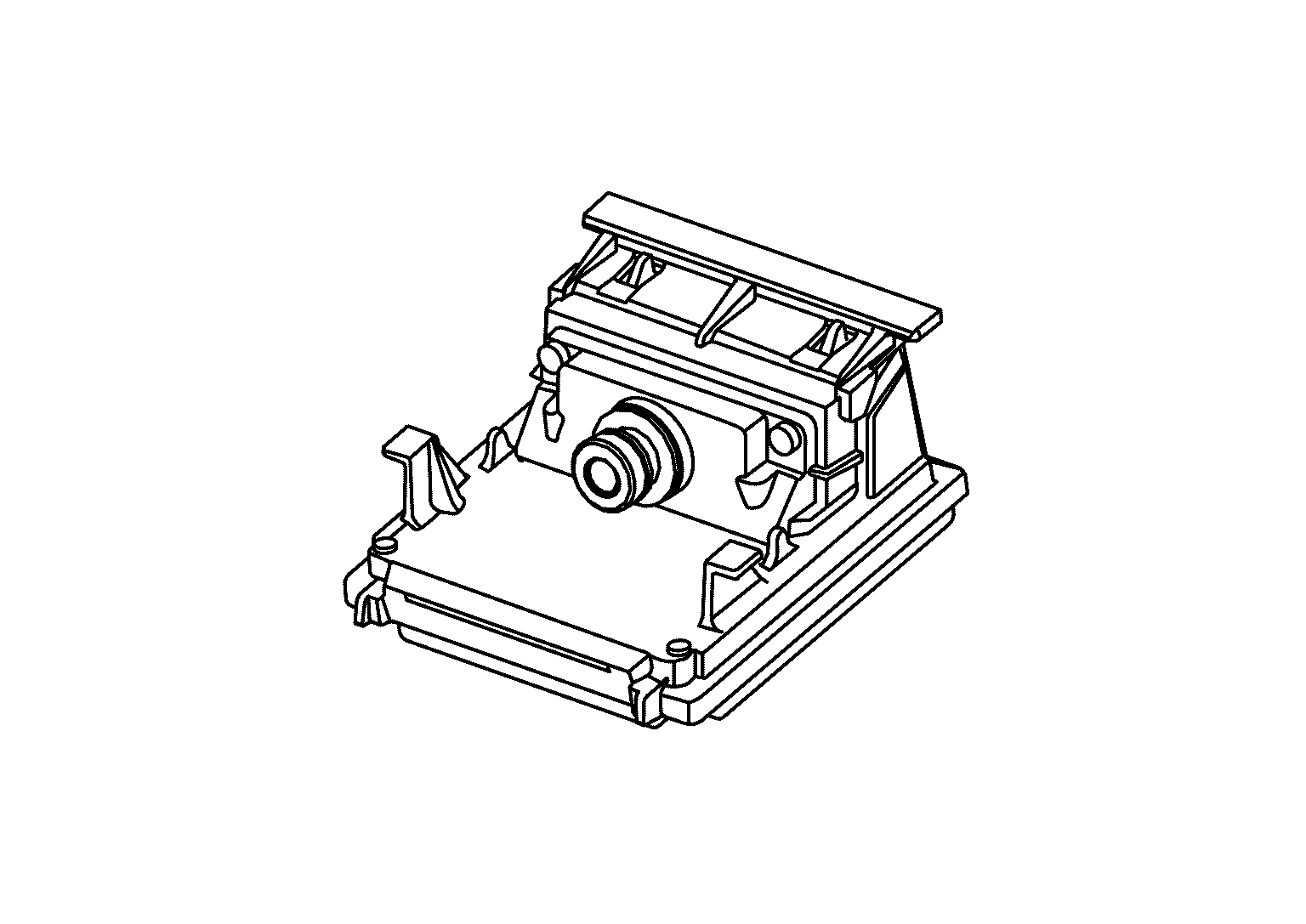

Front Camera Unit
WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
FUNCTIONS WITHIN THE SYSTEM
Front camera unit the transmits the detected information to ADAS control unit 2 via CAN communication.
INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM
- The multi-sensing front camera that can avoid various risks lurking forward and sideward with one camera is adopted.
- Front camera unit is installed to windshield, and detects the lane marker in travel lane and pedestrian ahead.
- When there is vehicle or pedestrian, front camera unit measures the distance from them.
INDIVIDUAL OPERATION
- AEB: Refer to System Description .
- LDW: Refer to System Description .
- TSR: Refer to System Description .
PARTS LOCATION
Refer to Component Location .
