Exploded View

WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

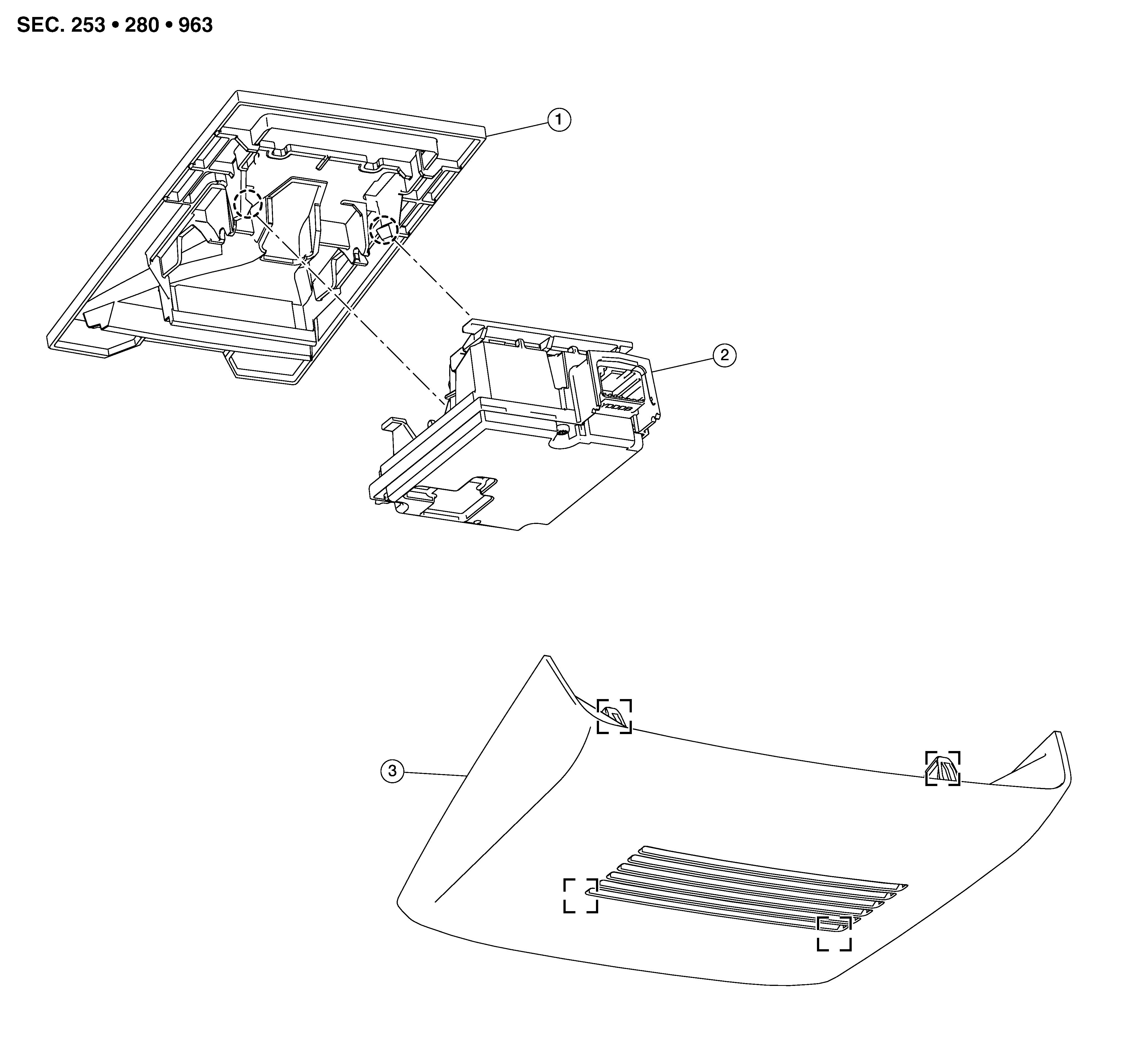

GNSDB48116Courtesy of NISSAN
1. Front camera unit bracket 2. Front camera unit 3. Front camera cover
SYMBOL Metal clip SYMBOL Pawl
