Exploded View

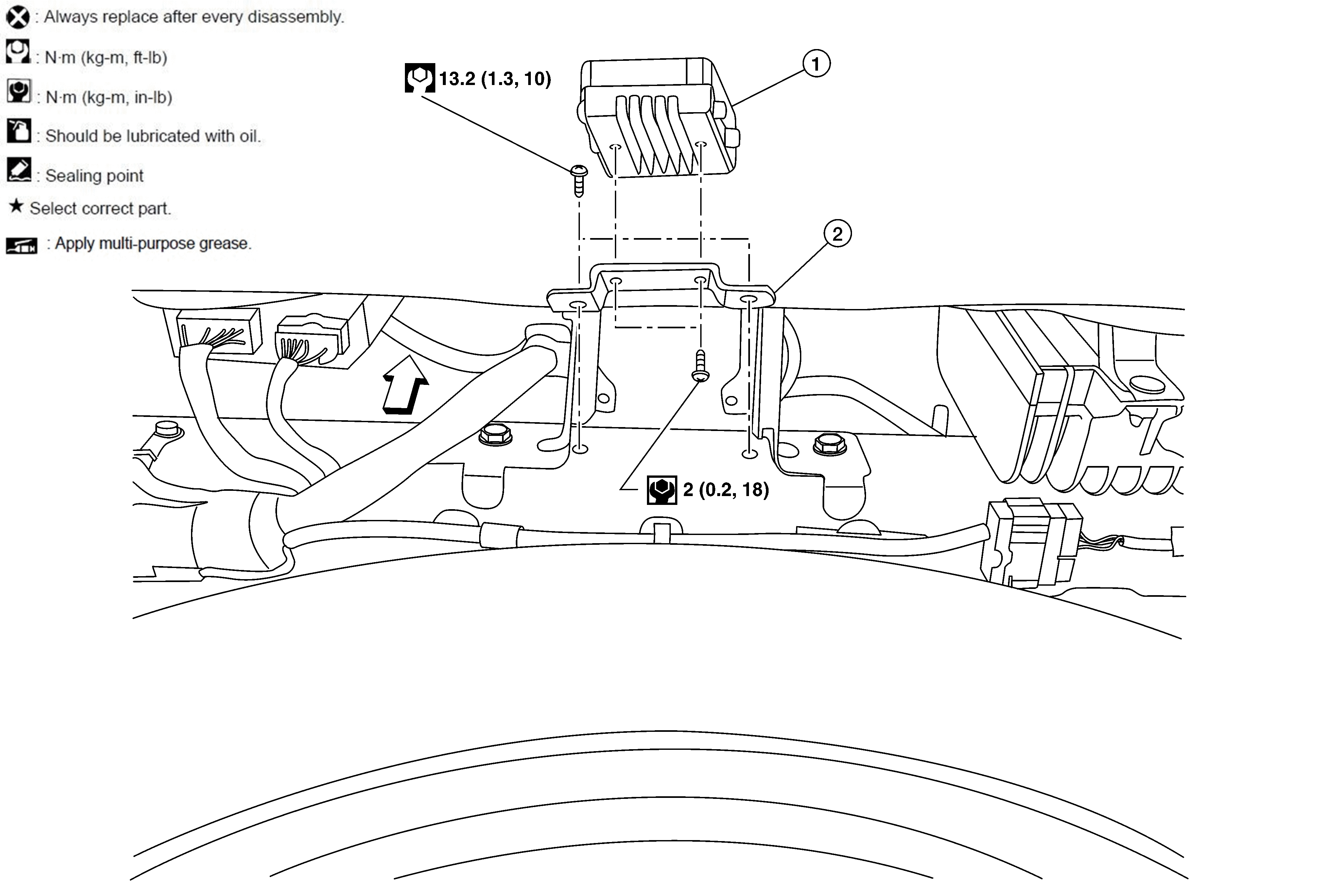

Fig 1: Fuel Pump Control Module With Torque Specifications
GNSDB126056Courtesy of NISSAN NORTH AMERICA, INC.
1. Fuel pump control module (FPCM) 2. FPCM bracket SYMBOL Front
