Work Procedure

  1. CHECK IGNITION TIMING

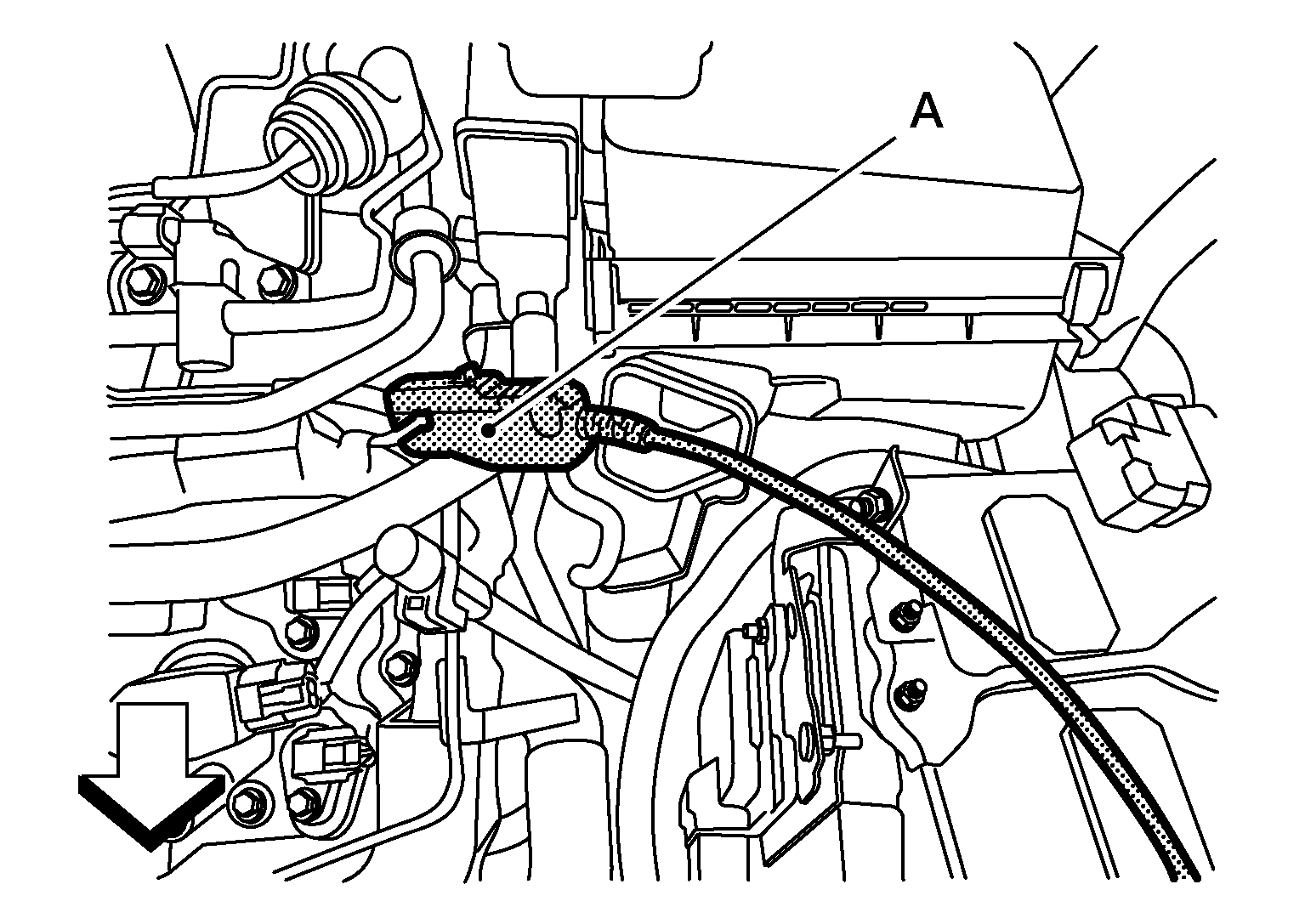

    1. Attach timing light to loop wires as shown, below.
      GNSDB126703Courtesy of NISSAN NORTH AMERICA, INC.
      (A) : Timing light
      SYMBOL : Vehicle front

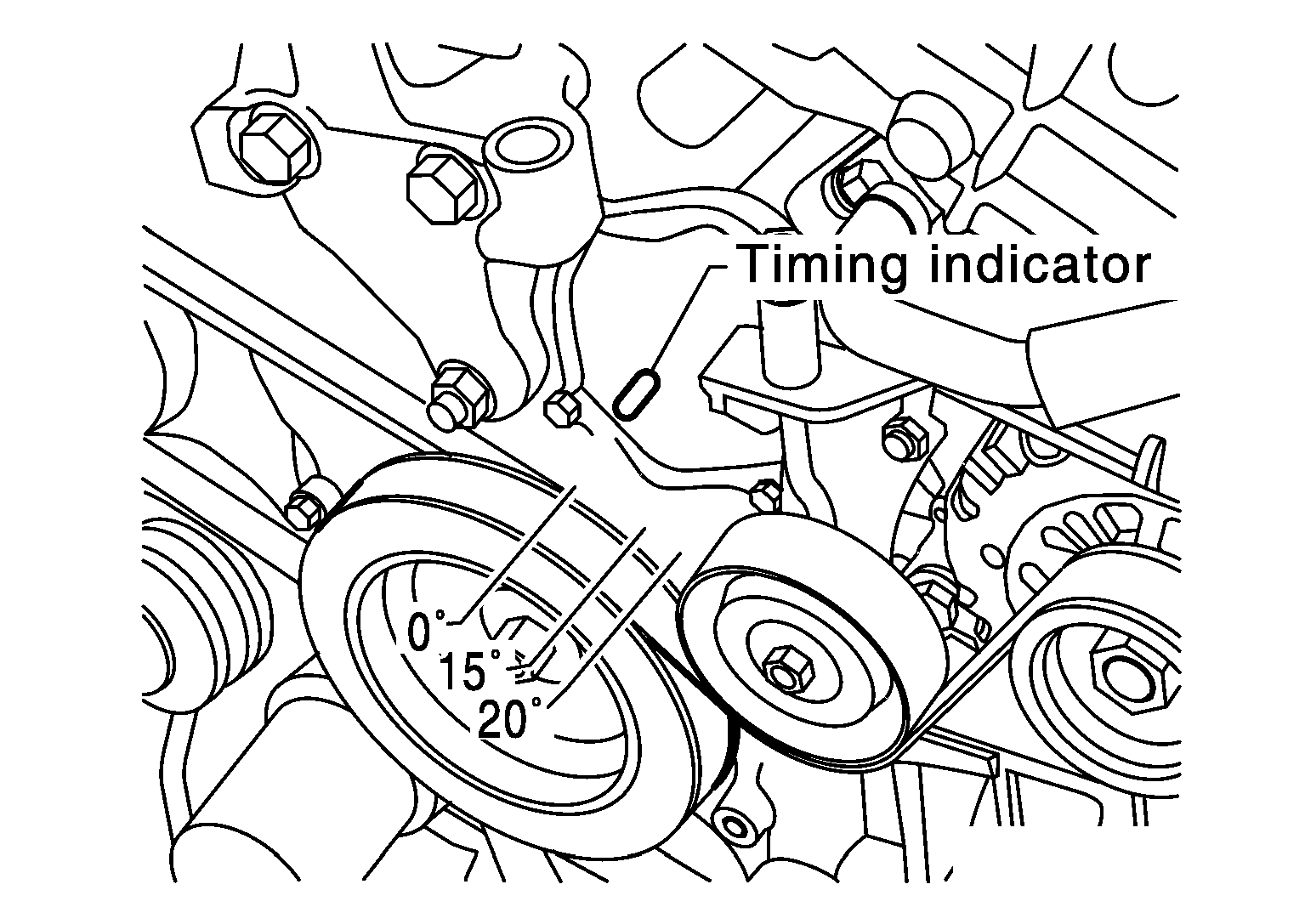

    2. Check ignition timing.
      GNSDB125247Courtesy of NISSAN NORTH AMERICA, INC.

    >>

    INSPECTION END
