Ignition Timing: Inspection

CHECK IGNITION TIMING

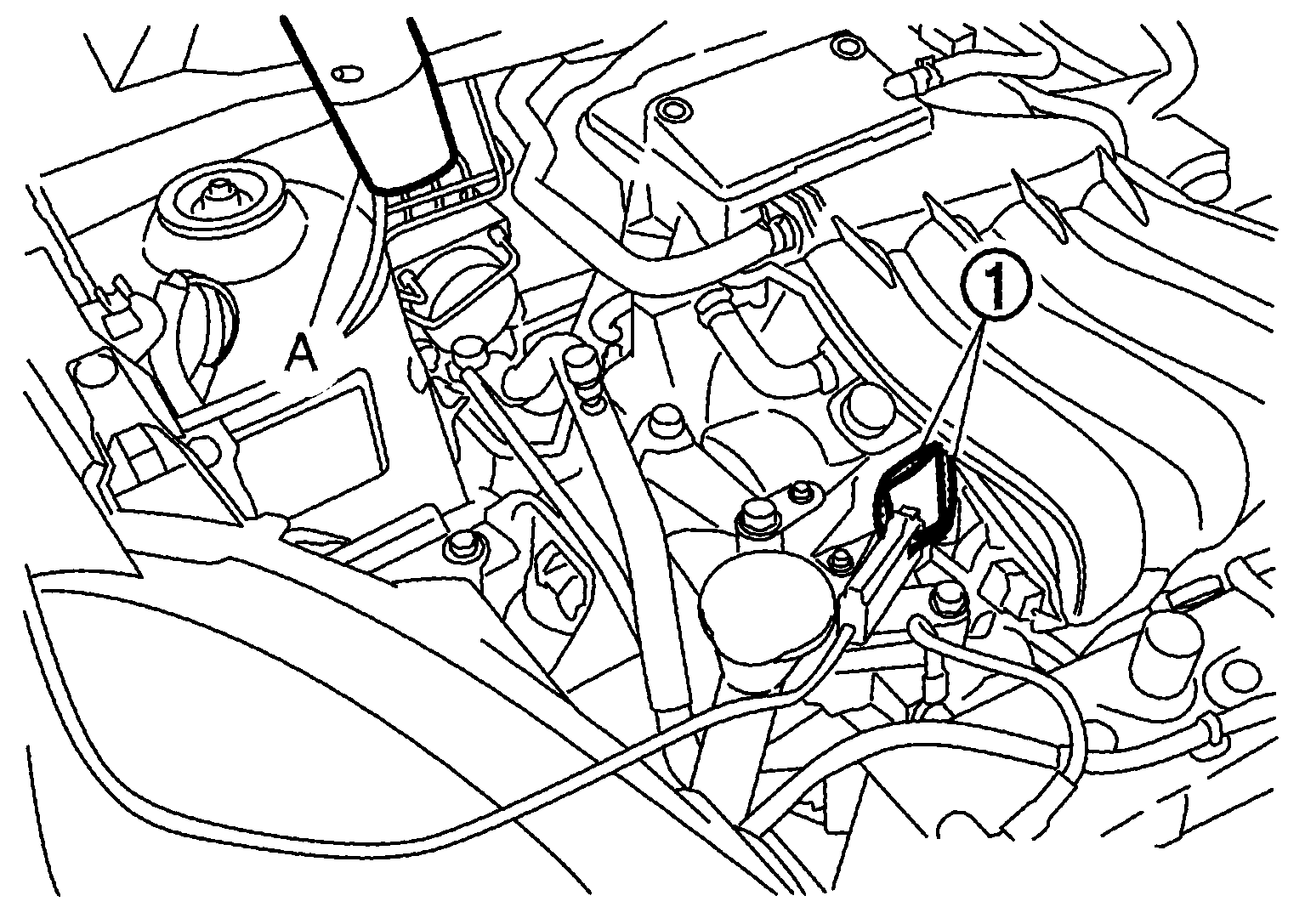

Attach timing light (A) to loop wire (1) as shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

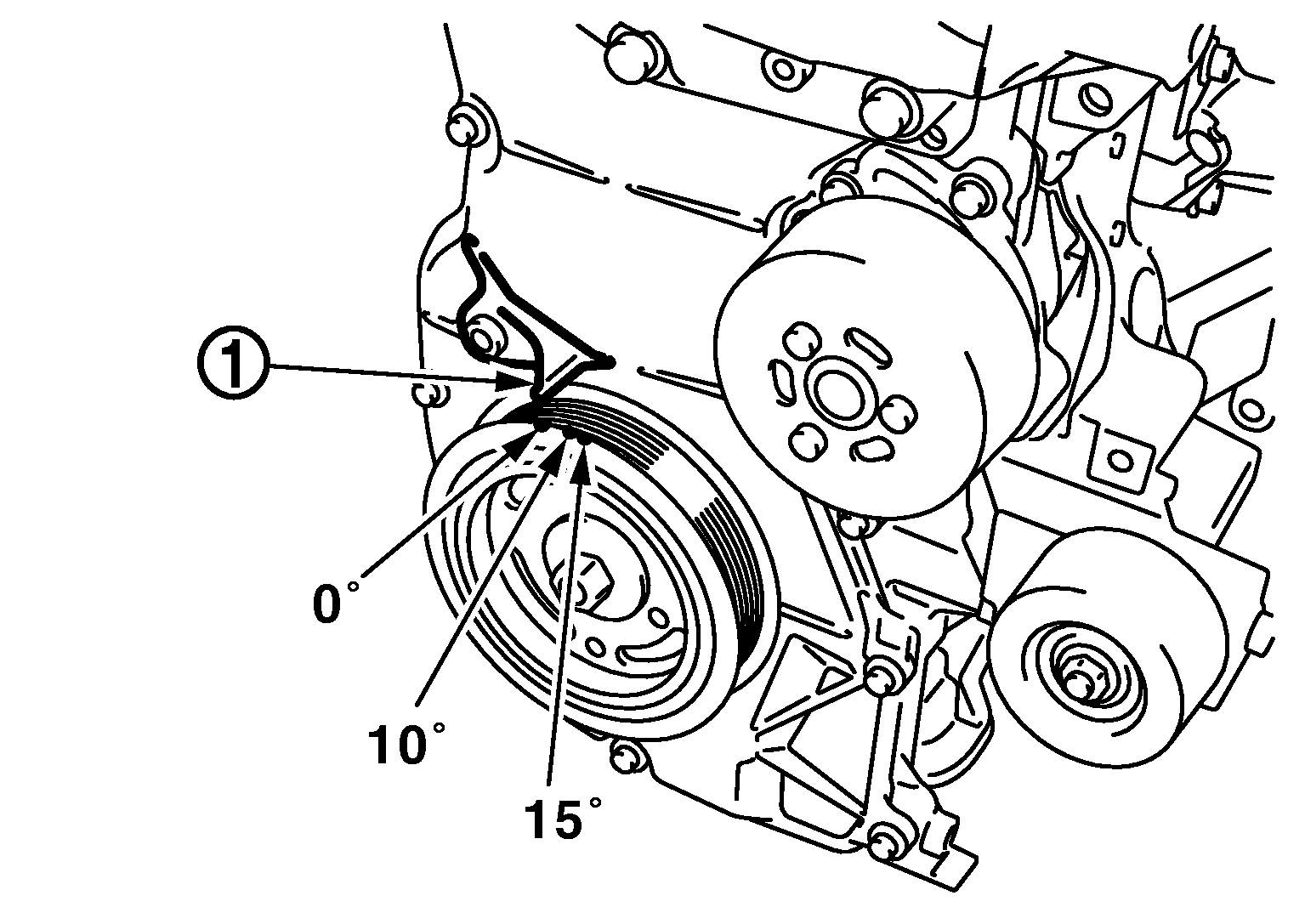

Check ignition timing.

Courtesy of NISSAN NORTH AMERICA, INC.

1 : Timing indicator
