Exploded View

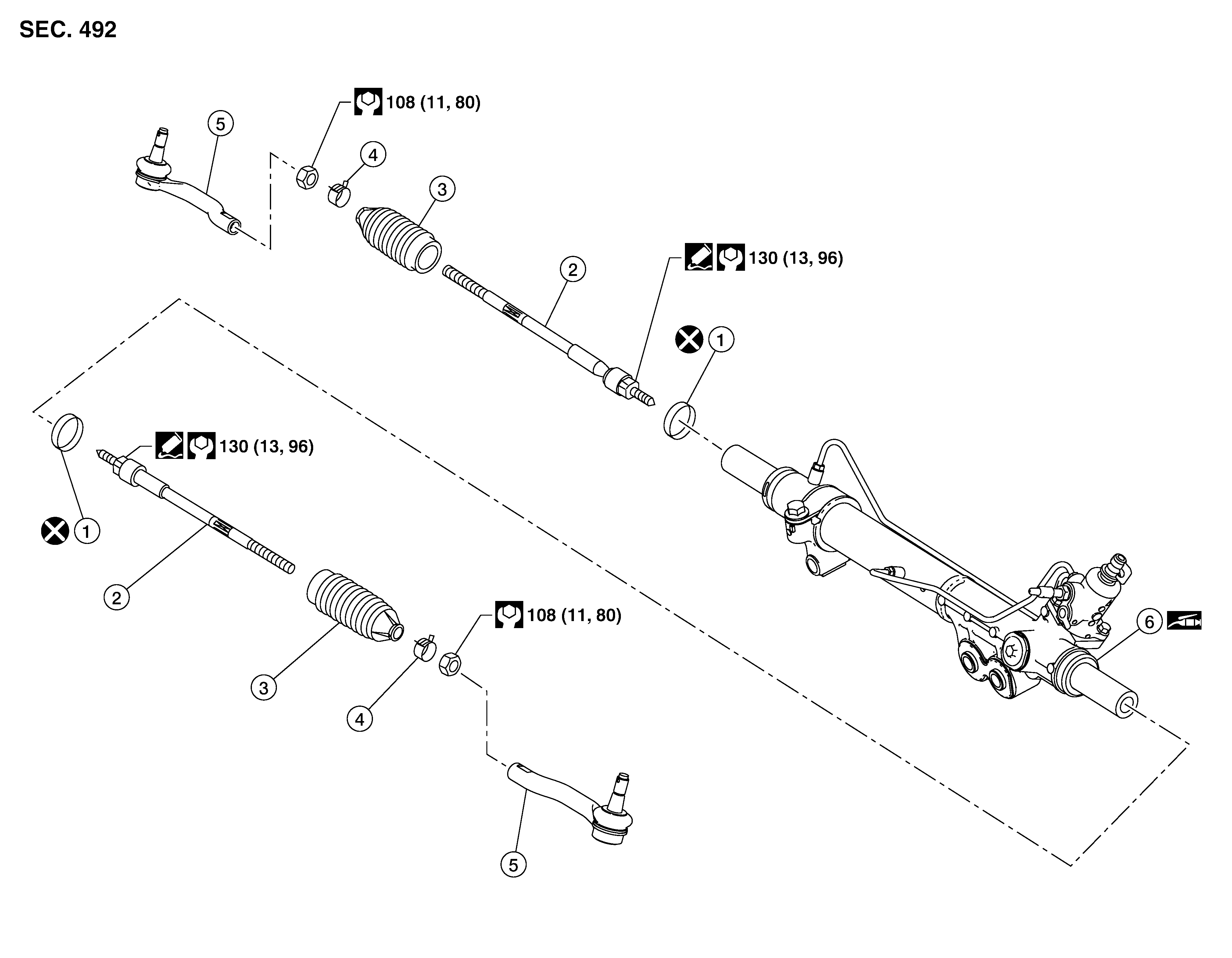

Fig 1: Power Steering Gear And Linkage With Torque Specifications
GNSDB135275Courtesy of NISSAN NORTH AMERICA, INC.
1. Boot clamp 2. Inner socket 3. Boot
4. Boot clamp 5. Outer socket 6. Gear housing assembly
