Exploded View

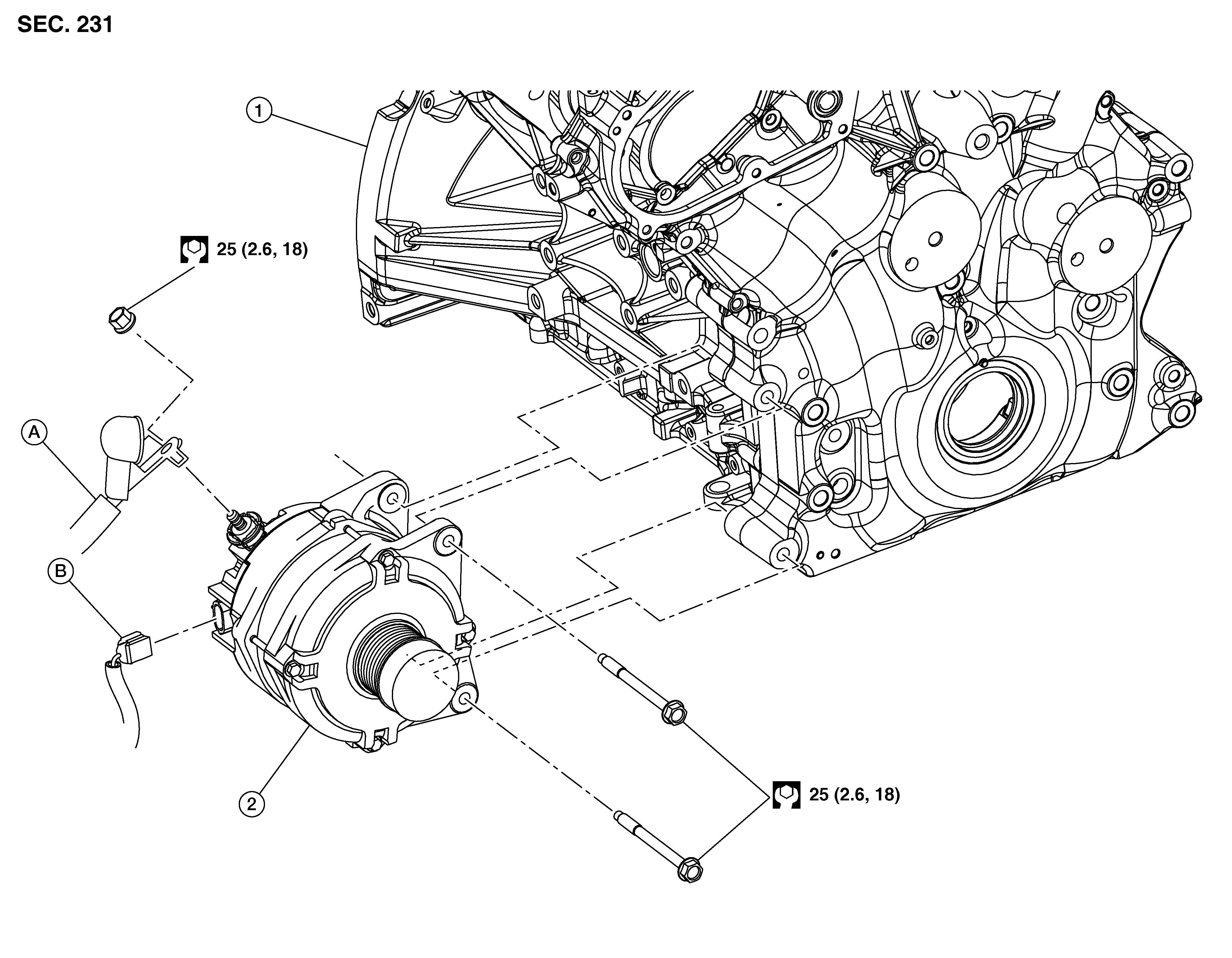

Fig 1: Generator With Torque Specifications
GNSDB135550Courtesy of NISSAN NORTH AMERICA, INC.
1. Cylinder block 2. Generator A. "B" terminal harness
B. Harness connector
