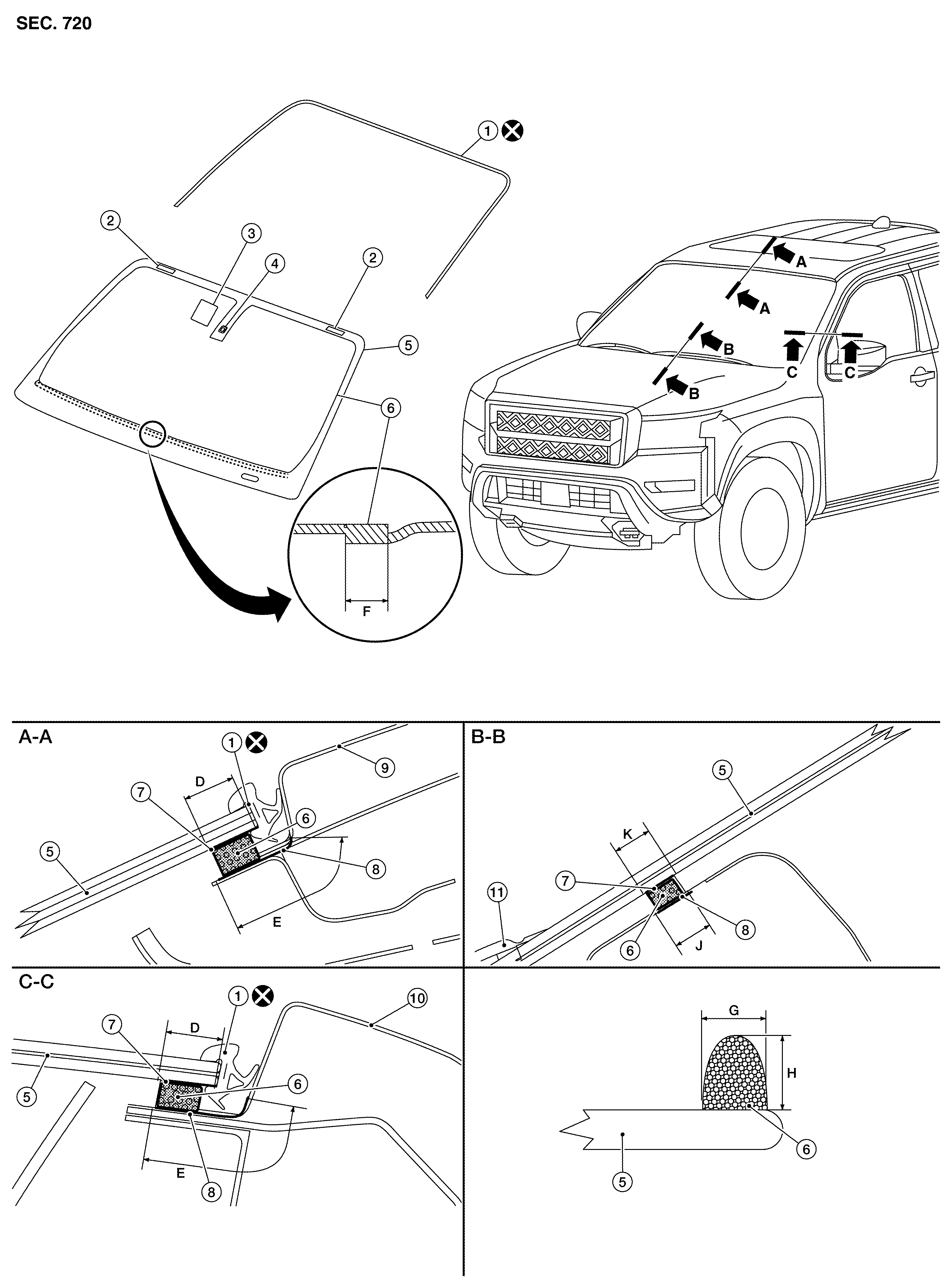

Exploded View
| 1. | Windshield glass molding | 2. | Spacer | 3. | Front camera unit bracket (if equipped) |
| 4. | Mirror base | 5. | Windshield glass | 6. | Adhesive |
| 7. | Glass primer | 8. | Painted surface primer | 9. | Roof panel |
| 10. | Body side outer | 11. | Cowl top cover | D. | 14 mm (0.6 in) |
| E. | 22 mm (0.87 in) | F. | 120 mm (4.7 in) | G. | 7 mm +2, -0 mm (0.28 in +0.08, -0 in) |
| H. | 12 mm +2, -0 mm (0.47 in +0.08, -0 in) | J. | 19 mm (0.7 in) | K. | 26 mm (1.0 in) |
