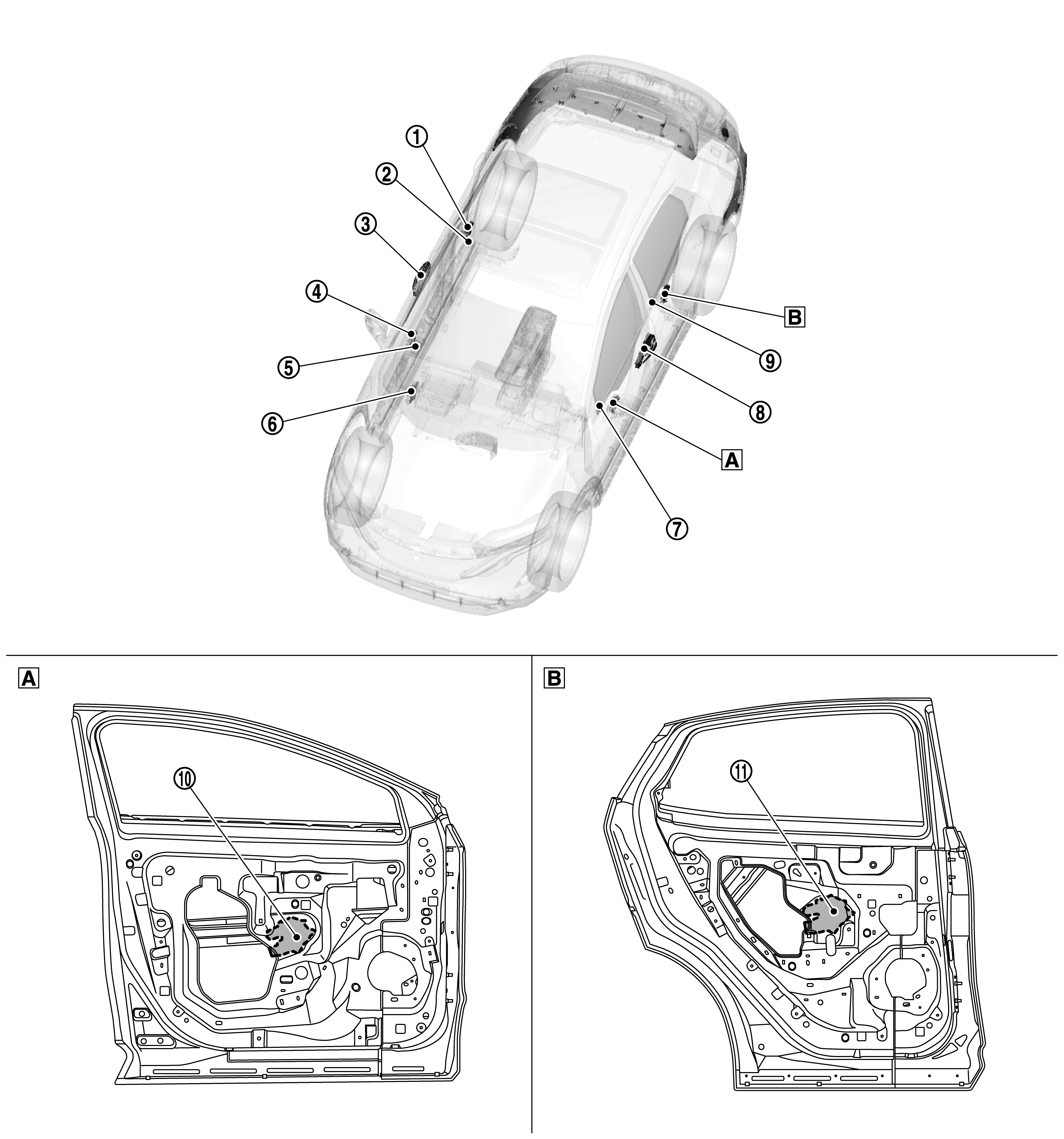

Component Location

GNSDB154398Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Rear power window motor RH SYMBOL Rear power window switch RH SYMBOL Front door lock assembly (passenger side) (door switch)
SYMBOL Front power window motor (passenger side) SYMBOL Front power window switch (passenger side) SYMBOL BCM Refer to Component Location .
SYMBOL Power window main switch SYMBOL Front door lock assembly (driver side) (door switch) SYMBOL Rear power window switch LH
SYMBOL Front power window motor (driver side) SYMBOL Rear power window motor LH
SYMBOL View with front door finisher removed SYMBOL View with rear door finisher removed
