Component Description

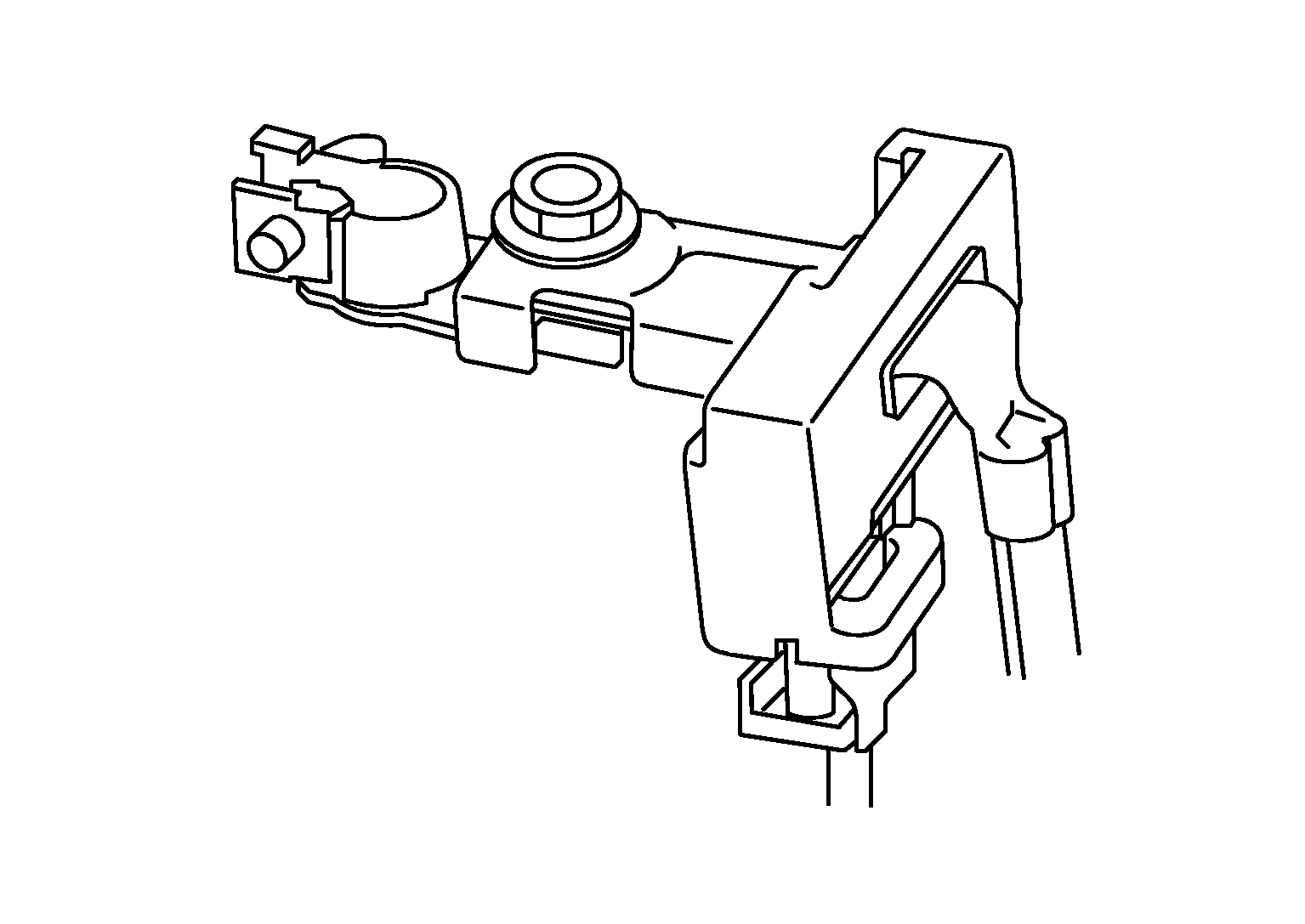

BATTERY CURRENT SENSOR

• The battery current sensor is installed to the battery negative cable.

  Courtesy of NISSAN NORTH AMERICA, INC.

• The sensor measures the charging/discharging current of the battery.

BATTERY TEMPERATURE SENSOR

• Battery temperature sensor is integrated in battery current sensor.

  Courtesy of NISSAN NORTH AMERICA, INC.

• The sensor measures temperature around the battery.
• The electrical resistance of the thermistor decreases as temperature increases.
