Removal and Installation

REMOVAL

Remove the center exhaust tube. Refer to Exploded View .
Disconnect harness connector from EVAP control system pressure sensor.

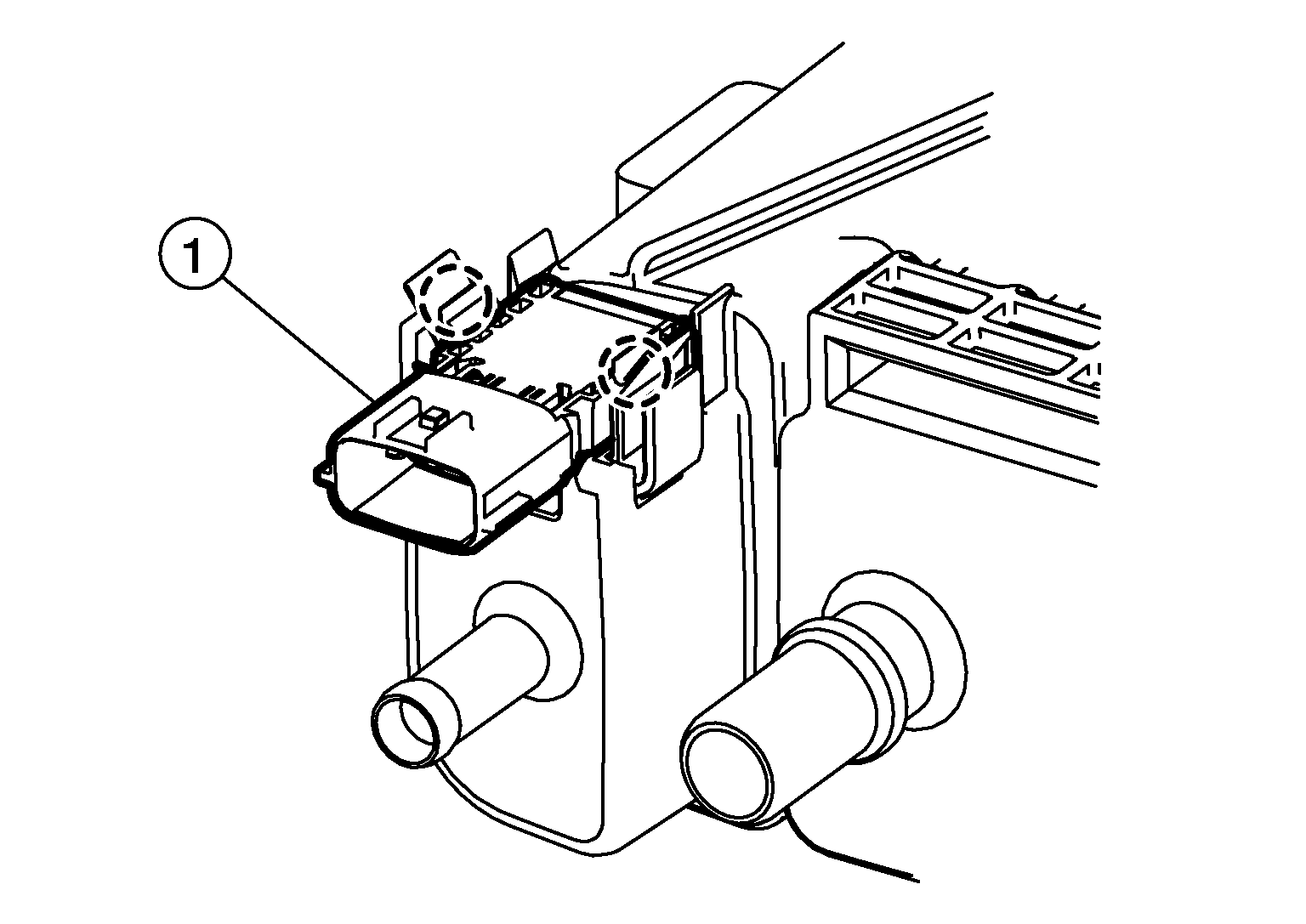

Release pawls and remove EVAP control system pressure sensor (1).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Do not reuse O-ring when installing new EVAP control system pressure sensor. The EVAP control system pressure sensor and O-ring are serviced as an assembly.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring when installing new EVAP control system pressure sensor. The EVAP control system pressure sensor and O-ring are serviced as an assembly.

NOTE:

Apply new engine oil to EVAP control system pressure sensor O-ring.
