Exploded View

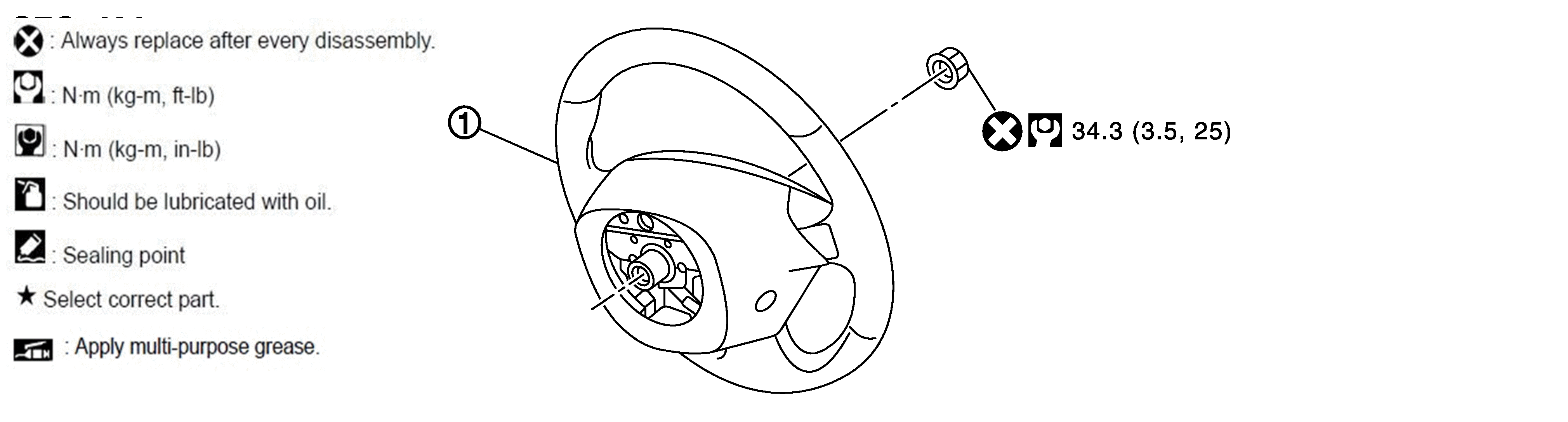

Fig 1: Steering Wheel With Torque Specifications
GNSDB145049Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Steering wheel
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : Always replace after every disassembly.
