Exploded View

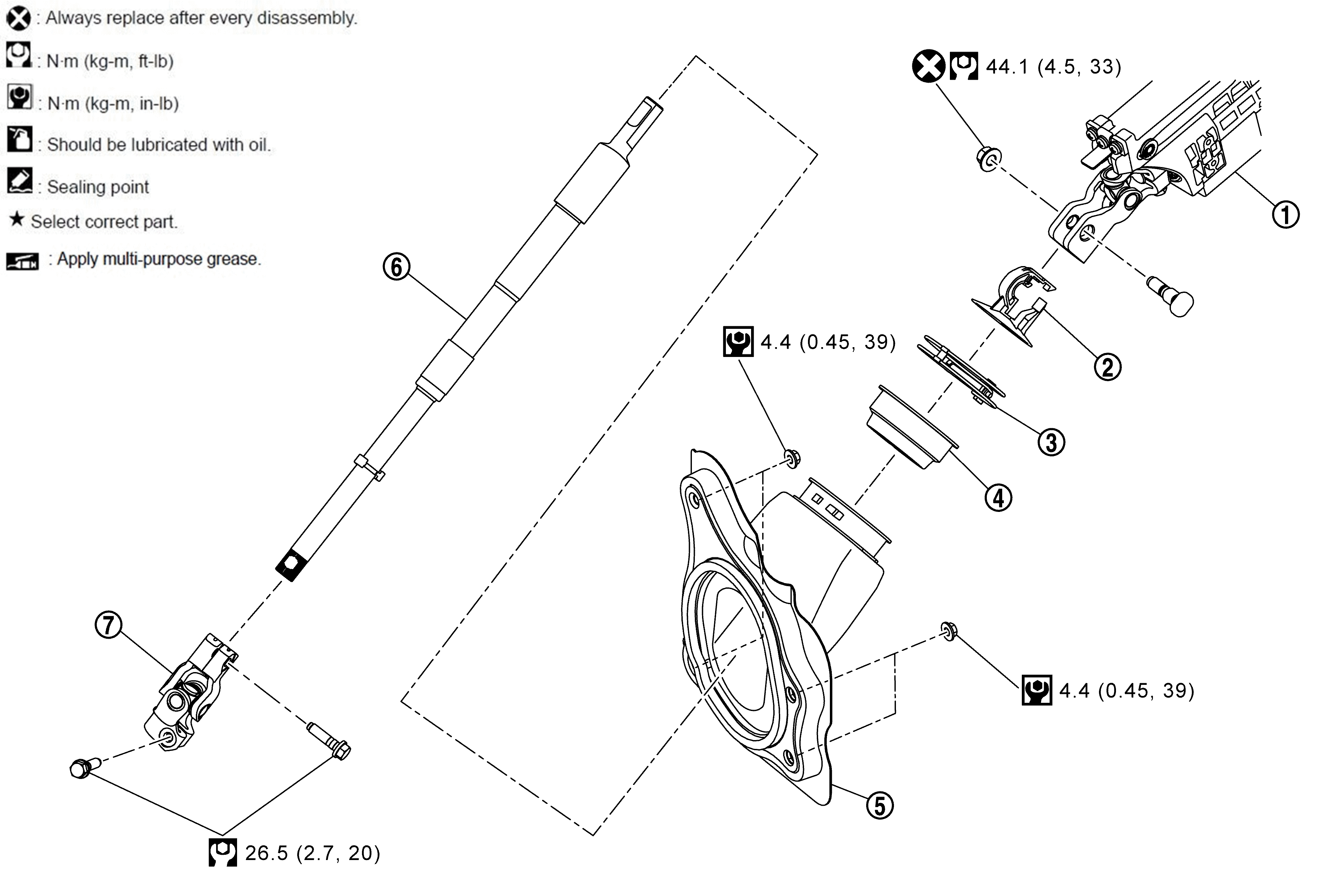

Fig 1: Lower Shaft With Torque Specifications
GNSDB155912Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Steering column assembly SYMBOL Collar SYMBOL Clamp
SYMBOL Hole cover seal SYMBOL Hole cover SYMBOL Lower shaft
SYMBOL Lower joint
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : Always replace after every disassembly.
