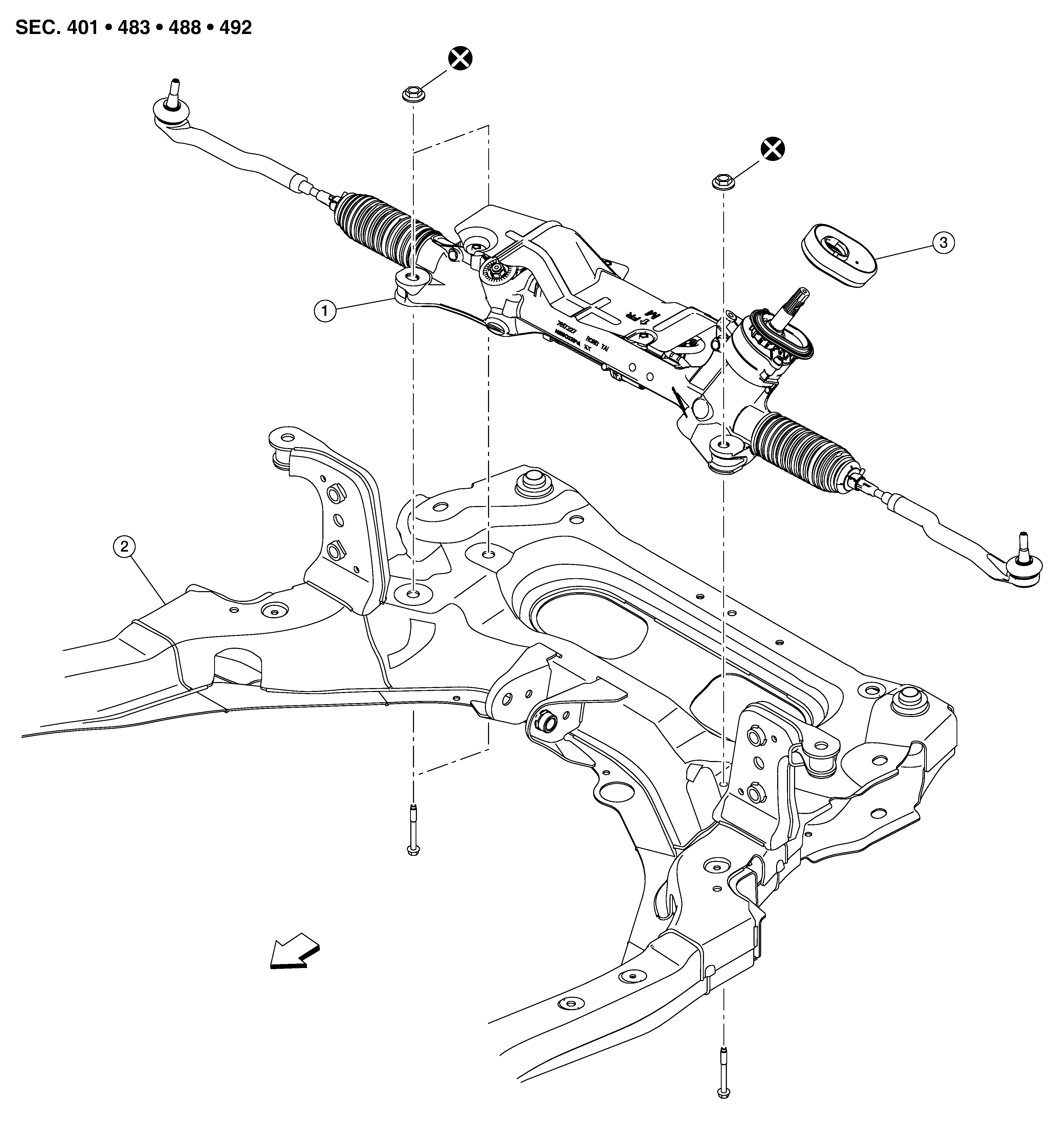

Exploded View

REMOVAL

GNSDB46783Courtesy of NISSAN
1. Steering gear and linkage assembly 2. Front suspension member 3. Seal
SYMBOL Front
