Exploded View

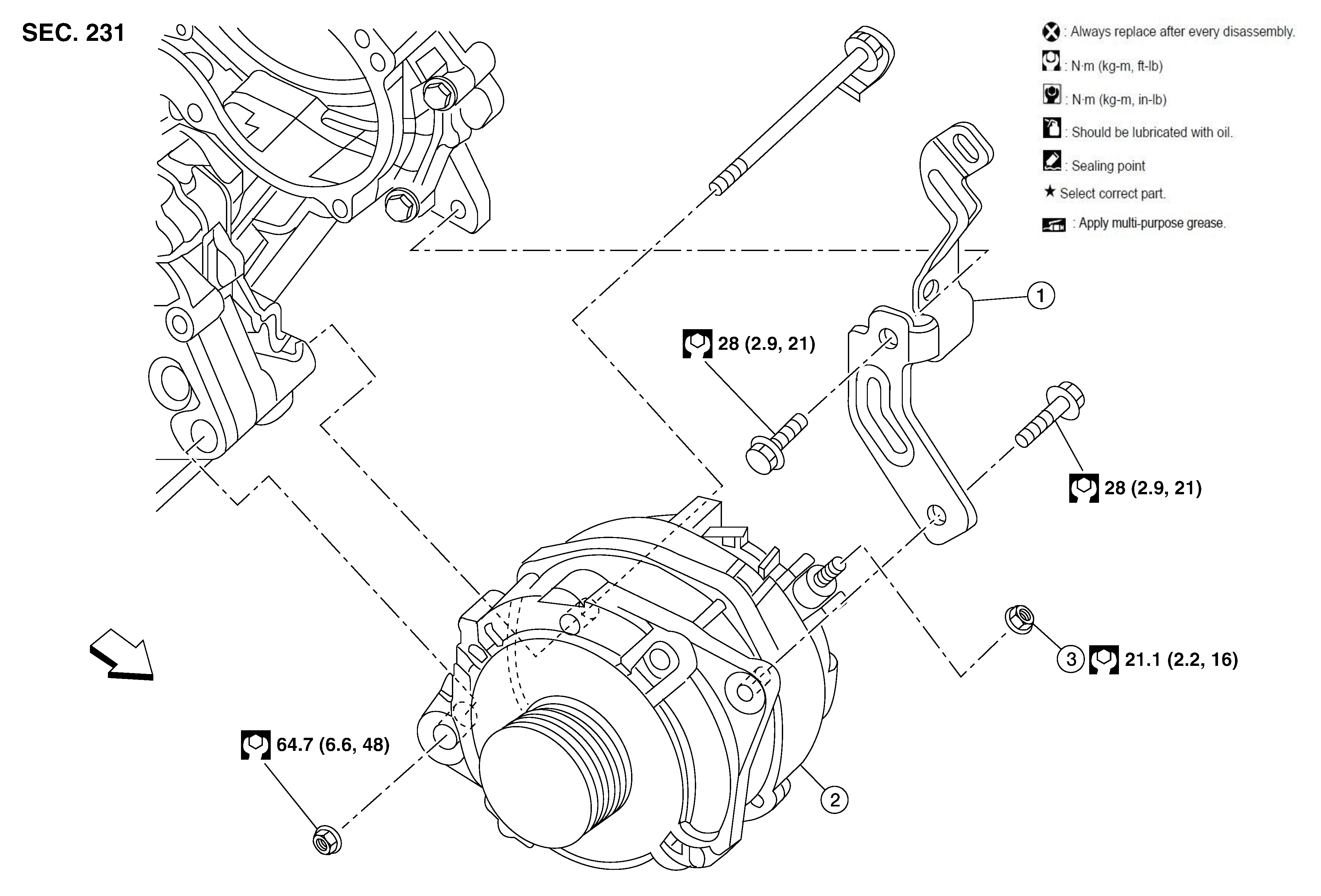

Fig 1: Generator Components with Torque Specifications
GNSDB55587SYMBOLCourtesy of NISSAN
1. Generator bracket 2. Generator 3. "B" terminal nut
SYMBOL Front
