Exploded View

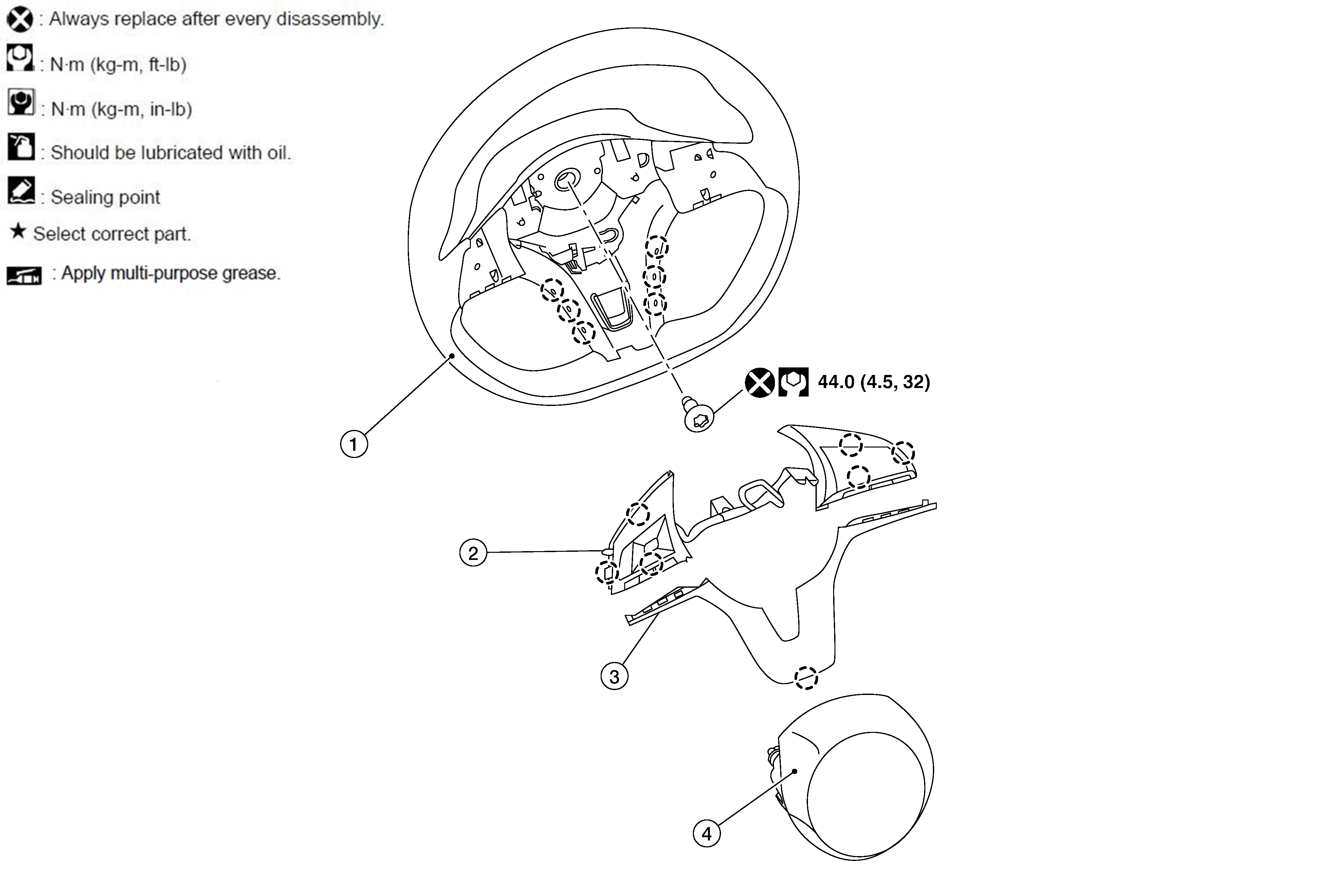

Fig 1: Steering Wheel With Torque Specifications
GNSDB52475Courtesy of NISSAN
1. Steering wheel 2. Steering switches 3. Steering wheel finisher
4. Driver air bag module SYMBOL Pawl
