Component Location

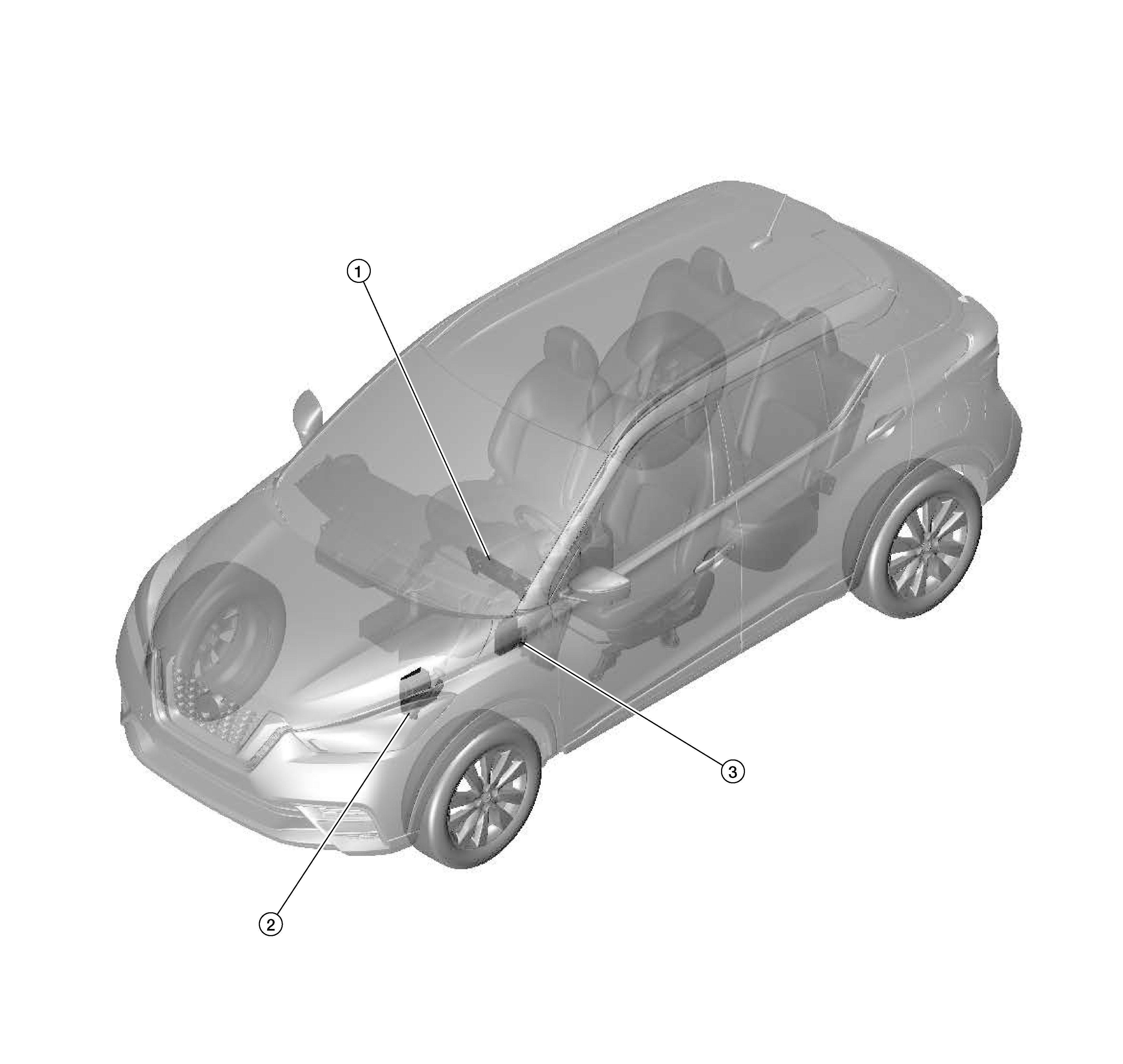

GNSDB51879Courtesy of NISSAN
No. Component Function
1. Combination meter Refer to Combination Meter (type A) or Combination Meter (type B) for detailed component location.
2. IPDM E/R (Intelligent Power Distribution Module Engine Room) Refer to System Description .
3. BCM (Body Control Module) Refer to System Description .
