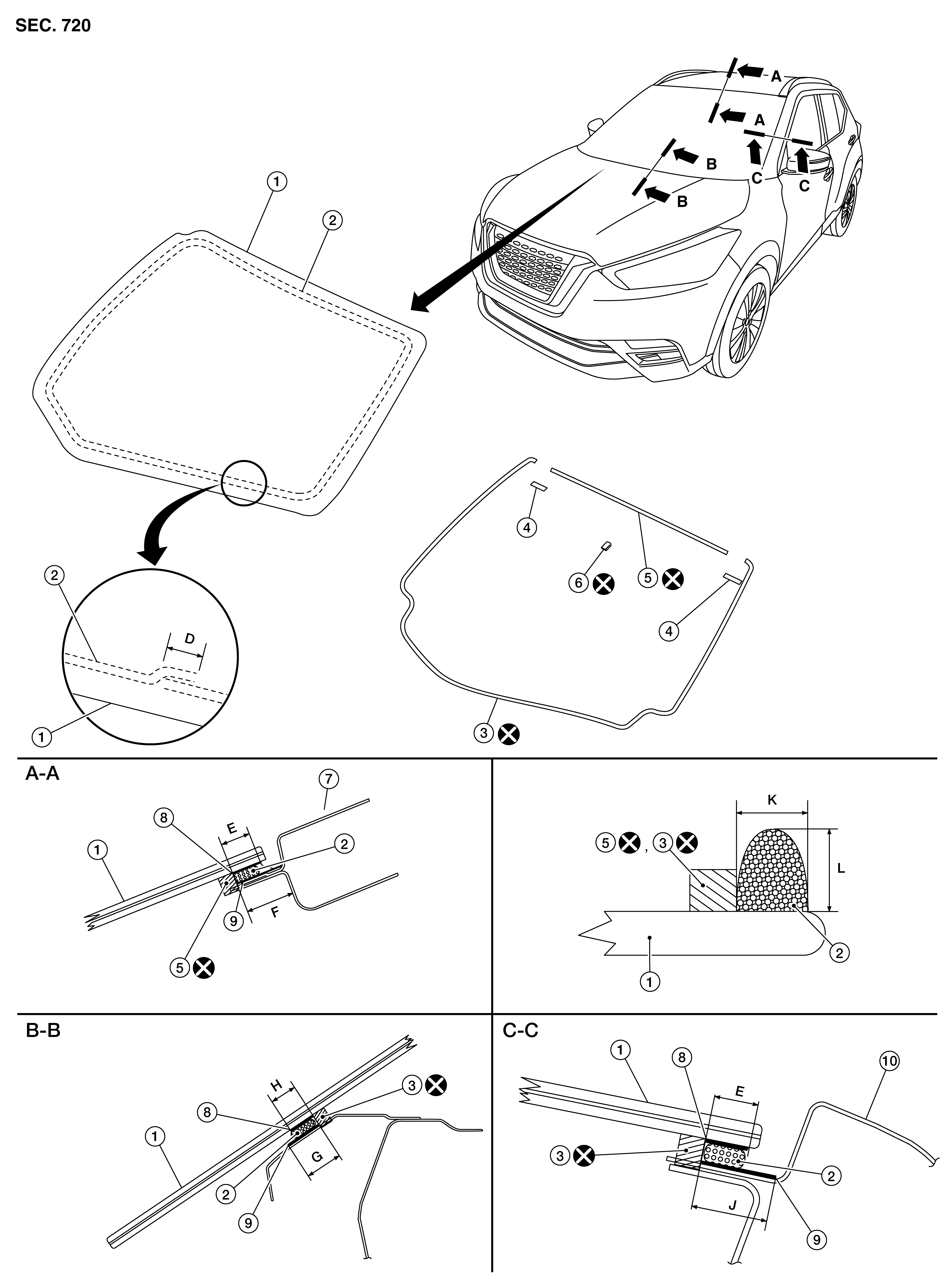

Exploded View
Unit: mm (in)
| 1. | Windshield glass | 2. | Adhesive | 3. | Dam sealant rubber (lower) |
| 4. | Spacer | 5. | Dam sealant rubber (upper) | 6. | Inside mirror base |
| 7. | Roof panel | 8. | Glass primer | 9. | Body primer |
| 10. | Body side outer panel | D. | 30 mm (1.18 in) | E. | 10.0 -13.0 mm (0.4 - 0.5 in) |
| F. | 17.0 -21.0 mm (0.6 - 0.8 in) | G. | 19.0 mm (0.7 in) | H. | 13.0 mm (0.5 in) |
| J. | 17.0 -23.0 mm (0.7 - 0.9 in) | K. | 7 + 2, - 0 mm (0.28 + 0.08, - 0 in) | M. | 12 + 2, - 0 mm (0.47 + 0.08, - 0 in) |
