Chassis Control Warning
DESIGN/PURPOSE
The warning message is displayed on the information display when "Chassis Control" detected the system malfunction.
| Design | Warning message |
|---|---|
| - | Chassis Control System Error. See Owner's Manual |
SYNCHRONIZATION WITH MASTER WARNING LAMP
Applicable
SYNCHRONIZATION WITH WARNING CHIME
Not applicable

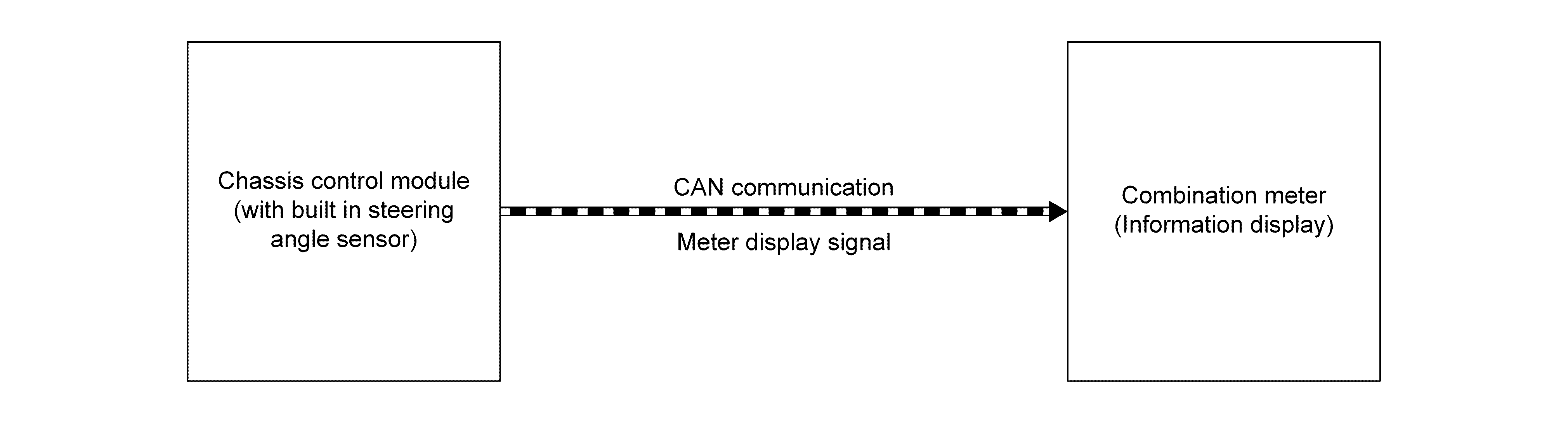

SYSTEM DIAGRAM
SIGNAL PATH
Intelligent Trace Control Function
- The chassis control module (with built in steering angle sensor) transmits the meter display signal to the combination meter via CAN communication.
- The combination meter shows the chassis control warning on the information display, according to the signal.
Active Ride Control Function
- The chassis control module (with built in steering angle sensor) transmits the meter display signal to the combination meter via CAN communication.
- The combination meter shows the chassis control warning on the information display, according to the signal.
WARNING DISPLAY CONDITION
When all of the following conditions are satisfied.
- Ignition switch ON
- Chassis control system malfunction is detected. Refer to DTC Index .
