Exploded View

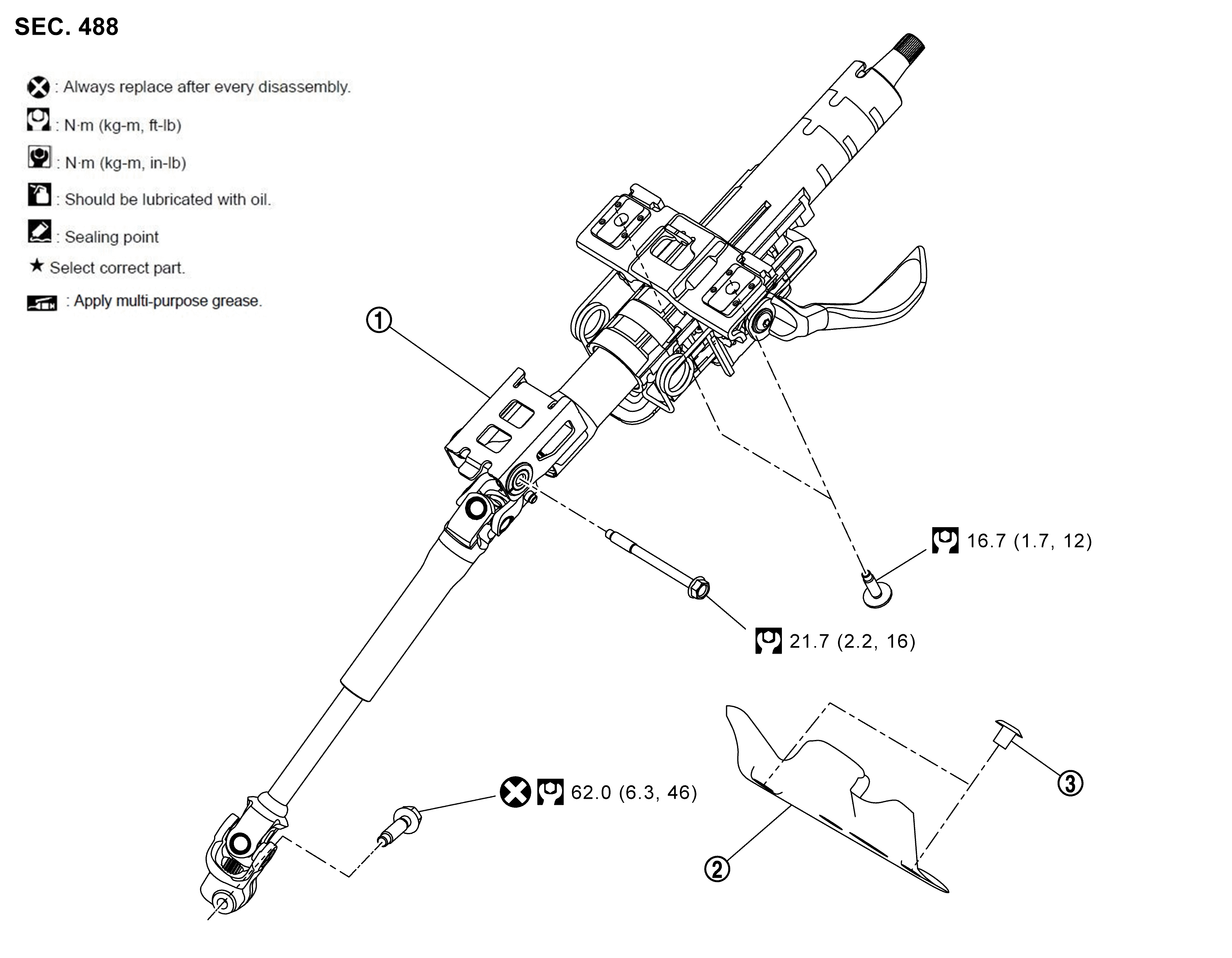

Fig 1: Steering Column With Torque Specifications
GNSILL0341670Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Steering column assembly

SYMBOL

Steering shaft lower cover

SYMBOL

Clip

SYMBOL

: N.m (kg-m, ft-lb)

SYMBOL

: Always replace after every disassembly.
