Component Location

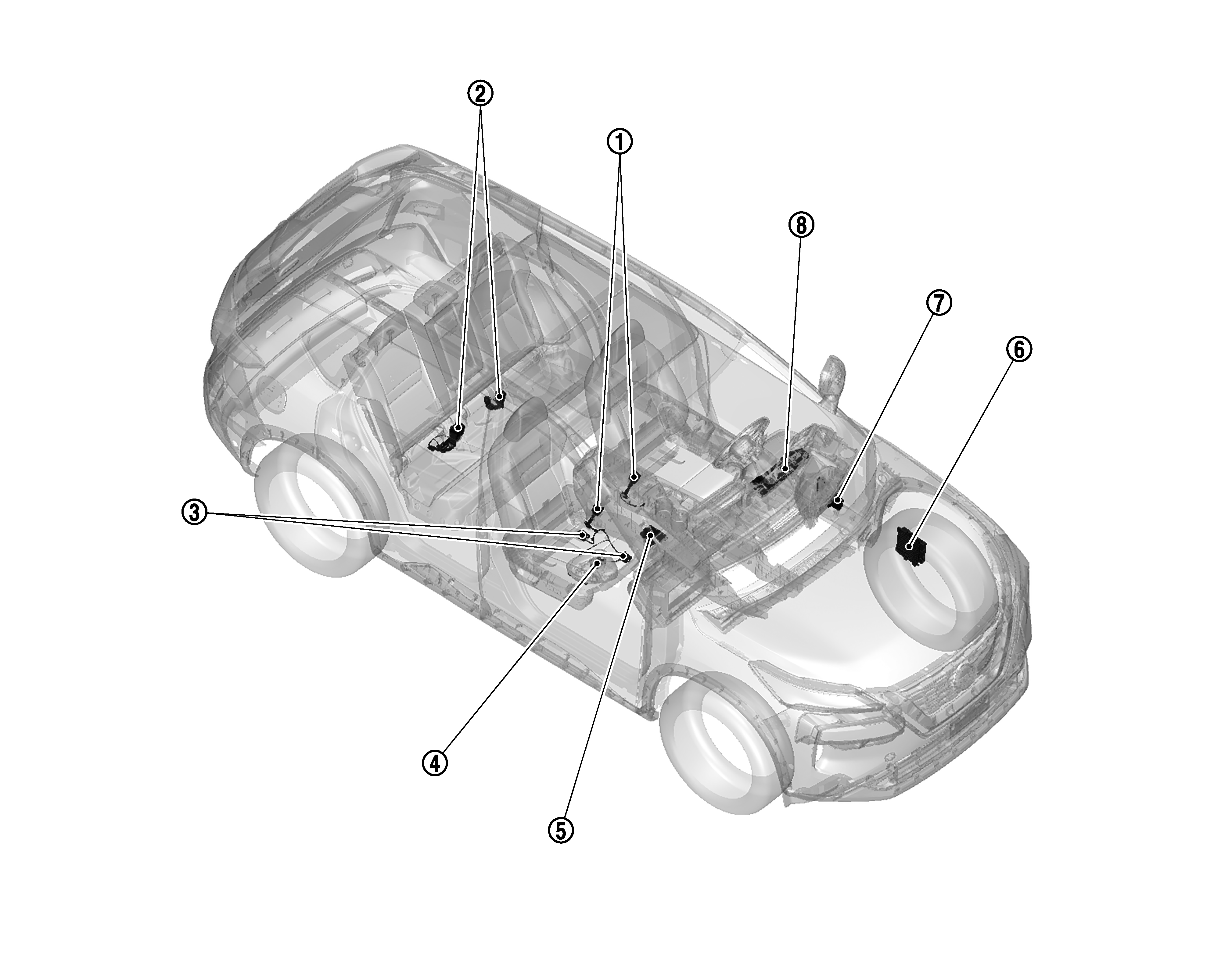

GNSILL0309434Courtesy of NISSAN NORTH AMERICA, INC.

No.

Component

Function

1.

Front seat belt buckle switch LH

Refer to Seat Belt Buckle Switch .

Front seat belt buckle switch RH

2.

Rear seat belt buckle switch LH

Rear seat belt buckle switch RH & CTR

3.

Occupant detection system sensor

Refer to Component Location for detailed component location.

4.

Occupant detection system control unit

5.

Air bag diagnosis sensor unit

6.

ECM (Engine Control Module)

7.

BCM (Body Control Module)

Refer to Component Location for detailed component location.

8.

Combination meter

Refer to Component Location (full TFT meter) or Component Location (7 inch information display) for detailed component location.
