Exploded View

WARNING: This page is about a different car, the 2021 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

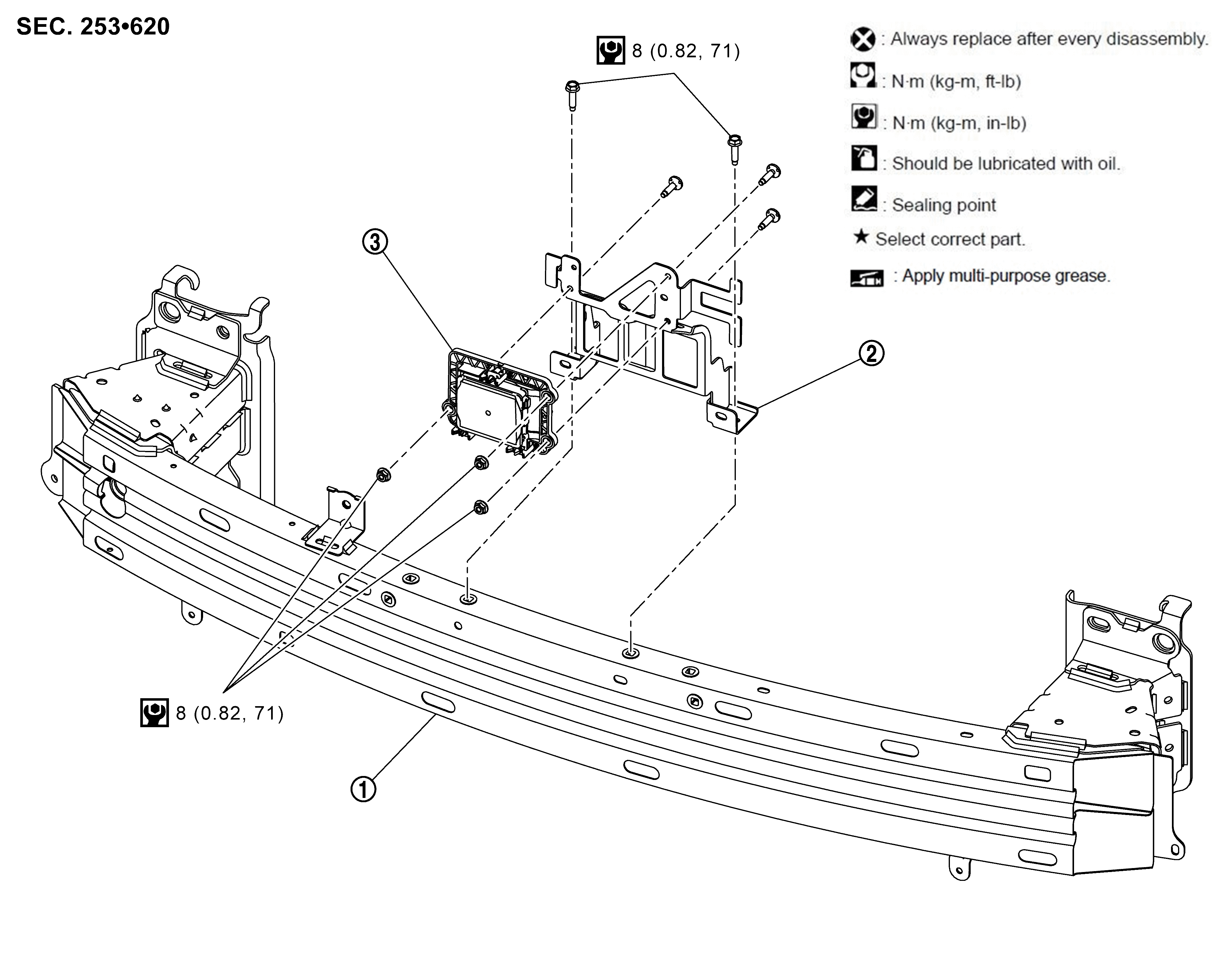

Fig 1: Distance Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Front bumper reinforcement		Distance sensor bracket		Distance sensor
	: N.m (kg-m, ft-lb)
