Removal and Installation: Removal

  1. Remove power window switch finisher. Refer to Removal and Installation .
  2. Remove power window main switch fixing screws SYMBOL , and then remove power window main switch SYMBOL from power window switch finisher SYMBOL .

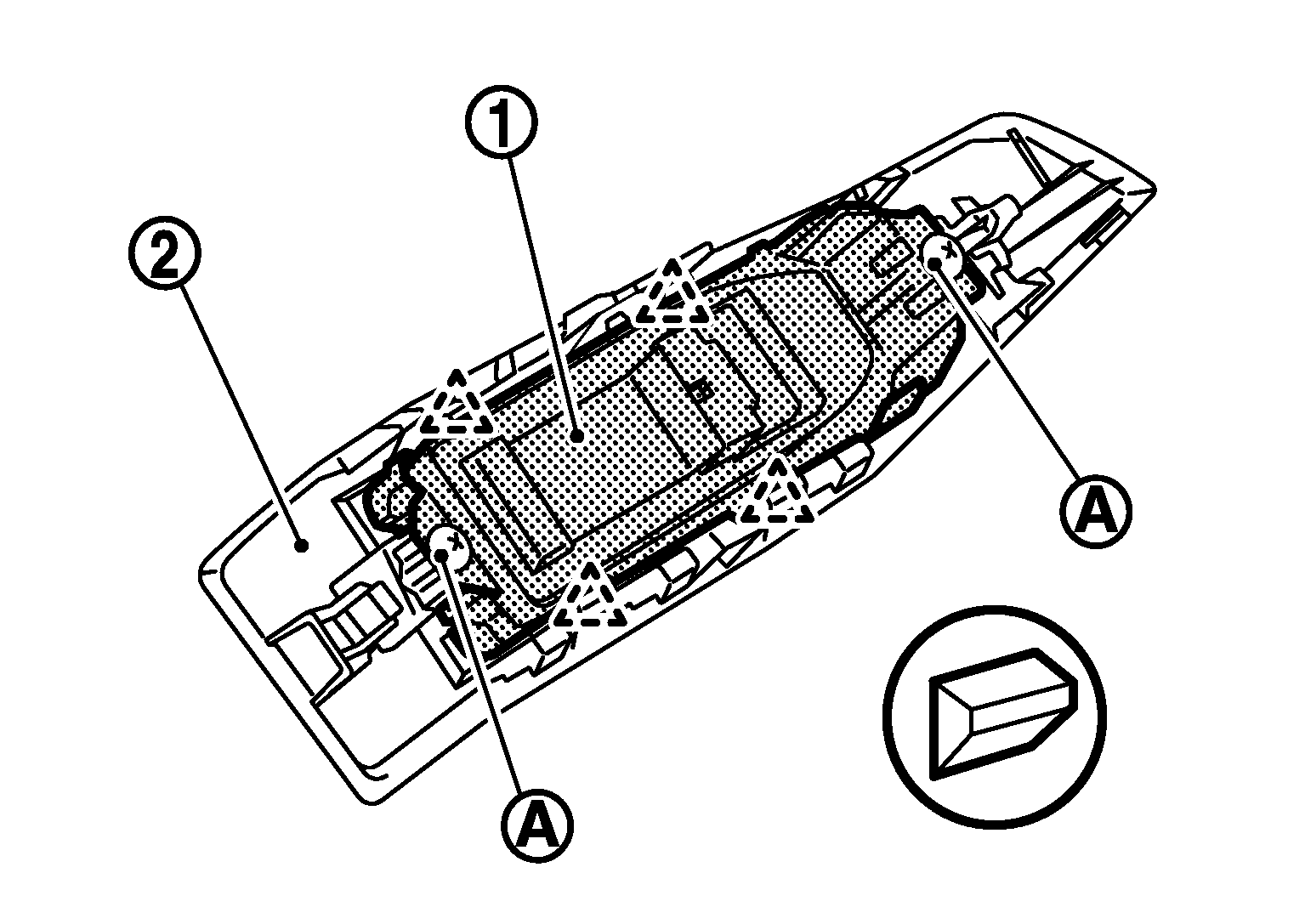

    GNSILL0304646Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
