Removal and Installation: Removal

  1. Remove cluster lid C. Refer to Removal and Installation .
  2. Disconnect harness connector from push-button ignition switch.

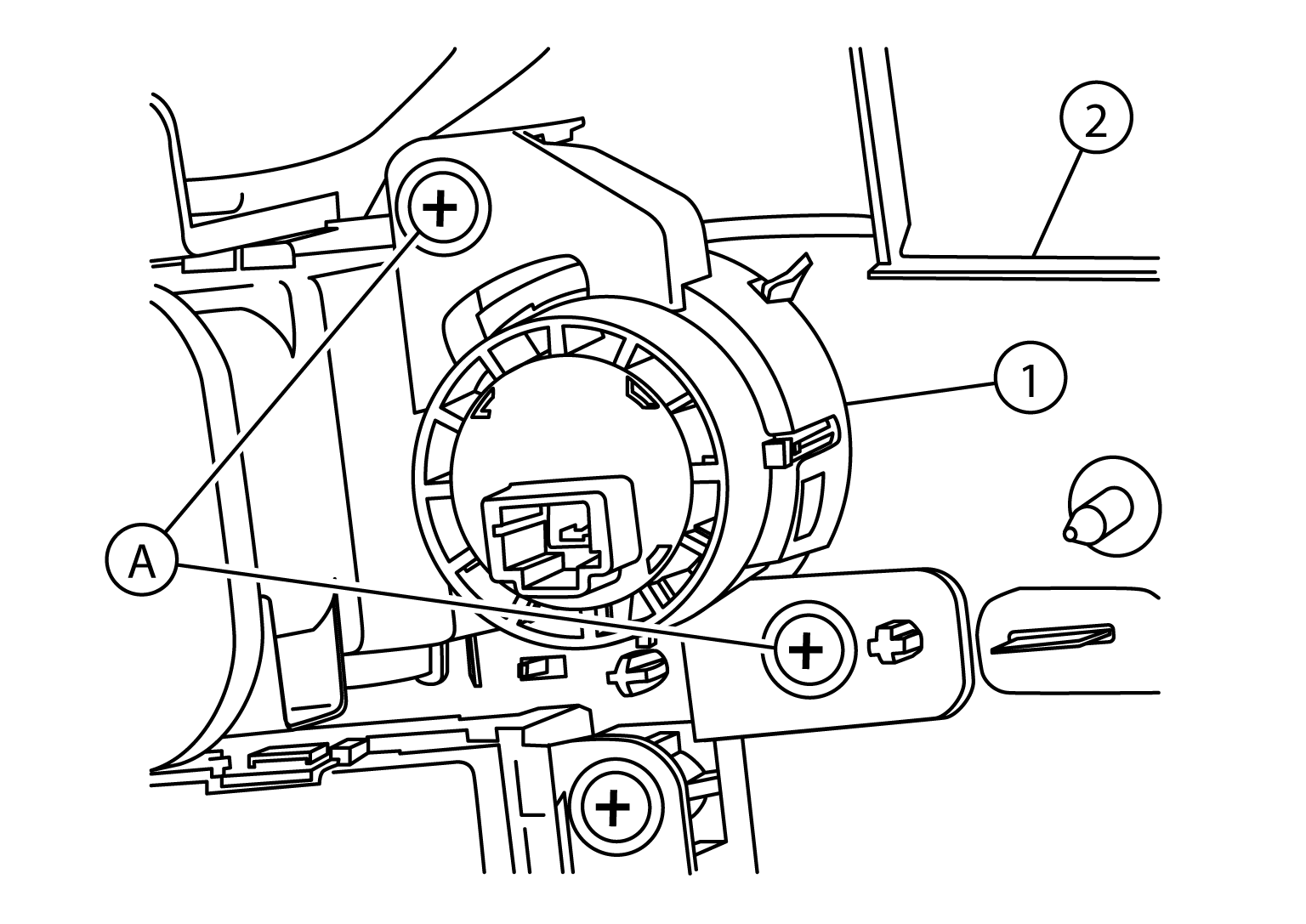

  3. Remove push-button ignition switch bracket (1) screws (A) from instrument finisher B (2).
    GNSALMIA0501Z-501Courtesy of NISSAN NORTH AMERICA, INC.

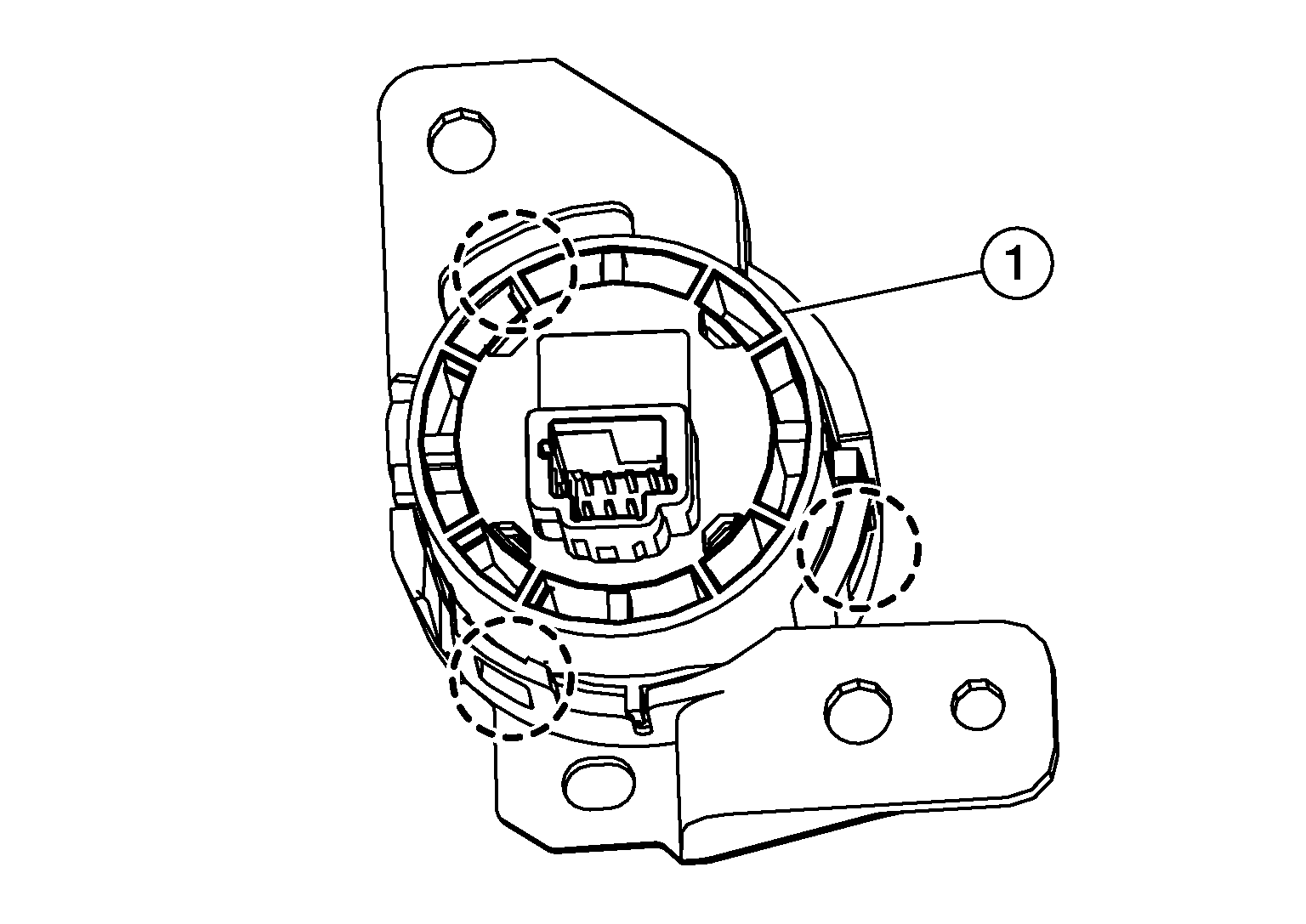

  4. Using a suitable tool, release pawls then remove push-button ignition switch (1) from push-button ignition switch bracket.
    GNSDB115786Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
