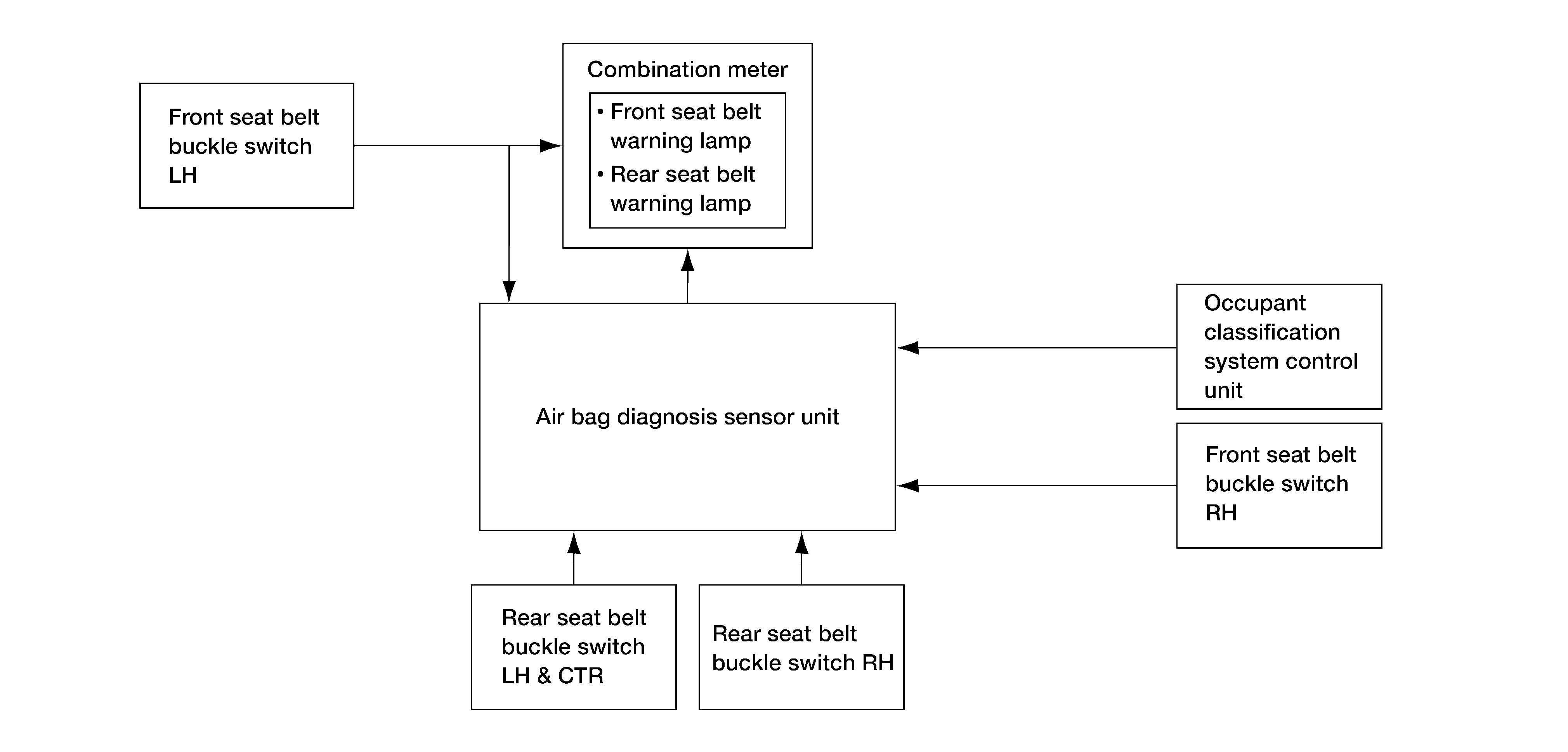

System Diagram

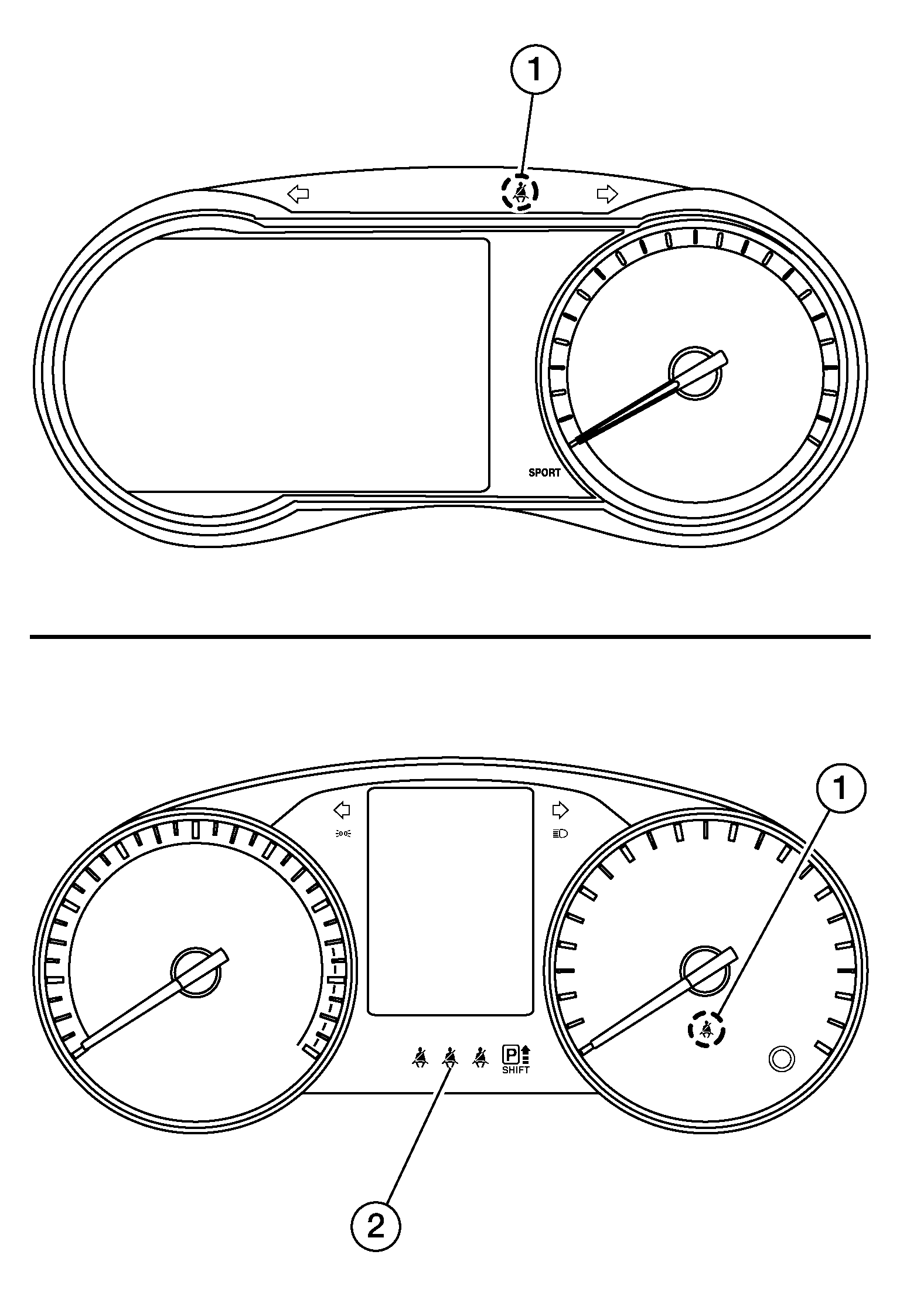

The front seat belt warning lamp (1) or rear seat belt warning lamp (2) will remind the driver if the driver, front passenger or rear seat belt should be buckled. The system works in conjunction with the occupant classification system. Refer to System Description .
Front Seat Belt Warning System Operation
|
Front seat belt buckle switch LH status (Ignition switch ON) |
Front seat belt buckle switch RH status |
Seat belt warning lamp |
|
Buckled |
Buckled |
Off |
|
Unbuckled |
On |
|
|
Unbuckled |
Buckled |
On |
|
Unbuckled |
On |
Rear Seat Belt Warning System Operation
|
Rear seat status |
Rear seat belt buckle switch LH status |
Rear seat belt buckle switch RH status |
Rear seat belt buckle switch CTR status |
Seat belt warning lamp |
|
Seat occupied |
Buckled |
Buckled |
Buckled |
Off |
|
Unbuckled |
Unbuckled |
Unbuckled |
On |
|
|
Seat unoccupied |
Buckled |
Buckled |
Buckled |
Off |
|
Unbuckled |
Unbuckled |
Unbuckled |
On |
