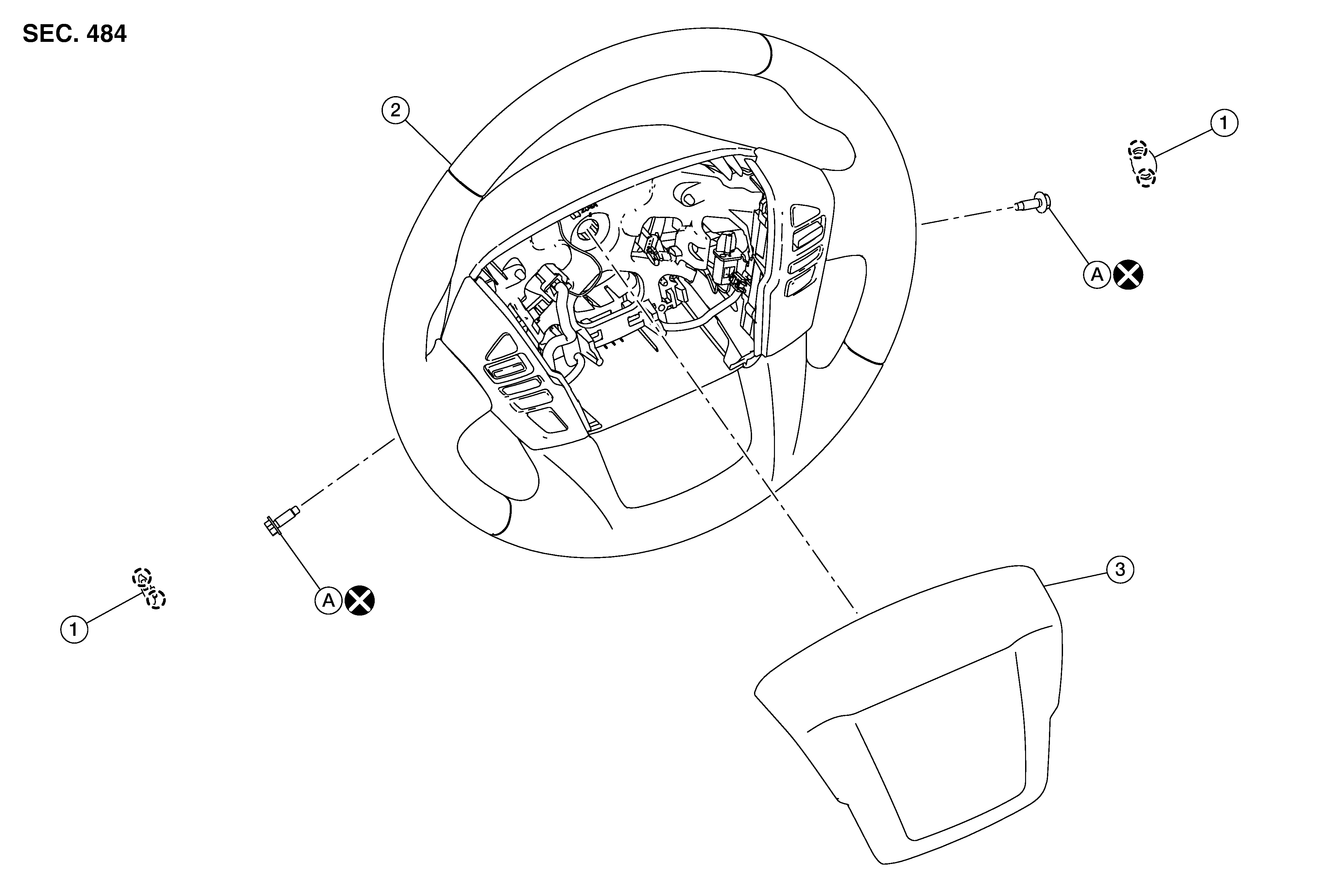

Exploded View

GNSALHIA0798Z-798Courtesy of NISSAN NORTH AMERICA, INC.

1.

Side lid

2.

Steering wheel

3.

Driver air bag module

A.

Refer to Removal and Installation .

SYMBOL

Pawl
