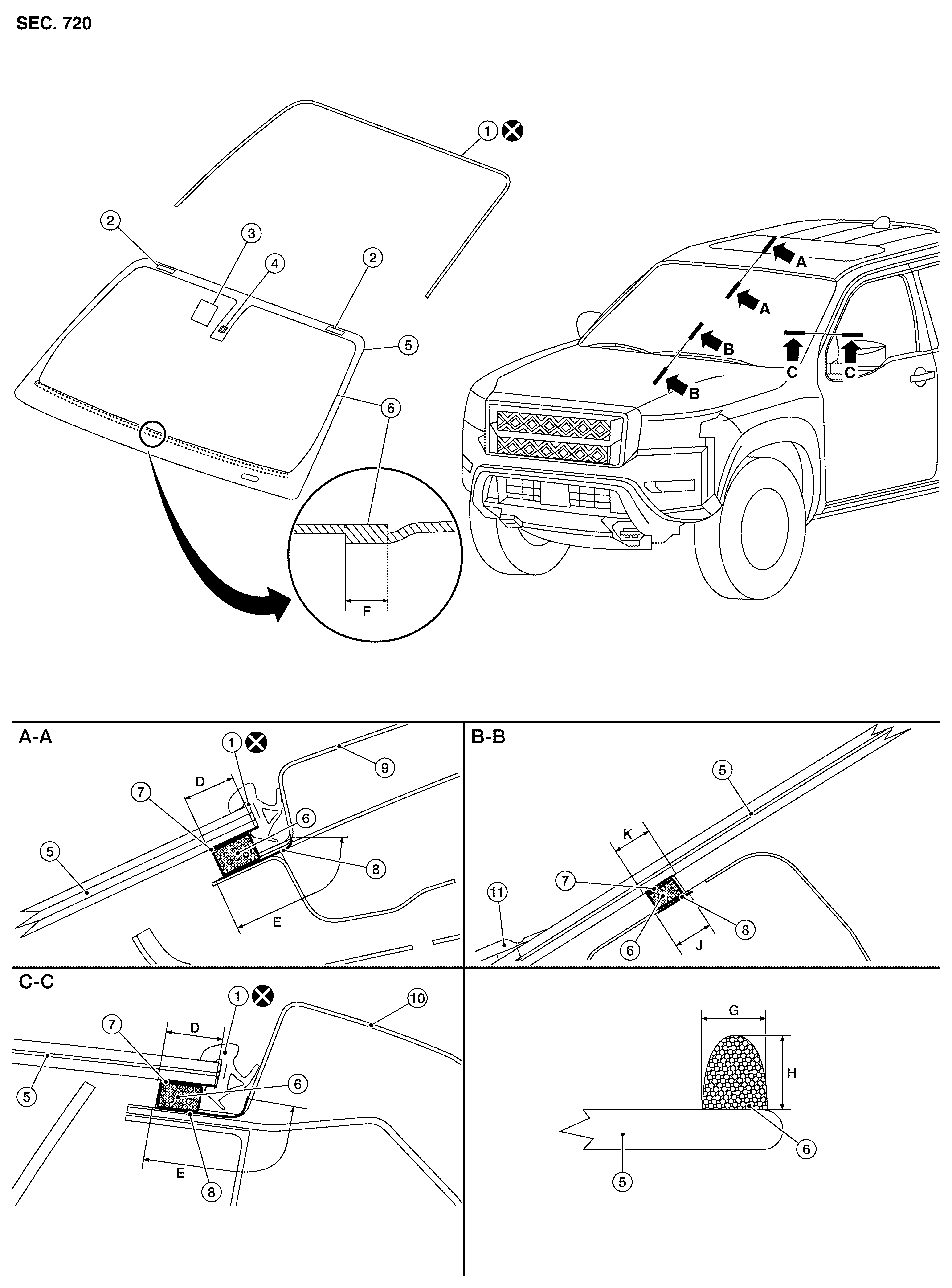

Exploded View

1.

Windshield glass molding

2.

Spacer

3.

Front camera unit bracket (if equipped)

4.

Mirror base

5.

Windshield glass

6.

Adhesive

7.

Glass primer

8.

Painted surface primer

9.

Roof panel

10.

Body side outer

11.

Cowl top cover

D.

14 mm (0.6 in)

E.

22 mm (0.87 in)

F.

120 mm (4.7 in)

G.

7 mm +2, -0 mm (0.28 in +0.08, -0 in)

H.

12 mm +2, -0 mm (0.47 in +0.08, -0 in)

J.

19 mm (0.7 in)

K.

26 mm (1.0 in)
